18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit

18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit photo-1
18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit photo-2
18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit photo-3
18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit photo-4
18.5'' External Push Button 1080p 12v dc Lcd tv Vhs Usb Video Player Circuit photo-5
US$ 126 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM ODM
Model Number:
PT185MD-6
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM ODM
Model Number PT185MD-6
Type TFT
Application Indoor
Panel Size 18.5 Inch
Max Resolution 1366*768
Viewing Angle 80/80/85/85
Pixel Pitch 248.25*248.25
Color 262k(rgb 6 bit)
Contrast Ratio 3000:1
Brightness 250cd/㎡
Response Time 8ms
Input Voltage AC: 100~240 V 50/60Hz



18.5'' external push button 1080p 12v dc lcd tv vhs usb video player circuit







Model: PT185MD-6

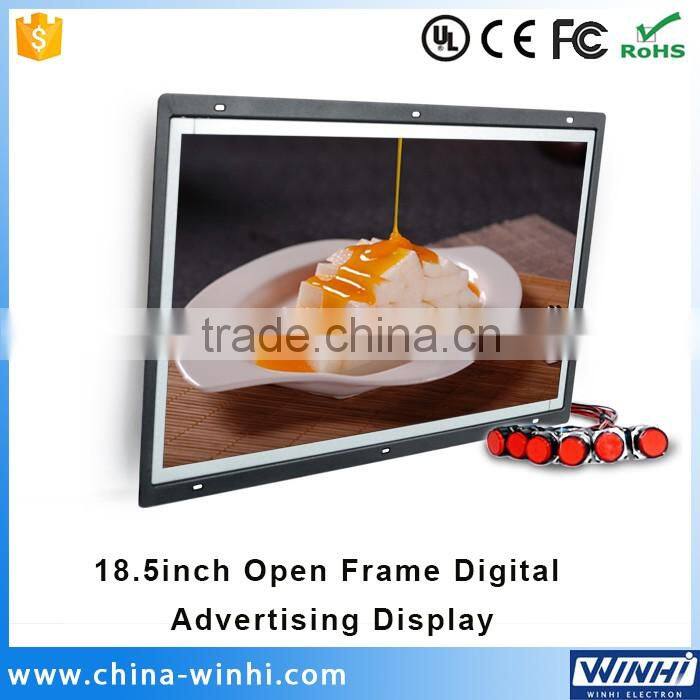

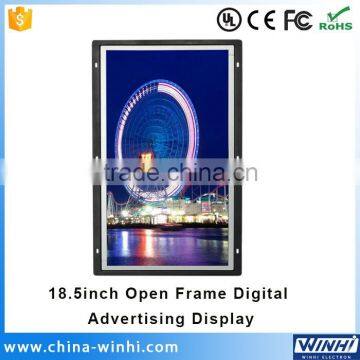

Item:18.5inch Open Frame External Button Digital Advertising Display



Product Description



 Specification



Display LCD size 18.5″ TFT LCD
Resolution   1366(x3) x 768
Pixel Pitch 248.25 (per one triad) ×248.25
Luminance      250cd/m2 (Typ.)
Contrast  Ratio   3000 (Typ.)
Viewing Angle  80/80/85/85

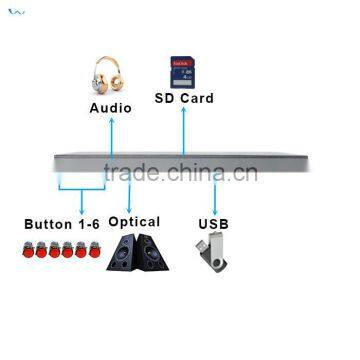

I/O Integrated Speakers out StereoL/R, 5W x 2, 8Ω (optional)
3.5 mm Earphone out yes
Digital optical out yes
Power(work mode) 60W TYP
Player Input 12V

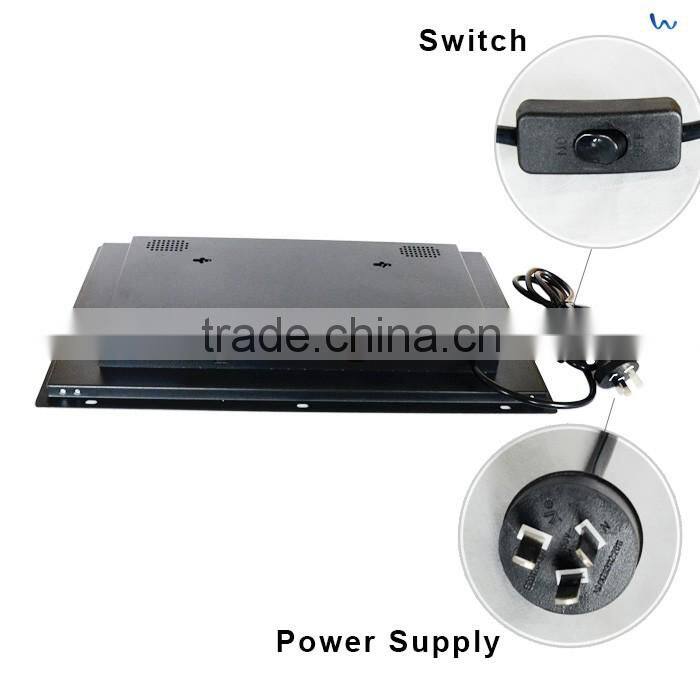

Adaptor Input: AC  100~240 V   50/60Hz
Output: DC 12V  5A

Supported Card

& Format

Interface MMC/SD/USB(2.0)
Photo JPEG, BMP
Video

MP4, AVI, DIVX, XVID, VOB, DAT,

MPG, MPEG, RM, RMVB, MKV, MOV,

 HDMOV, M4V, PMP, AVC, FLV, H.264

Audio

MP3, WMA, OGG, AAC, AC3, DTS, FLAC,

 APE

Other Shell Color Black
Accessories Adapter, remote control, user manual
Operating temperature 0°C~ 40°C (32℉~104℉)





 Feature

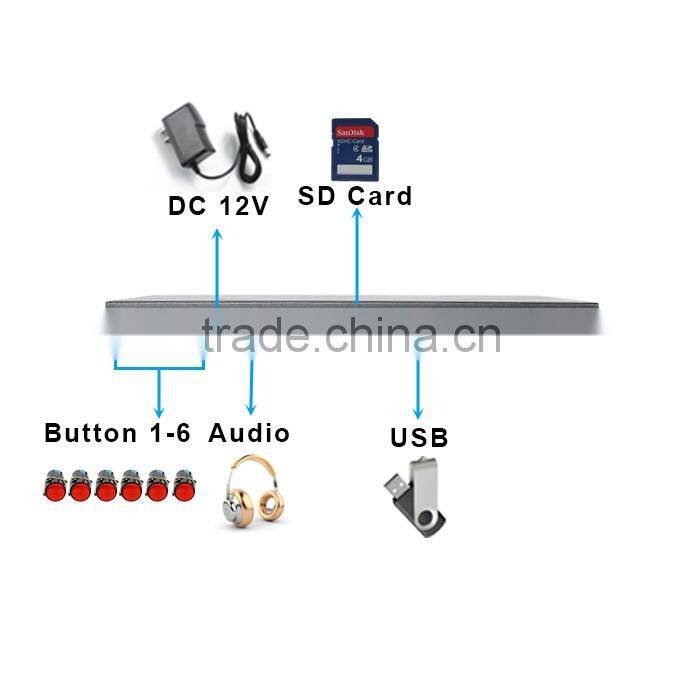

It supports at most 6 buttons. You can setup 5 file folders (folder 00, 01, 02, 03, 04) in the

 memory card. Folder 00 is played as homepage. If you push either button, it will play the

files in the corresponding folder, when this folder is finished, it will turn to loop play the files

 in folder 00.
For example, if you press button "k1", it will play files in folder 01. And if you press button

"k1" again during the process of play, it will replay from the first file in folder 01. When it

finished playing files in folder 01, it will turn to loop play files in folder 00. If you press button

 "k2" during the process of playing files in folder 01, it will turn to play files in folder 02.
If no button being pressed it will loop play the files in folder 00.
Button K5 and K6 control volume(K5 controls "vol-" / K6 controls "vol+").

Metal frame
Support real 1080P HD decode
Support digital optical out
Support 3.5 mm Earphone out
Support User-define button function
Support multi language OSD
Full function remote control, easy operation

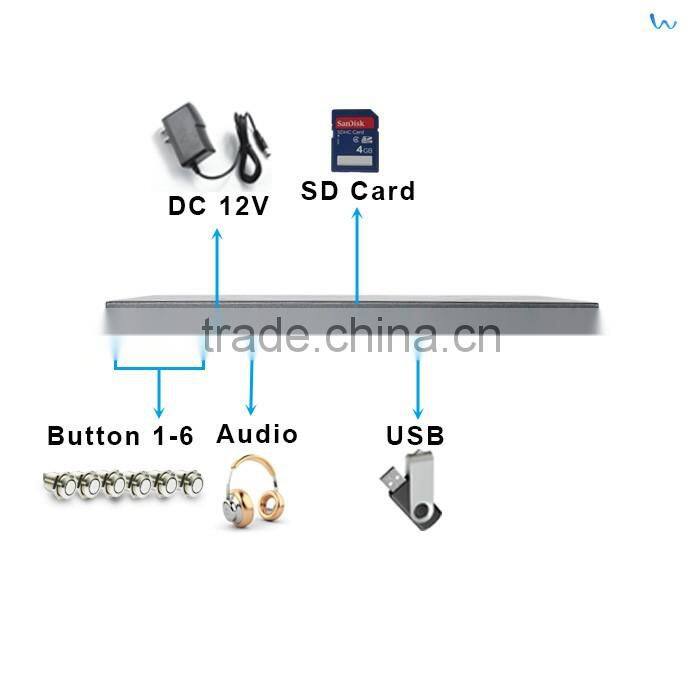

There are two options for the external button: 1. common plastic button.  2. flickering LED button
The above same functions can also be applied to 10"-46" ad players
Our professional R&D team can customize personalized products for you.
