Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Other Exhibition and Advertising Equipment > Hot Sale 10 Inch 6 Pcs Buttons Full hd Open Frame Tft Lcd Led Monitor Advertising Display
Hot Sale 10 Inch 6 Pcs Buttons Full hd Open Frame Tft Lcd Led Monitor Advertising Display
US$ 90 - 105
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM ODM
Model Number:
PT101MD-6(Button HD Advertising Display)
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15 Inch 1366x768 Led Digital Advertising Player Flexible Lcd DisplayUS$ 120 - 180MOQ: 1 Piece -
High Definition High Contrast Low Power Consumption DC 12 Volt Taxi LED Monitor Video Player 9 Inches Monitor VGAUS$ 70 - 105MOQ: 50 Pieces
-
Manufacture Guarantee 100% 1024 x 600 16:9 CE FCC RoHS MINI Portable 10 Inch Computer MonitorUS$ 65 - 95MOQ: 10 Pieces
-
15.6" Tft Lcd Display 16:9 Open Frame Full hd Vga Metal Case Monitor Lcd Monitors DisplayUS$ 90 - 130MOQ: 1 Piece
-
Cheap Resolution 1024*600 7'' Memory Card Video Player Mini Lcd Portable Dvd Player 7 Inch LcdUS$ 50 - 70MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM ODM
Model Number
PT101MD-6(Button HD Advertising Display)
Type
TFT
Application
Indoor
Panel Size
10.1inch 16:9
Max Resolution
1280x800
Viewing Angle
160°(CR>5)
Pixel Pitch
0.0925*0.276
Color
262k(rgb 6 bit)
Contrast Ratio
500:1
Brightness
350cb/m
Response Time
8msec
Input Voltage
110-220v, < 9W TYP
Hot sale 10 inch 6 pcs buttons full hd open frame tft lcd led monitor advertising display
Product Description
Model: PT101MD-6

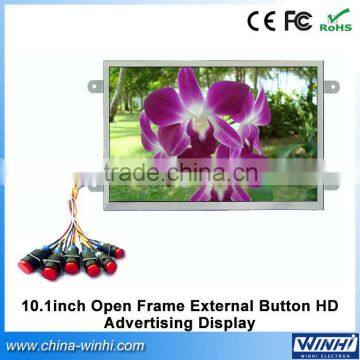

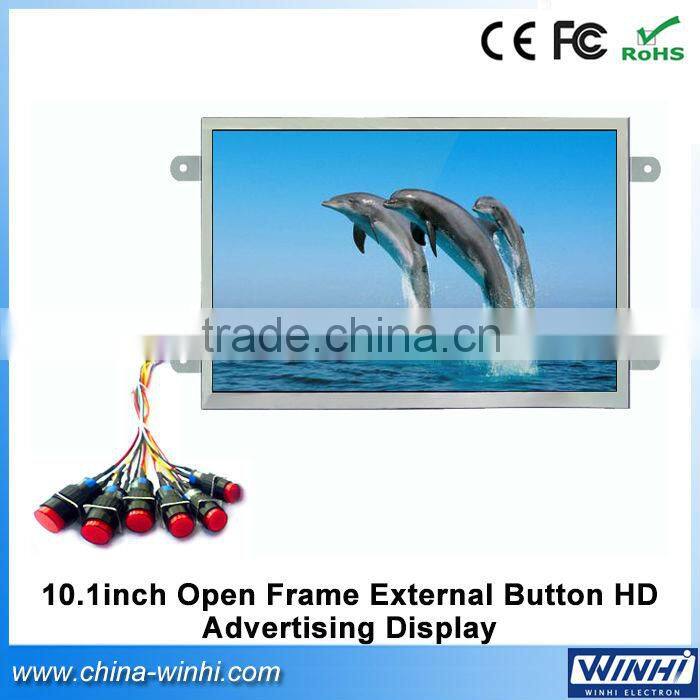

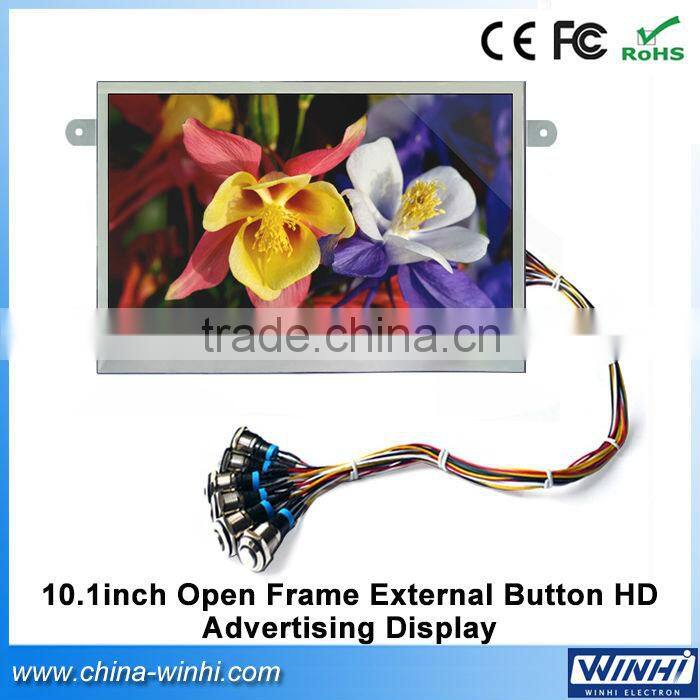

Item: 10.1inch Open Frame External Button HD Advertising Display
1. Various appearances at your choice.
2. Size can customized according to you
|
It supports at most 6 buttons. You can setup 7 file folders (folder 00, 01, 02, 03, 04, 05, 06) in the memory card. Folder 00 is played as homepage. If you push either button, it will play the files in the corresponding folder, when this folder is finished, it will turn to loop play the files in folder 00. For example, if you press button "k1", it will play files in folder 01. And if you press button "k1" again during the process of play, it will replay from the first file in folder 01. When it finished playing files in folder 01, it will turn to loop play files in folder 00. If you press button "k2" during the process of playing files in folder 01, it will turn to play files in folder 02. If no button being pressed it will loop play the files in folder 00. The button K5,K6 can be changed to control the volume(vol-/vol+). | ||

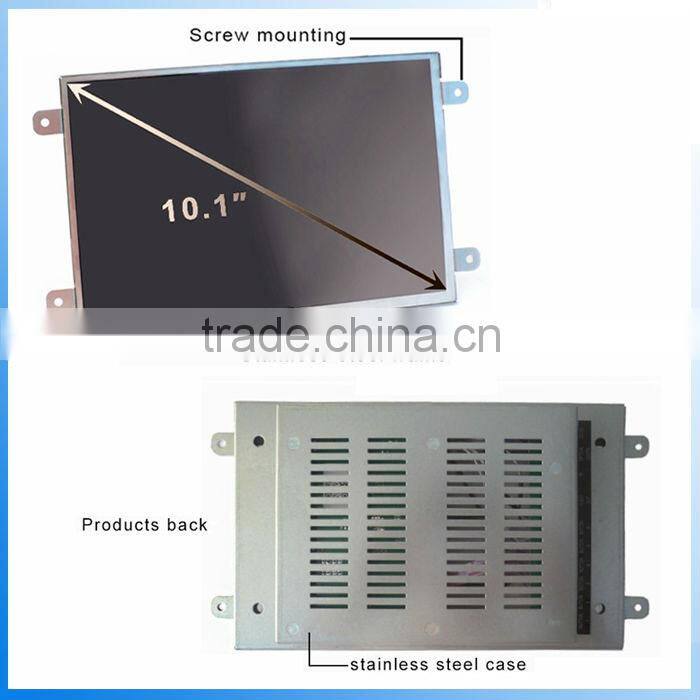

| Metal frame | ||
| Support real 1080P HD decode | ||
| Support digital optical out | ||
| Support 3.5 mm Earphone out | ||
| Support User-define button function | ||
| Support multi language OSD | ||
| Full function remote control, easy operation | ||
| There are two options for the external button: 1. common plastic button. 2. flickering LED button | ||
| The above same functions can also be applied to 10"-46" ad players | ||
| Our professional R&D team can customize personalized products for you. |
|
Successful Application for your reference(pls contact our salesperson): after 20s will go back to homepage files. If button #1 is pressed while paused, playback will continue. video #2. If button pushed when playing video #2 go to homepage files. |
| Display | LCD size | 10.1″LED screen(16:9) |
| Resolution | 1280x800 | |
| Luminance | 350cd/m² | |
| Contrast Ratio | 500:1 | |
| Viewing Angle | 160°(CR›5) | |

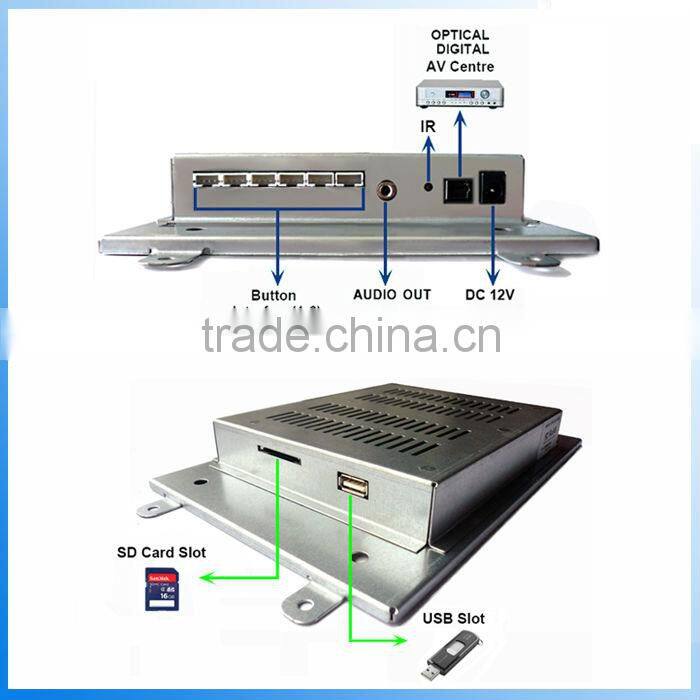

| I/O | Integrated Speakers out | StereoL/R, 2W x 2, 8Ω (optional) |
| 3.5 mm Earphone out | yes | |
| Digital optical out | yes | |
| Power(work mode) | < 9W TYP | |
| PT101 input | 12V | |
| Adaptor |
Input: AC 100~240 V 50/60Hz Output: DC 12v 1.5A |
|

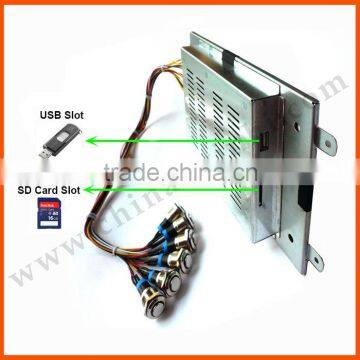

| Supported Card & Format | Interface | SD(HC)/USB(2.0) |
| Photo | JPEG, BMP | |
| Video | MP4, AVI, DIVX, XVID, VOB, DAT, MPG, MPEG, RM, RMVB, MKV, MOV, HDMOV, M4V, PMP, AVC, FLV, H.264 | |
| Audio | MP3, WMA | |
| Other | Shell Color | Galvanized sheet |
| Accessories | Adapter, remote control | |
| Operating temperature | 0°C~ 40°C (32°F~104°F) |
