Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control

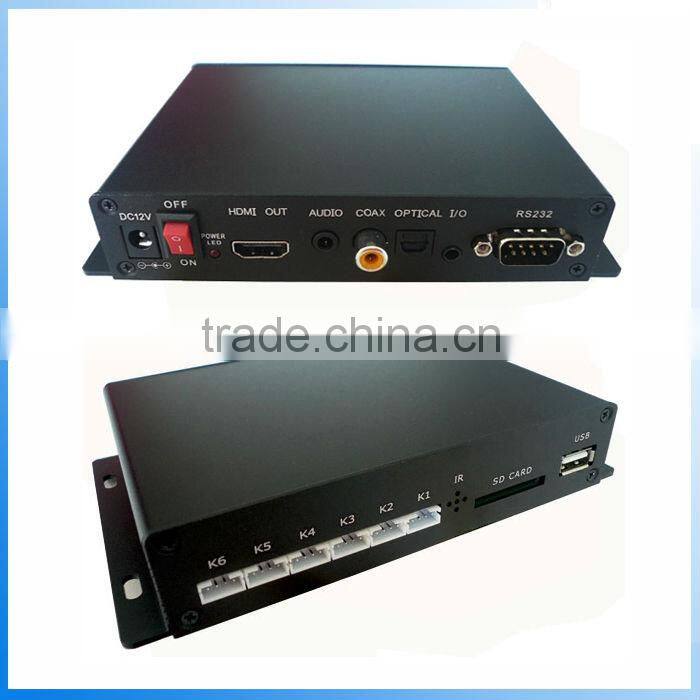

Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control photo-1
Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control photo-2
Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control photo-3
Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control photo-4
Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External Multimedia Player With HDMI Output Micro Switch Control photo-5
US$ 50 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
MPC1005-12(MS)
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number MPC1005-12(MS)
Type Other, Media player
Application Indoor
Panel Size -
Max Resolution 1920*1080
Viewing Angle -
Pixel Pitch -
Color -
Contrast Ratio -
Brightness -
Response Time 5ms
Input Voltage AC110-240V



Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch Control







Product Description



Model: MPC1005-12(MS)
Item: Full HD Micro Switch Optical&HDMI output RS232 Control Media Player





Features:



Working mode:
A. Auto-play when power on;    B. Micro Switch control display;
C. Custom control display;       D. RS232 control display

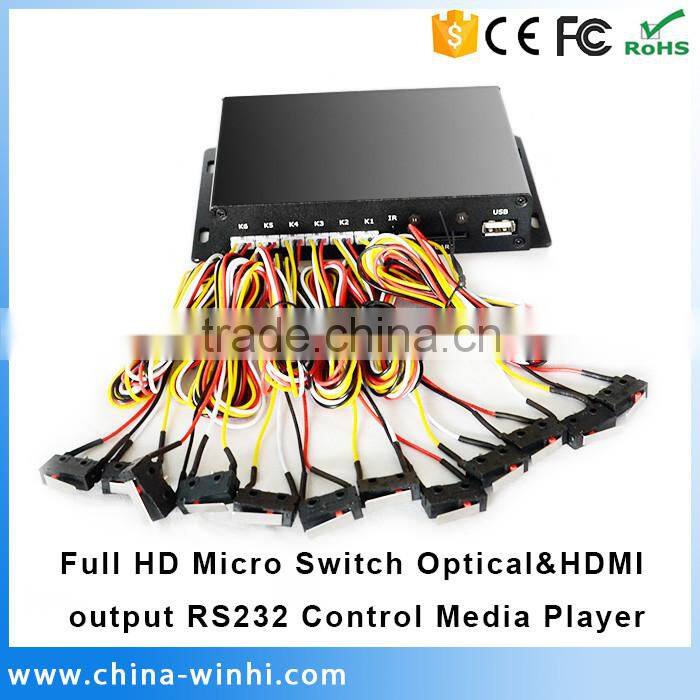

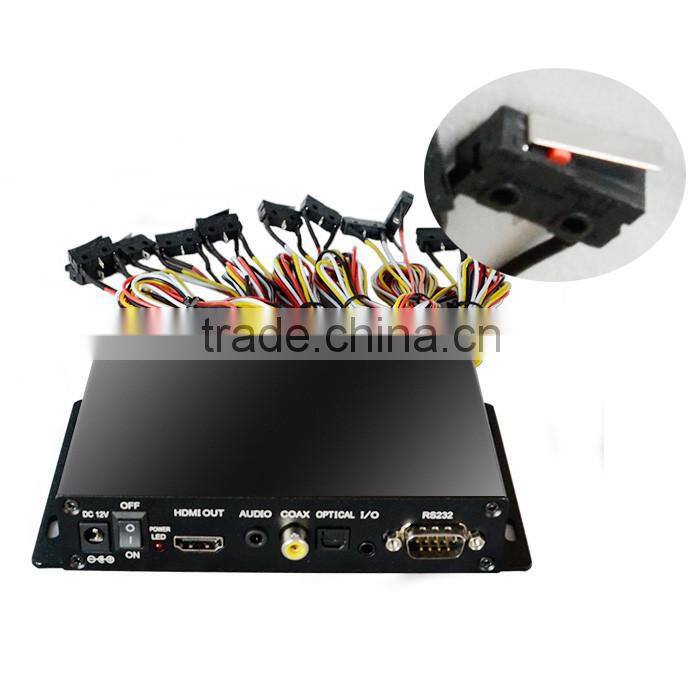

Key Option: at most 12pcs Micro Switch

You can setup 12 file folders (folder 01, 02,..., 12) in the memory card.
Files stored in root director of memory card is played as homepage. It will

auto loop play homepage files when power on. Folder 01-12 corresponds

 to micro switch K1-K12. If K1 is released, it will loop play files in folder 01.

 If the K1 is closed, it will turn to homepage files. If all switches are released

the player will not work properly.

Support optical out(digital signal output)
Ideal replacement for Blue Ray and DVD video players.
Ideal playback unit for Large LCD and Plasma display.

High Definition Information Display for Resorts, Hotels, Restaurants,

 Shopping Malls, Airports, etc.

HD Video player for Museums and Science Center exhibits.
HD Video player for Interactive travelling exhibit.
HD Video information system for Theme Parks, Go-Kart tracks, Family Fun Parks.
Support real 1080P HD decode and HDMI output
Homepage files will auto play and loop play
Support multi language OSD
Support 10 kinds of slide transition modes
Full function remote control, easy operation
Metal shell





Specifications:



Supported Card & FormatVideo codecs supported

MPEG1/2/4,H.264,AVC,VC1,WMV,RM/

RMVB,DivX3/4/5/6,Xvid3/4/5/6

Video formats supported

RM/RMVB,AVI,TS,M2TS,MTS,MKV,MOV,

FLV,DVD-ISO,BD-ISO,VOB,MPG,DAT,

ASF,TP,TRP,WMV,IFO,SWF,3GP,EVO,

DIVX,MP4,OGM

Audio codecs supported

HE, LPCM, AC3, DTS, DTS-HD MA

(DTS output can be down-mixed),

Dolby Digital AC3 5.1, stereo

Audio formats supported

MP3,WMA,WAV,OGG,FLAC,AAC,LC-AAC

,APE(Under 128KHz)

Image formats supportedJPEG,BMP,GIF,PNG,TIFF
Subtitle formats supportedSRT,SMI,SUB,SSA,IDX+SUB
Storage supportedSD/USB Device: 2.0 high speed

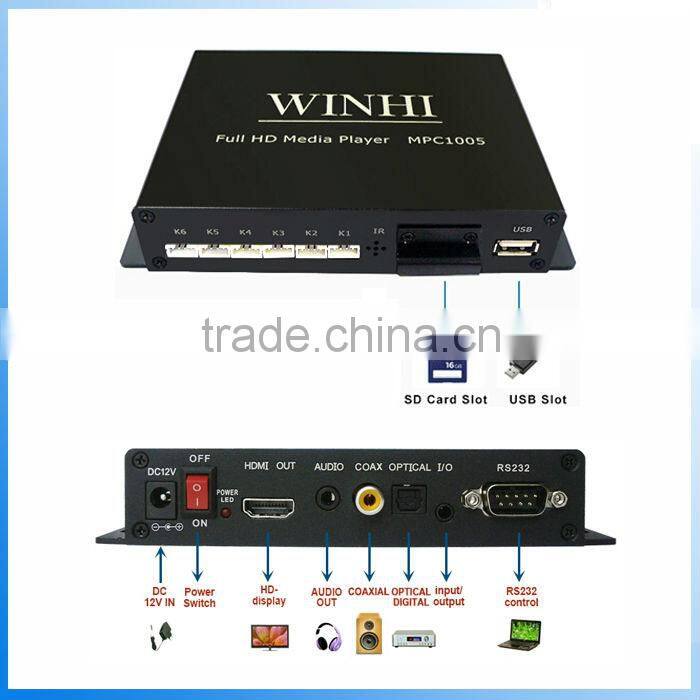

Interface

USB, SD, HDMI OUT, COAX, AUDIO

OUT,  I/O, OPTICAL OUT, MICRO

SWITCHINTERFACE, RS232

I/OHDMI Outputsupport 1920*1080P
Audio output2V±0.2V (10KMetal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch Control Load); S/N ≥85dB
AC Power InputAC: 100~240 V
DC Power Output12V / 1.5A
OtherOperating temperature0°C~ 40°C (32oF~104oF)
Shell colorBlack



Pictures:



Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch ControlMetal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch Control

 Metal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch ControlMetal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch ControlMetal Shell Full HD 1080P SD/U Disk HDD Media Player USB External multimedia player With HDMI Output Micro Switch Control
