14" UART HD RS232 Function Bus 12V DC LED TV Panel

US$ 90 - 135 MOQ: 50 Pieces

Key Specifications

Brand Name:

OEM

Model Number:

PT140MD-RS232

Type:

LCD, mini flat screen tv

Ningbo Winhi Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO PORT

Delivery Detail:

Delivery time depends on order quantity.

Brand Name OEM

Model Number PT140MD-RS232

Backlight Type LED

Wide Screen Support Yes

Display Format 1080P (Full-HD)

Use Portable TV

Cabinet Color White

Place of Origin Zhejiang, China

14" UART HD RS232 Function Bus 12V DC LED TV Panel

Model: PT140MD-RS232

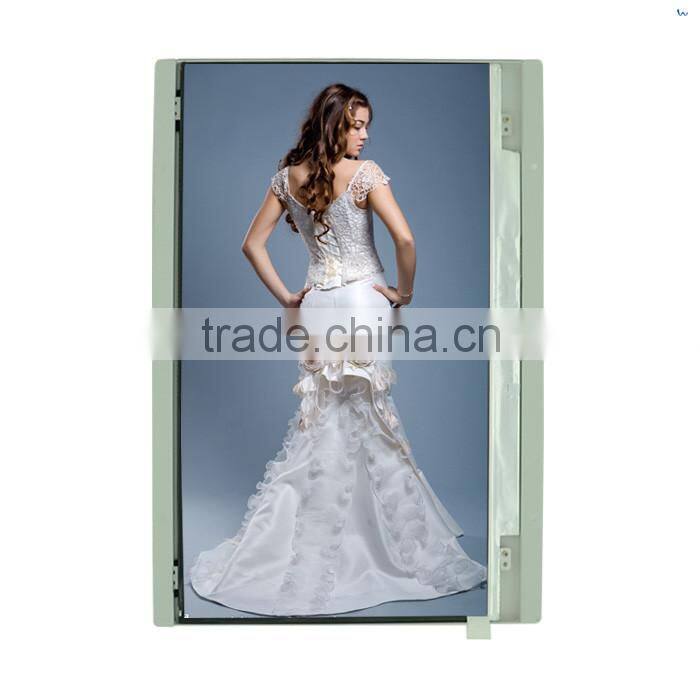

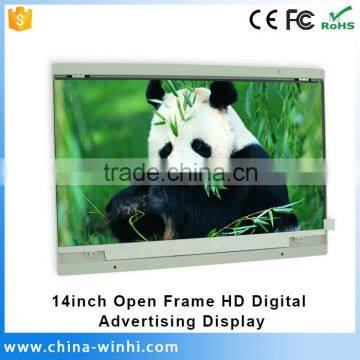

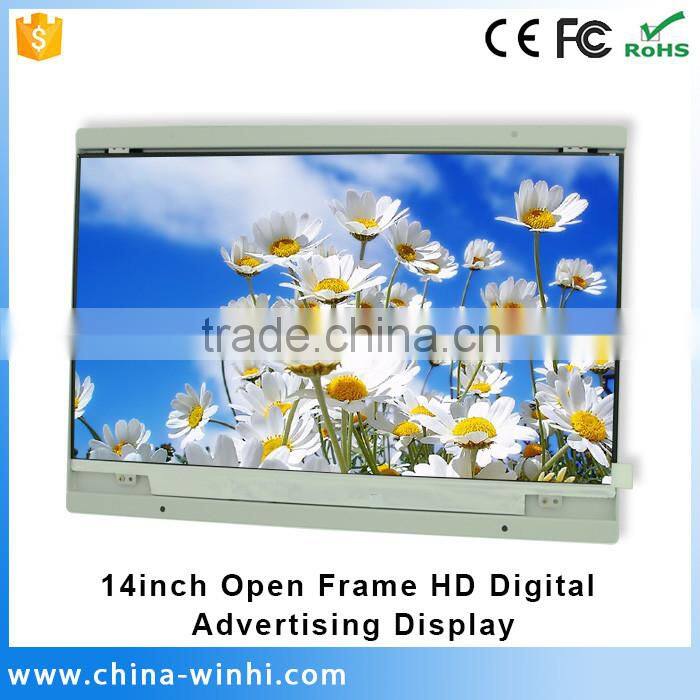

Item: 14inch Open Frame UART HD Digital Display

1. Various appearances at your choice.
2. Size can customized according to you

Product Description

Feature

RS232 Function: You can realize the file switching and volume setting by sending UART Command from a PC/RS232 device. 1. Name the files 00-99, the homepage file is 00. 2. Format for play file is "$COM_01#". For example, play file 01, send command "$COM_01#". 3. Format for volume setting is "$COM.50#". For example, volume to be 50, send command "$COM.50#", valid value is 0-99.
Support single repeat, all repeat
Support 1080P HD decode
Auto-play when turned on with the SD/USB inserted
Select the picture slide effect to be “ON” or “OFF”.
Select and set the min volume of player, value: 0-100.
Support Rolling Caption
Super time switch function, it can auto turn on/off at a specific time
One key copy: USB->SD(Default model), SD->USB
Slideshow time can be set up by yourself
It can show the clock
Full function remote control, easy operation
Multi-Language OSD: English, Espaol, FRANCAIS, Italiano, Portuguese, Deutsch, Russian

Specification

Display	LCD size	14″LED screen
	Active area	344.232(H)*193.536(V)
	Pixel Number	1366R.G.B.768
	Pixel Pitch	0.252(H)*0.252(V)
	Luminance	250cd/m²
	Contrast Ratio	500:1
	Viewing Angle	160°(CR›5)
	Respond Time	8ms
I/O	AC Power Input	AC: 100~240 V
	DC Power Output	12V / 2A
	Integrated Speakers	StereoL/R, 5W x 2, 8Ω
	Power(DPMS sleep mode)	<1W
	Power(work mode)	30W TYP
Supported Card & Format	Interface	SD/USB(2.0)
	Photo	JPEG,BMP,PNG
	Video	H.264, MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, DIV,TS,TRP, WMV,M2TS,MKV,RM,RMVB
	Audio	MP3,WMA
Other	Accessories	AC adapter, remote control, user manual
Other	Operating temperature	0°C~ 40°C (32℉~104℉)
