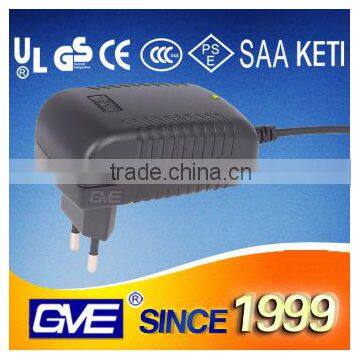

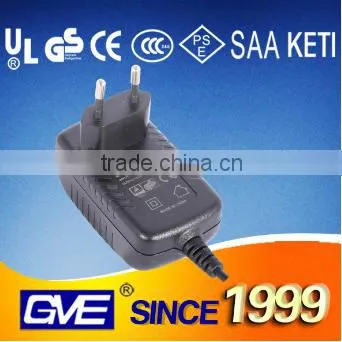

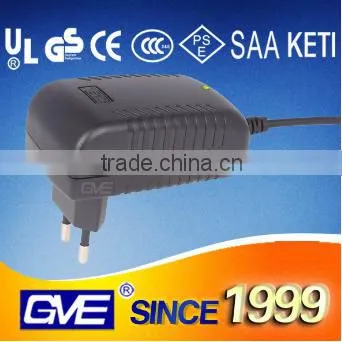

3.3V 0-10V 10.5V Eu Plug Dc Power Supply
- 1800000 Piece / Pieces per Month
- Shenzhen Hong Kong Guangzhou China
- T/T L/C D/P D/A
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GVE | Model Number: | GM36W |
Output Type: | DC | Connection: | Plug In |
Product Description
GVE brand UL/ CUL/ FCC/ CCC/ CB/ GS/ CE/ TUV/ PSE/ KETI/ RoHS certified adapters
supplies
Features
- Universal AC input / Full range
- No load power consumption < 0.3W
- Comply with CCC, CE, UL, CUL, GS, RoHS, FCC, GS, CB, TUV, SAA, KC, PSE standards
- Protections: Short circuit / Overload / Over voltage
- 3 year warranty
- Repare rate per year <0.08%
- Pass LPS
- 100% full load burn-in test
- Fully enclosed plastic case
- LED indicator for power on
Applications
- Consumer electronic devices
- Telecommunications devices
- Industrial equipment
Models options
Model | Max Power | Output Voltage | Output Current | Efficiency | Size |
GM10W | 10W | 3~48V (ex:5/6/7.5/9/12/ 15/16/19/24/48V) | 0.1~2.5A | 73% | 74*36*28mm |
GM12W | 12W | 0.1~2.5A | 78*29*42mm | ||
GM18W | 18W | 0.1~2.5A | 78*45*32mm | ||
GM26W | 26W | 0.1~3A | 78*45*32mm | ||
GM36W | 36W | 0.1~4A | 87.5*49*32mm |
*** Contact us for Custom Services ***
Optional Input Plugs
Detailed datas
Specification | |||
Input Voltage | 100~240VAC | Input Frequency | 50~60Hz |
Input Current | 0.5A max at low line input and DC output full load | ||
Output Voltage | 3~48V | Output Current | 0.1~16A |
Efficiency | 73% Min. At 100vac input and output Max.Load 73% Min. At 240vac input and output Max.Load | ||
Overshoot | 15% Max.When power supply at turn on or turn off | ||
Operating Temperature | 0°C~40°C | Storage Temperature | -20°C~85°C |
Electrical Data | |||
Dieletric Withstand | 4000VAC primary~secondary | Leakage Current | 0.25mA @2 pin / 0.35mA @3 pin |
Efficiency | Energy star level V & ERP stage 2 certified | EMI Conduction & Radiation | Complied to EN55022 Class B |
Harmonic Current | Complied to EN61000-3-2 | MTBF | 50000 calculated hours at 25°C by Telcordia SR-332 |
Since 1999, GVE has been providing top quality 18~250W AC/DC Desktop / Wall-Mounted Power Adaptors, Industrial Switch-Mode Power Supplies, Li-po Battery Chargers, etc. Now GVE has become one of China's most trustworthy brands. Our 18 series (over 1000 models) power supply products have been widely applied in automation, communication, LED lighting, medical, office automation, household application fields.
Certified Products
- Top product quality is the principle that GVE has been stick to.
- Our products are certified by various standards and organisatons include:
Repaire Rate Less Than 0.08%
- With 16-year experience, GVE has developed a high-tech, rigid quality-controling production line.
- We've set up our own EMC lab and EMC parameter is checked for each load of products.
- Every single product is individually tested and 100% full-load burn-in test passed before being put on sale.
Customization Capabilities
- Our R&D team is equiped with 15 engineers, and they have an average industry experience of 22 years
- Your ideas will be fully understood and delivered by our well-trained sales experts
- Samples will be promptly provided for your review and approval
Cooperating with Famous Companies
- With good products and business reputation, GVE has won the trust of various famous companies
- We've established long term partnetship with the following companies :
Detailed Packing
- PE bags + clapboards + outer cartons
- Custom packing service available
Shipping Details
- Small orders will be delivered by DHL, FEDEX, UPS, TNT or other international express. Normally it takes 3-7 days to deliver to your desination
- Shippment will be arranged under FOB condition
FAQ
Q : Can I get any samples ?
A : Yes, we offer free samples (1 or 2 pcs), but delivery fee will be on your charge.
Q : What is your payment terms ?
A : T/T or cash. We accept T/T 30% downpayment and 70% balance before shipment
