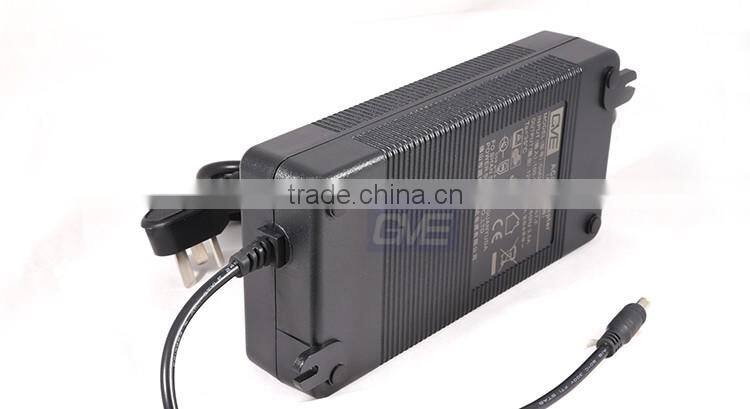

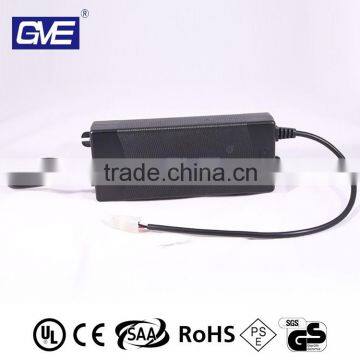

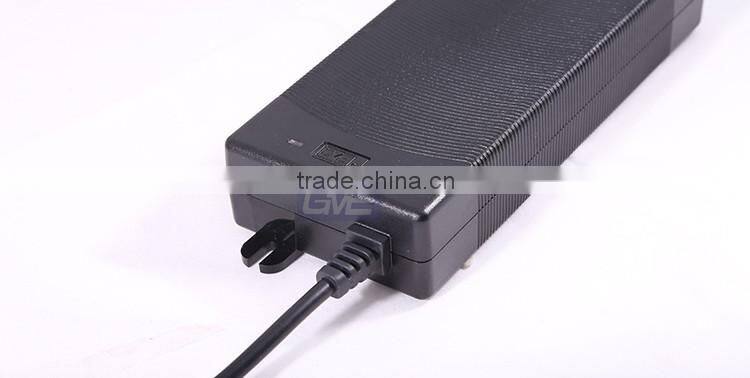

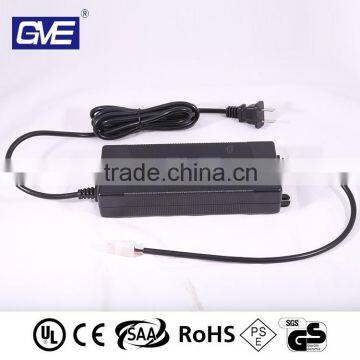

Help CenterRohs Intertek Certified 50W 2A 25V Ac Power Adapter For Water Filters
Related Products
-
GVE Switching Adaptor 24V 2A AC DC Power Adapter for Water PurifierUS$ 3 - 3MOQ: 100 Pieces -
OEM 24V 3A Power Adapter for Water Purifier With Free SampleUS$ 12 - 17MOQ: 100 Pieces
-
Single Out 24V 3A Power Adapter for Water Purifier With High EfficientUS$ 12 - 17MOQ: 100 Pieces
-
Gve Eu Plug Input 100 240V Ac 50/60 Hz 14.4V Power Adapter With CCC ULUS$ 20 - 30MOQ: 100 Pieces
-
External Power Supply 16V Output Ac 230V 50Hz Input Ac AdapterUS$ 10 - 20MOQ: 100 Pieces
GVE brand UL/ CUL/ FCC/ CCC/ CB/ GS/ CE/ TUV/ PSE/ KETI/ RoHS certified power supplies
These Adaptors are designed to provide all the power requirements for water purifiers, They are designed with high frequency switching technology which makes them highly reliable, cost effective, and compact in size and light in weight.
Features
- Wider AC input range from 100VAC to 240VAC
- Comply with CCC, CE, UL, CUL, GS, RoHS, FCC, GS, CB, TUV, SAA, KC, PSE standards
- Protections: Short circuit / Overload / Over voltage
- 3 year warranty
- No load power consumption < 0.3W
- Repare rate per year <0.08%
- Pass LPS
- 100% full load burn-in test
- Fully enclosed plastic case
- LED indicator for power on
- Clips attached make it easy to fix
Applications
- Power adapters for RO water purifier systems
- Consumer electronic devices
Models options
| Model | Max Power | Output Voltage | Output Current | Efficiency | Size |
| GM12W | 12W |
3~48V (ex:5/6/7.5/9/12/ 15/16/19/24/48V) |
0.1~2.5A | 73% | 68*35*25mm |
| GM35W | 35W | 0.1~3.5A | 80*53*31mm | ||
| GM48W | 48W | 0.1~4A | 108*51.5*31mm |
*** Contact us for details or custom service ***
Optional AC Plugs
*** DC Plugs according to your equipment are available ***
Detailed datas
| Specification | |||
| Input Voltage | 100~240VAC | Input Frequency | 50~60Hz |
| Input Current | 0.5A max at low line input and DC output full load | ||
| Output Voltage | 3~48V | Output Current | 0.1~16A |
| Efficiency |
73% Min. At 100vac input and output Max.Load 73% Min. At 240vac input and output Max.Load |
||
| Overshoot | 15% Max.When power supply at turn on or turn off | ||
| Operating Temperature | 0°C~40°C |
Storage Temperature |
-20°C~85°C |
| Electrical Data | |||
| Dieletric Withstand | 4000VAC primary~secondary | Leakage Current | 0.25mA @2 pin / 0.35mA @3 pin |
| Efficiency | Energy star level V & ERP stage 2 certified | EMI Conduction & Radiation | Complied to EN55022 Class B |
| Harmonic Current | Complied to EN61000-3-2 | MTBF | 50000 calculated hours at 25°C by Telcordia SR-332 |
GVE power adapters are designed to fit various industry needs. We've developed a wide range of adapter series to meet the actural needs of different devices. Check some of our main serving industries.
Since 1999, GVE has been providing top quality 18~250W AC/DC Desktop / Wall-Mounted Power Adaptors, Industrial Switch-Mode Power Supplies, Li-po Battery Chargers, etc. Now GVE has become one of China's most trustworthy brands. Our 18 series (over 1000 models) power supply products have been widely applied in automation, communication, LED lighting, medical, office automation, household application fields.
Certified Products
- Top product quality is the principle that GVE has been stick to.
- Our products are certified by various standards and organisatons include:
Repaire Rate Less Than 0.08%
- With 16-year experience, GVE has developed a high-tech, rigid quality-controling production line.
- We've set up our own EMC lab and EMC parameter is checked for each load of products.
- Every single product is individually tested and 100% full-load burn-in test passed before being put on sale.
Customization Capabilities
- Our R&D team is equiped with 15 engineers, and they have an average industry experience of 22 years
- Your ideas will be fully understood and delivered by our well-trained sales experts
- Samples will be promptly provided for your review and approval
Cooperating with Famous Companies
- With good products and business reputation, GVE has won the trust of various famous companies
- We've established long term partnetship with the following companies :
Detailed Packing
- PE bags + clapboards + outer cartons
- Custom packing service available
Shipping Details
- Small orders will be delivered by DHL, FEDEX, UPS, TNT or other international express. Normally it takes 3-7 days to deliver to your desination
- Shippment will be arranged under FOB condition
FAQ
Q : Can I get any samples ?
A : Yes, we offer free samples (1 or 2 pcs), but delivery fee will be on your charge.
Q : What is your payment terms ?
A : T/T or cash. We accept T/T 30% downpayment and 70% balance before shipment
