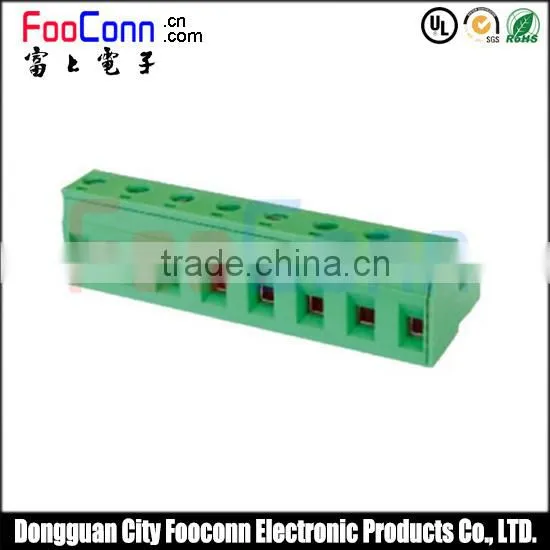

5.08mm Female Terminal Block
Pitch: 2.54mm,3.5mm,3.81mm,3.96mm,5.0mm,5.08mm,7.5mm,7.62mm, 8.25mm, 8.5mm, 9.5mm, 10mm, 11mm, 13mm etc
Material
Screws: M2.5 steel Zinc plated
Wire guard: Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Electrical
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 24-12AWG 2.5MM2
Mechanical
Temp. Range: -40~ +105
MAX Soldering: +250, for 5 Sec.
Torque: 0.4Nm(3.6lb.in)
Strip length: 6-7mm
Packaging:
1) Packed in tube/PE Bag/Tape&Reel/Tray/Plastic Box ,and cartons (bulk package )
2) Private packing and label service are available as per your requirement
Shipping:
1.The items can be sent within 7-10 working days after we received the payments.
2.As for mass production, we will confirm the delivery in advance.We will send you’re the products by SF/UPS/DHL/TNT/ FedEx.
What service do you have and why choose you?
- OEM and ODM
- CE/FCC/Rohs both approved.
- 100% QC inspection before shippment.
- The best production capability, best quality control, best service are our core competitiveness.
Dongguan City Fooconn Electronic Products Co., Ltd. which is a collection of mold design and manufacturing, metal stamping, plastic injection molding, product assembly, wire connectors and wires manufacturing company. Products are widely used in computers, computer peripherals, servo, industrial control, safety defense, mechanical, communications, medicine, etc. We has advanced technology, precise and reliable test apparatuses, approved ISO9001 quality assurance system, perfect quality of employees and service, Stable production capacity. Product categories are complete with reliable performance and reasonable price. We have won a certain share in the worldwide market for our products, and stand out, grow and enlarge continually from the same industries.
Q:Are you manufacture factory?
A:Yes, we have two factories at different city and our employees over 200
Q:Are your products high quality?
A:we have QC to control the quality,all products will be tested over 3 times before shipment.
Q: Is sample charged by customer?
A: If you are our new customer, only need charge freight to your place. For old clients the sample fee will be free of charge, besides we offer the latest product information.
Q:What's your shipping method?
1. FedEx/DHL are both available for samples
2. For batch goods, the resonable shipping way will be offerd based on our negotiation
3. Delivey time: 1-3 days for samples, 7-10 days for batch goods. .
Q: What payment term do you have?
The most common payment term for us is TT. 40% deposit payment, 60% balance payment.
| | |
| | |
|
| |
