+8 to +2 C Cold storage room
- 100 Unit / Units per Month
- SHANGHAI
-
fresh Vegetable/fruit and meat cold storage warehouse
-
Blast Freezer quick freezing for fish meat Ice Cream CE Approval
-
vegetable/ fruits /meat/ beef quick freeze warehouse 200mm
-
frozen cold room for meat and fish with solar power cold room thermometer
-
Quick Frozen Cold Room for Pizza/Meat/Fish/Chicken/Vegetable
-
frozen beef cold storage cold chain cold warehouse
Product Details
| Condition: | New | Temperature: | +8 to +2 C | Place of Origin: | Anhui, China |
| Brand Name: | Meiling | Certification: | ISO/TUV | Warranty: | 3years |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

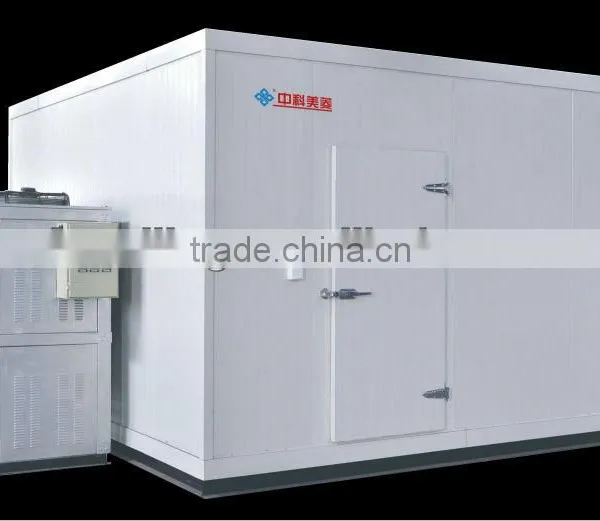

Cold Storage Room
1. Control System:
Microprocessor Controller, exact temperature sensor.
Temperature can be set freely during its range.
Two large LCD touch screen display the working condition of the compressor, fan, valve, defrosting system.
2. Alarm System:
Two independent alarm system.
Compressor fault alarm, compressor high/low voltage alarm, exhaust system high/low temperature alarm, liquid return system alarm, sensor fault alarm, etc.
The computer connected will display all these working information. History temperature and alarm data can be checked and printed.
3. Refrigeration Unit:
High quality full closed/semi-closed compressor, efficiently and low noise
Efficient air-cooled condenser/water chilling unit, green refrigerant, low noise motor.
Inner evaporator is equipped with DL ceiling-style/aluminium-alloy-pipe-style air cooler.
Defrosting automatically
Two refrigeration units, include a back-up unit.
Can work under high temperature condition.
4. Room Body:
Rigid polyurethane heat shield, the outer and inner panel is color plate.
Eccentric connect type make the room body easy to assemble and connect densely
Available panel material: color plate, salinization steel, stainless steel, embossing aluminum, etc.
Room size: customization
Available room temperature: +15 ~ +8°C, +8 ~ +2°C, +5 ~ -5°C, -15 ~ -25°C, -35 ~ -45°C, -50 ~ -60°C and -70~-80°C (you can choose one temperature range or more than one range at the same time for a freezer room)
List:
Type | Temperature range | Capacity | Refrigerant | Cooling method | Controller | Surrouding temperature |
Drug storage A | +15 to +8 °C | 10 to 40M3 | R134a | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Drug storage B | +8 to +2 °C | 10 to 40M3 | R134a | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Refrigerating storage | +5 to -5°C | 10 to 40M3 | R134a | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Freezing storage | -15 to -25°C | 10 to 40M3 | R134a | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Low temperature storage | -35 to -45°C | 5 to 30M3 | R404a | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Ultra low storage A | -50 to -60°C | 3 to 15 M3 | R404a and mixture gas | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
Ultra low storage B | -70 to -80°C | 3 to 7 M3 | R404a and mixture gas | Forced air or water cooling | PLC+LED touch screen | ≤43°C |
