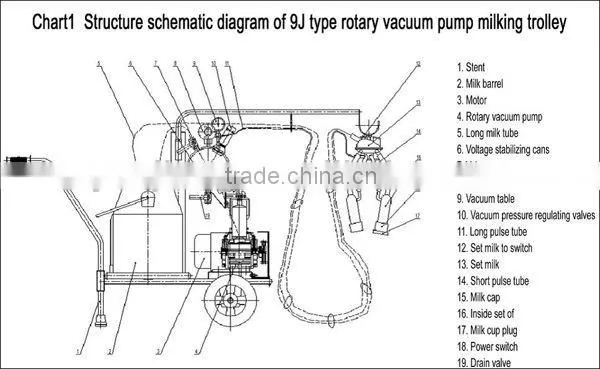

Main Structure:

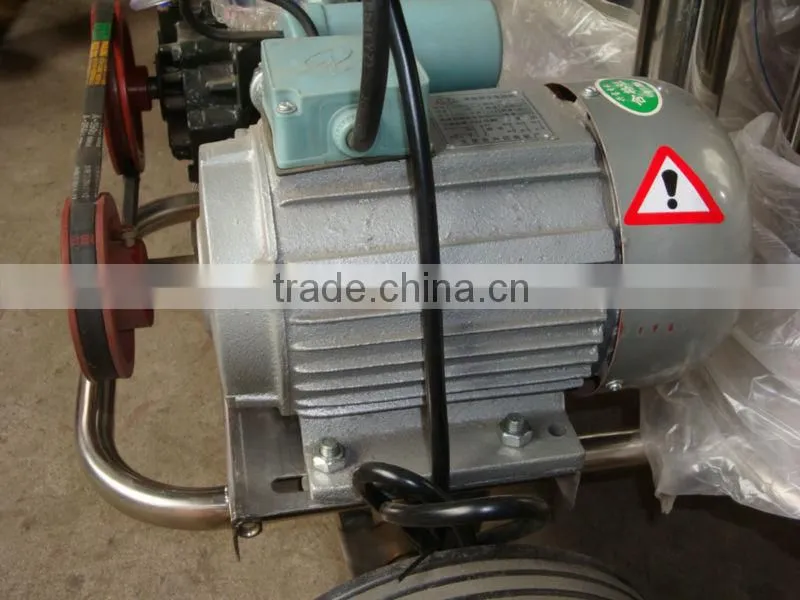

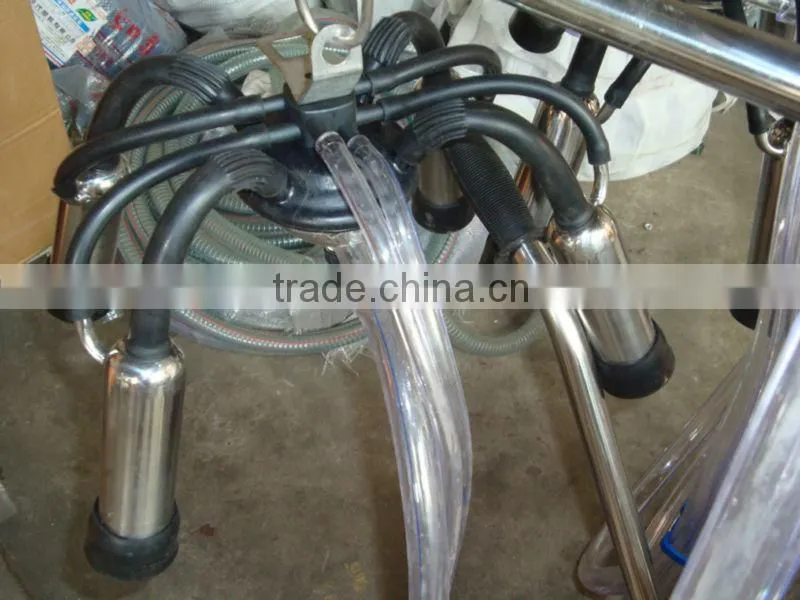

9J Series Rotary Vane Vacuum Pump Milking Machine are mainly made of : 1. Shelf 2. Milk Bucket 3. Motor 4. Rotary Vane Vacuum Pump 5. Long Milk Tube 6. Voltage Stabilizing Can 7. Valve 8. Pulsator 9. Vacuum Meter Table 10. Regulating Valve 11. Long Pulse Tube 12. Switch 13. Milk Claw 14. Short Pulse Tube 15. Milk Cap 16. Inside Liner 17. Milk Cup 18. Power Switch 19. Drain Valve
1.1 Vacuum Pump
Its the original of negative pressure through the whole system.
1.2 Bucket
Store milk.
1.3 Voltage Stabilizing Can
Store negative pressure and protect the vacuum pump without entering no dirty.
1.4 Regulating Valve
Regulating the whole negative pressure, normal pressure is 40 ~ 50 KPa.

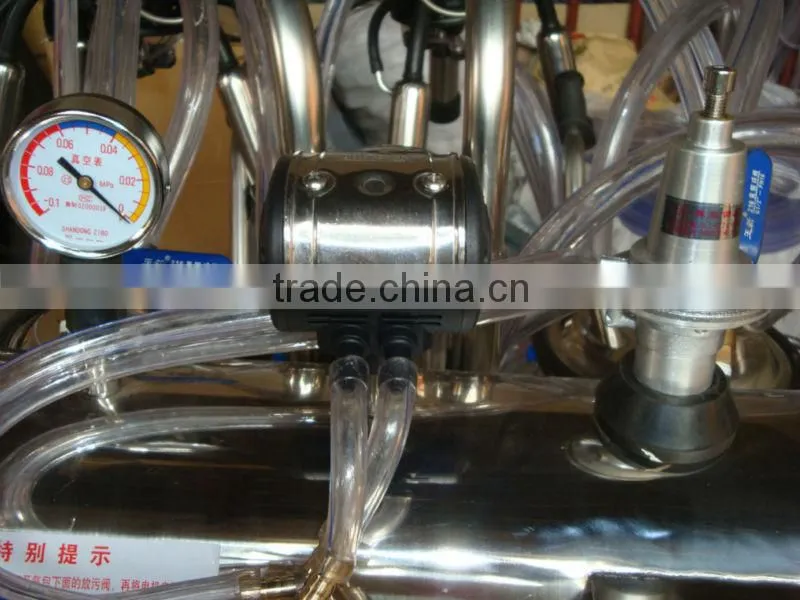

1.5 Pulsator
It used to adjust pulse beats, which makes the milk cup open and close in alternate.
1.6 Vacuum Meter Table
Show vacuum degree, normal pressure is 40 ~ 50 KPa.
Operating principle:
Mechanical milking work principle is to use negative pressure, and through the pulse frequency make milk in the cup of alternating open closed, so as to achieve the purpose of milk.
Common Troubles and Releasing Methods:
Signs of Failure |
Reasons |
Resolutions |
|
Abnormal Noises of Vacuum Pump |
Oil starvation |
Add oil |
Oil Impeded |
Adjust discharge of oil volume |
|
Bearing failure |
Change bearing |
|
|
Point negative pressure less than 50KPa of vacuum table |
Loosen of governing valve |
Adjust |
Opened drain valve |
Close |
|
Opened switch in milk claw |
Close |
|
If set the switch of milk above rubber is closed |
Close |
|
Pressure more than 50KPa of vacuum table |
Too tight of vacuum pressure regulating valve |
Adjust |
Point Zero pressure of vacuum table |
Vacuum table damage |
Change |
Vacuum pump damage |
Maintain or change |
