Specifications
machine milk productionstainless steel trolley milking machine
milk sucking machinery
removable milking mechine
Features:
1. Stainless steel crutch : it is welded through get the bended 60degree stainless steel tube and 26degree’s together so that the steel is properly shored and the trolley can move freely, then you can remove the rust easy.
2. Vane vacuum pump device: Imported from Germany with perfect gas circle, matching XP220 type rotary vane vacuum pump,horizontal type stainless steel buffer tank,butterfly pressure regulating valve,double beat gas pulsating device,vacuum tube etc. to constant vacuum control.
3. Milking system: stainless steel milk barrel , non toxic rubber milk tube and double pulse tube, etc. to complete the milking processes.
4. Light and flexible body which is suitable for big, small and medium sized farm or individual farmers .
5. Increase your profitability: The portable milking machine enables you to milk 10 to 12 cows per hour with one bucket or 20 to 24 cows per hour with two buckets. Therefore, hand milkers can triple their milking capacity and milk more cows within the same time. Reduced milking time means you can expand your herd size, which means more profit for you.
6. Increased animal health: Changing from hand to machine Milking has many benefits including faster milking speed due to improved routines and better milk let down. Good routines throughout the lactation period help to reduce the stress in your herd. This helps to improve milk quality and increase milk yield.
7. The mobility of Dairy Maid Milking machine is ideal for today's bucket milkers.
8. Robust construction means easy maintenance.
9. Large heavy duty wheels easy to move around
10. High quality, long Working Life.
11. Goat milking machine also available.
12. Single or Double buckets available.
13. Low noise, so as not to spook the livestock.
Technical parameters:
Model |
9J- 1 type |
9J-2 type |
Milking cup group number |
1 set |
2 sets |
Pulsation form |
Gas pulsation |
Gas pulsation |
Productivity |
10~12 pcs/ h |
20~24 pcs/ h |
Pulsation ratio |
50Kpa |
50Kpa |
Working vacuum |
60:40 |
60:40 |
Pulsation frequency |
60 ± 3 rpm |
60 ± 3 rpm |
Vacuum pump power |
1.1 KW, 220V / 380V |
1.1 KW, 220V / 380V |
Vacuum pumping speed |
170L/ min |
220L/ min |

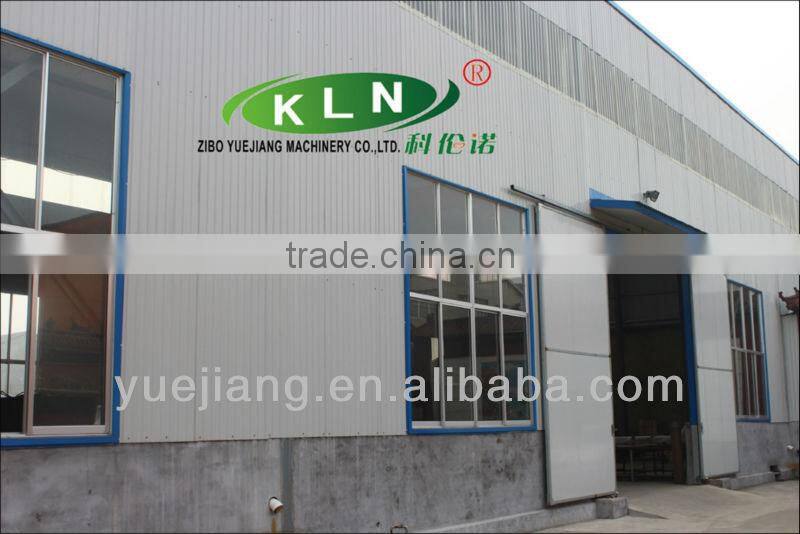

Company Scene:

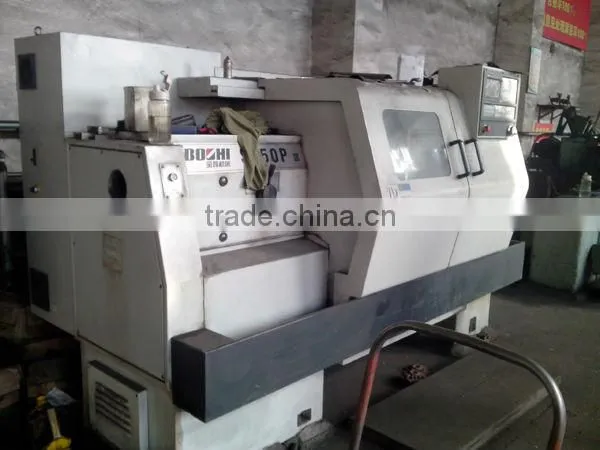

Producing Lines:
Storage:

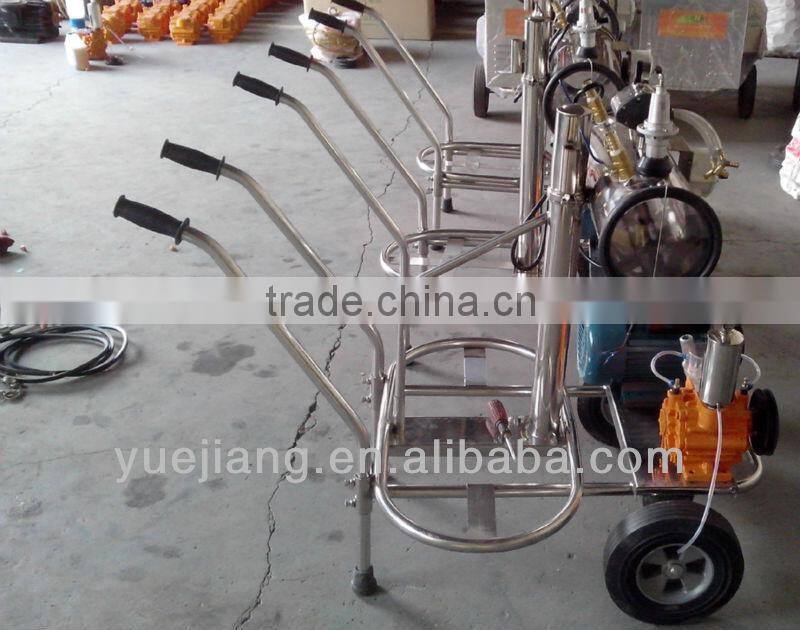

Some Parts:
XP220 Rotary Vane Vacuum Pump:
Sliencer:

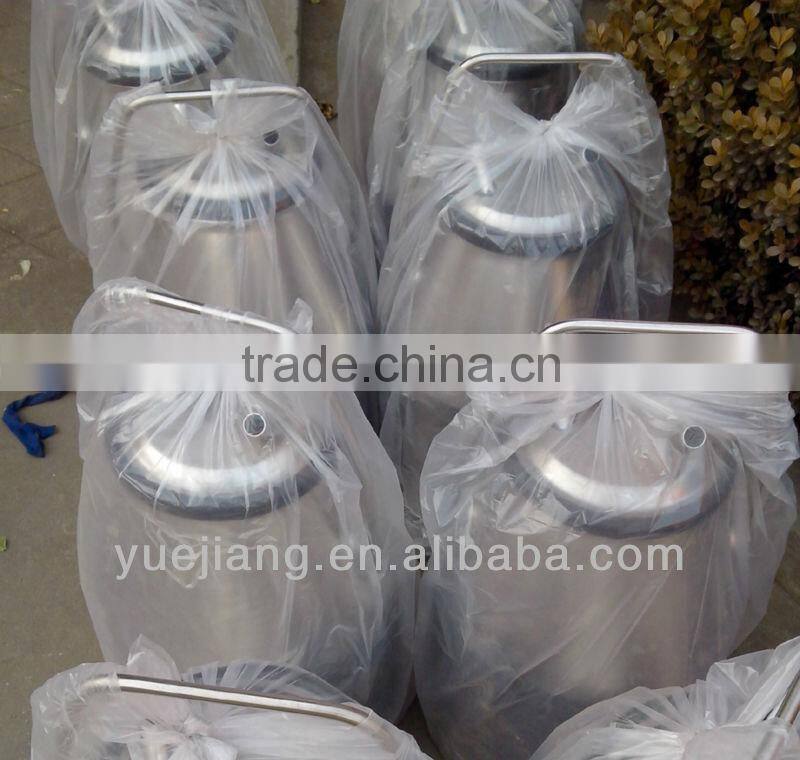

Milk Bucket:
How to Order:
Consult → Place Order (Design Sample) → 30% Full Payment → Processing Planning → Large Production → Quality Control (Test) → 70% Full Payment → Delivery
