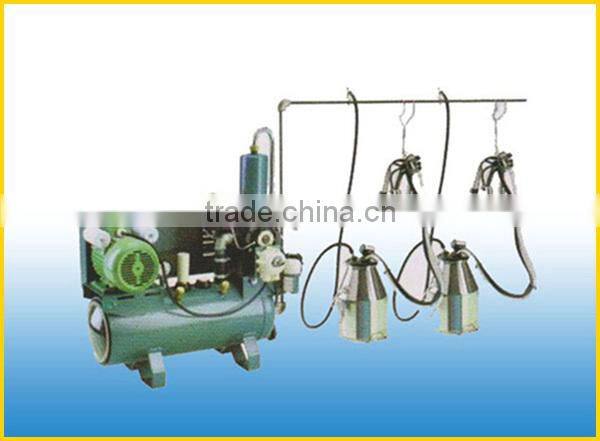

Help CenterPipeline Milking Machine Group Two Buckets
Related Products
-
Fixed Pipeline Milking Machine Group for Two CowsUS$ 500 - 800MOQ: 10 Sets -
Pipeline Milking Machine Group of Two BucketsUS$ 640 - 650MOQ: 10 Sets
-
KLN Fixed Pipeline With Vacuum Pump Milking Machine GroupUS$ 480 - 770MOQ: 1 Set
-
Pipeline Type Milking Machine With Two BucketsUS$ 1 - 600MOQ: 10 Sets
-
KLN Brand Pipeline Type Milking Machine With Two BucketsUS$ 1 - 600MOQ: 10 Sets
Specifications
Fixed take little spaceStainless steel
Save time
Rotary vane milking machine
Features:
Small body can install optional and save space, as well as save time for its light weight. This type is ur best choice if ur cowshed is very narrow and small, you fix the machine in the corner and pick the bucket to milk.
Big-diameter
stainless steel milk transport tubes
Special milk/vacuum taps allowing an easier, faster cluster take-on
High-capacity claws allowing a better milk flow away
Milkline automatic washers providing an efficient washing system
High-capacity claws allowing a better milk flow away
Glass or stainless steel terminal cups with different capacities
Technical parameters:
Model |
9J Series |
Milking cup group number |
2 sets |
Pulsation form |
Gas pulsation |
Productivity |
20~24 pcs/ h |
Pulsation ratio |
50Kpa |
Working vacuum |
60:40 |
Pulsation frequency |
60 ± 3 rpm |
Vacuum pump power |
1.1 KW, 220V / 380V |
Vacuum pumping speed |
220L/ min |

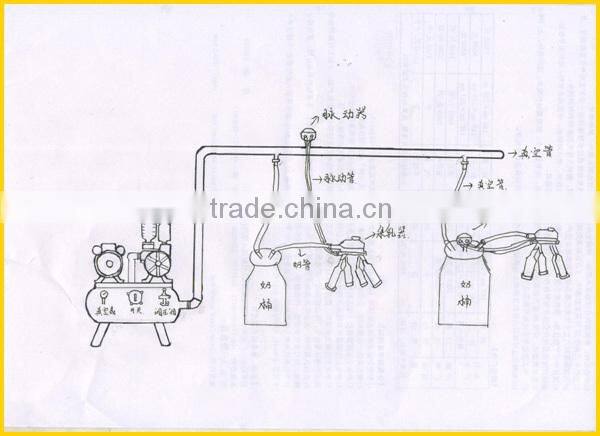

KLN pipeline milking transportation:
Working time in case of installation KLN is reduced compared with the bucket milking system thanks to having eliminated the manual operation of emptying buckets.
The pipeline is located at a maximum hight of 2 m above the trough and is inclined to encourage the inflow to the pipe.
