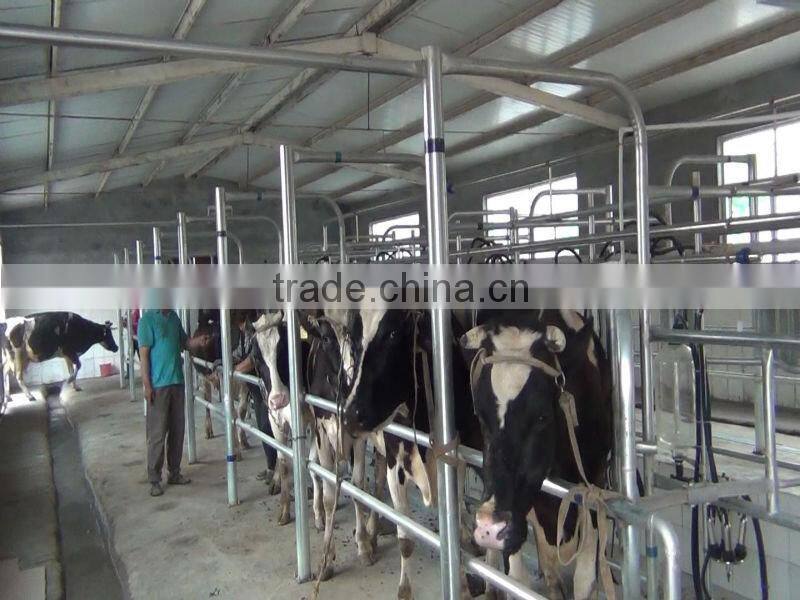

Automatic Milking Machine System of Fish-bone Type

Automatic Milking Machine System of Fish-bone Type photo-1
US$ 900 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
farm machine
Use:
milk
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type farm machine
Use milk
Voltage 220v / 380v
Place of Origin Shandong, China
Brand Name KLN
Model Number 9JZ
Certification ISO9001
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

milking system
automatic milking system
milk cip systems

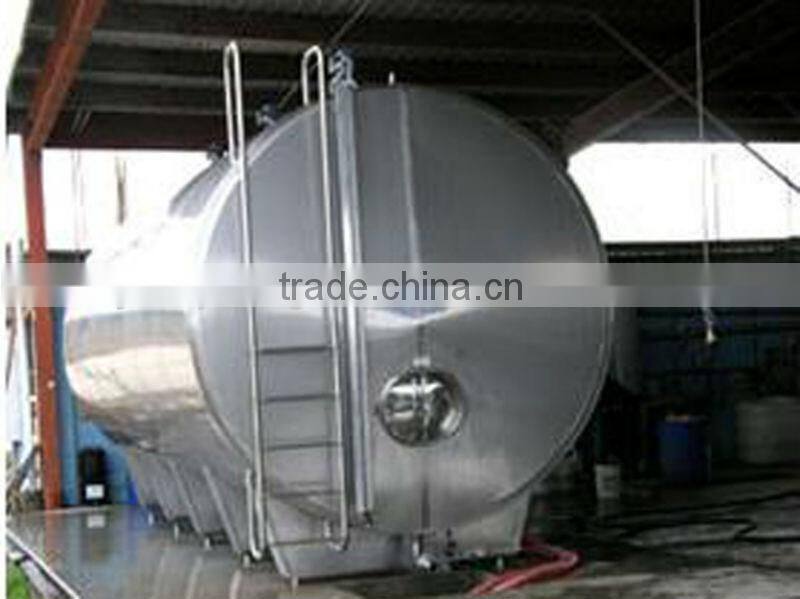

milk cooling system
cow milking systems

Technical Parameters:

Model

9JZ-1*12

9JZ-1*14

9JZ-1*16

9JZ-1*18

9JY-2*8

9JY-2*12

9JY-2*16

9JY-2*20

Working Vacuum

50Kpa

50Kpa

50Kpa

50Kpa

50Kpa

50Kpa

50Kpa

50Kpa

Pulsation Ratio

60/40

60/40

60/40

60/40

60/40

60/40

60/40

60/40

Frequency

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

60 ± 3 RPM

Vacuum pump power

4 KW

5.5 KW

5.5 KW

5.5 KW

5.5 KW

2*4 KW

2*4 KW

2*5.5 KW

Vacuum pump speed

1400L/min

2300L/min

2300L/min

2300L/min

2300L/min

2*1400L/min

2*1400L/min

2*2300L/min

Milk pump speed

5T/h

5T/h

8T/h

8T/h

8T/h

20T/h

20T/h

20T/h

Milk pump power

1.5KW

1.5KW

2.2KW

2.2KW

2.2KW

4KW

4KW

4KW





Features:

1, The milk flows to the cooling tank directly through close milk pipe, avoiding to be contaminated.

2, Automatically examine milking cows estrous, disease, milk production,etc.

3, Economical, Operate easily, high efficiency

4. We can expertly craft a milking parlor for your dairy.



Specifications:

1. This series product can recycle the residual milk which is attached to the main pipeline.
2. Throughly clean the dirt in the main pipeline especially in hot summer, which can reduce bacterial content and fresh the milk .
3. Save water and electricity.
4. To large extent, it reduced the loaded and unloaded trouble of cleaning the inner dirt in main pipeline.
5. This series goes into <The 2009 -2011 Directory of National Support and Dissemination > <The 2010 Directory of National Allowance for Agricultural Machinery Purchase>, and benefits from the National Allowance.
6. This series are mainly for adult cows to milking. Suitable for large and medium-sized farm or milk collection station to provide advanced centralized milking equipment.



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone typeautomatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type



automatic milking machine system of fish-bone type
