200 A cable accessories elbow connector , tee connector , separable connector
- 1000 Piece / Pieces per Month
- FUZHOU
Product Details
Brand Name: | RU | Application: | Power |
Product Description
Specifications
All connectors meet the electrical, mechanical, and dimensional requirements of IEEE Std 386 standard and IEC

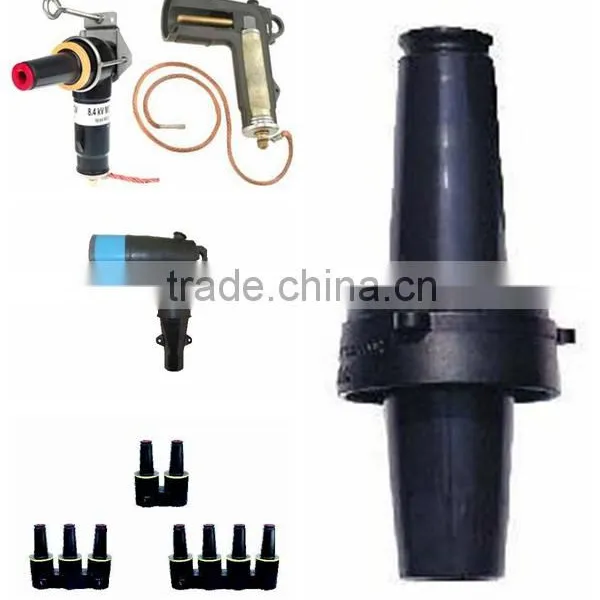

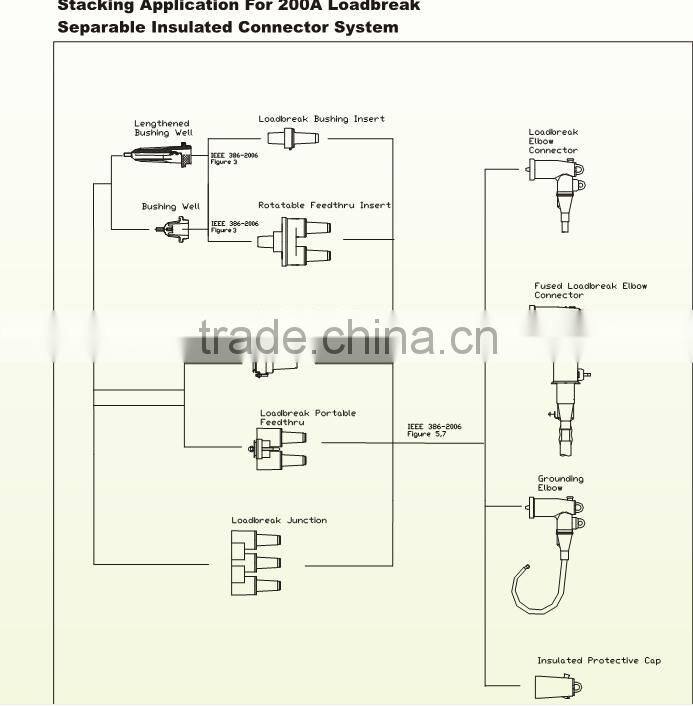

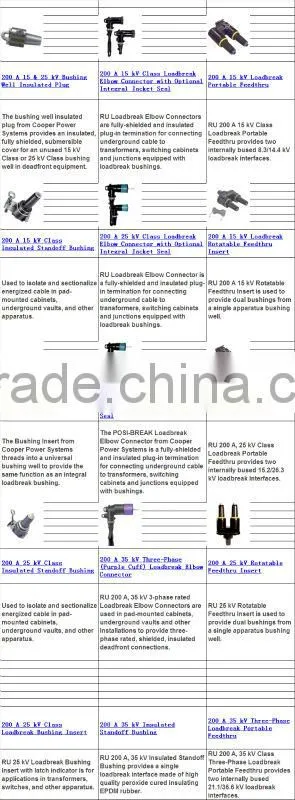

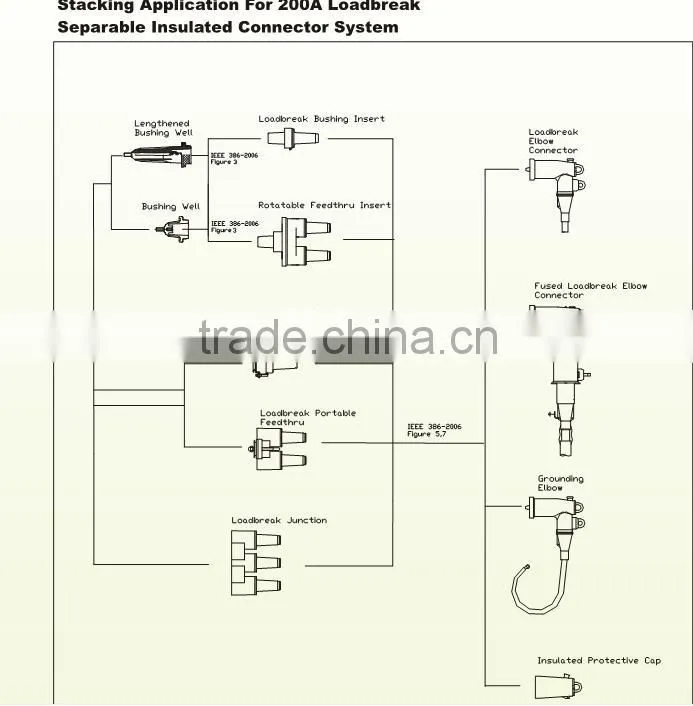

RU 200 A 15, 25, and 35 kV Loadbreak Elbow Connectors and Accessories are submersible, fully-shielded and insulated plug-in terminations, ideal for connecting underground cable to transformes, switchgear, sectionalizing cabinets and junctions. These connectors are molded using high-quality, peroxide-cured EPDM insulation for reliable field performance.
15 kV and 25 kV loadbreak elbows are available with an integral jacket seal for use with concentric neutral and other types of shielded cables.
All 200 A loadbreak connectors meet the electrical, mechanical, and dimensional requirements of IEEE Std 386™ standard and are designed to be fully interchangeable with other major manufacturers currently complying with IEEE Std 386™ standard.
15kV, 200A Separable Elbow Connector | ||||
RU ZT-15/200 | Cable Insulation Code | Cable Insulation Range | ||
Inches | mm | |||
A | 0.55-0.65 | 14.0-16.5 | ||
B | 0.63-0.73 | 16.0-18.5 | ||
C | 0.69-0.79 | 17.5-20.0 | ||
D | 0.75-0.85 | 19.0-21.5 | ||
E | 0.78-0.91 | 20.0-23.0 | ||
F | 0.87-0.98 | 22.0-25.0 | ||
G | 0.87-0.98 | 22.0-25.0 | ||
25kV, 200A Separable Elbow Connector | ||||
RU ZT-25/200 | Cable Insulation Code | Cable Insulation Range | ||
Inches | mm | |||
A | 0.71-0.79 | 18.0-20.0 | ||
B | 0.79-0.87 | 20.0-22.0 | ||
C | 0.87-0.93 | 22.0-23.5 | ||
D | 0.93-0.98 | 23.5-25.0 | ||
E | 0.98-0.106 | 25.0-27.0 | ||
35kV, 200A Separable Elbow Connector | ||||
RU ZT-35/200 | Cable Insulation Code | Cable Insulation Range | ||
Inches | mm | |||
A | 0.94-1.10 | 24.0-28.0 | ||
B | 1.06-1.22 | 27.0-31.0 | ||
C | 1.14-1.30 | 29.0-33.0 | ||
D | 1.22-1.38 | 31.0-35.0 | ||
E | 1.34-1.50 | 34.0-38.0 | ||
Technical specification | ||||
Voltage Rating | 15kV | 25kV | 35kV | |
Standard Voltage Class | 15 | 25 | 35 | |
Max. Rating Phase-to-Phase | 14.4 | 26.3 | 36.6 | |
Max. Rating Phase-to-Ground | 8.3 | 15.2 | 21.1 | |
AC 60/50Hz 1Minute Withstand | 34 | 40 | 50 | |
DC 15 Minute Withstand | 53 | 78 | 103 | |
BIL and Full Wave Crest | 95 | 125 | 150 | |
Minute Partial Discharge | 11 | 19 | 26 | |
Current Ratings | 15kV | 25kV | 35kV | |
Continuous | 200A | 200A | 200A | |
Switching | 10 operations at 200A, 14.4kV | 10 operations at 200A, 26.3kV | 10 operations at 200A, 36.6kV | |
Fault Closure | 10kA | 10kA | 10kA | |
Short Time | 10kA rms sym. for 0.17s (60Hz)/0.2s(50Hz) | 10kA rms sym. for 0.17s (60Hz)/0.2s(50Hz) | 10kA rms sym. for 0.17s (60Hz)/0.2s(50Hz) | |
3.5kA rms sym. for 3.0s | 3.5kA rms sym. for 3.0s | 3.5kA rms sym. for 3.0s |
