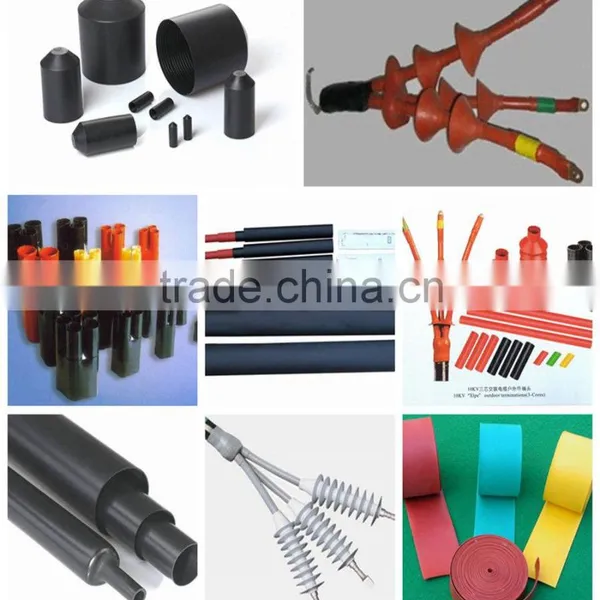

1 kv 10 kv 24kv 36kv Heat shrink tube /Heat shrink joints/Heat Shrinkable Cable End Caps

Specifications

Heat shrinkable cable accesory
1.Shrink ratio: select
2.High voltage
3.RoHS
4.Free sample





Heat Shrinkable Power Cable Accessories



Heat Shrinkable Power Cable Accessories are mainly applied to cable terminations and cable joints.

The most notable features are high track resistance, foul resistance. The accessories are designed and tested to meet major national and international standards, which have passed the type approval tests in Quality Inspection and Test Center for Equipment of Electric power or Shanghai Electric Cable Research Institute.



Product Category

0.6/1kv Power Cable Accessories

3.6/6kv~8.7/15kv Power Cable Accessories

12/20kv~26/35kv Power Cable Accessories

66kv~110kv Power Cable Accessories

132kv~275kv Power Cable Accessories

345kv~500kv Power Cable Accessories





Product Features

1.Quick and easy installation,stable operation

2.Excellent insulation and sealing

3.Durable insulation protection about 20 years under this temperature range(-50 to 125 °C)

4.Shrink ratio: lateral contraction: ≥50%; longitudinal contraction ≤ 10%

5.Shrink temperature:120°C~140°C



Manufacturing Standards:

GB/T12706, DL413, JB/T8144,,IEEE Std.48, IEEE Std.404, VDE0278, IEC 60502, ESI 09-13



Material Main Characteristics:

DL-413, ESI 09-13.



0.6/1KV Heat Shrinkable Power Cable Accessories

0.6/1KV Heat Shrinkable Power Cable Accessories are designed for the joint and termination of 1KV cables. The cable accessories can be used for 1-, 2-, 3-, 4-, and 5- cores polymeric insulated Cables.





Electrical Properties

Product	Test item	Requirements	Results
Heat Shrinkable Power Cable Accessories	AC voltage withstand for 1 minute	No breakdown or flashover at 4KV	Pass
	Isobarically load cycle test (3 cycles)	1.5KV, Heating for 5hours, cooling for 3hours, Conductor’s temperature is 75°C	No breakdown or flashover
	AC voltage withstand for 4 hours	No breakdown or flashover at 2.4KV	pass



The electrical properties pass the standard of JB/T8144, IEC60502, GB/T12706.









Certification:

Certified Picture	Certification Name	Certified By	Certificate No.	Product Name & Model No.	Available Date --- Expired Date
	ISO 9001:2008	China Quality Certification Centre, CNAS	00111Q26844R0S/3100	Scope: Design, Production and Service of Cable Accessories, Heat Shrinkable Tube Plastic and Protecting Cover of Joint of Contact of Electricity	2011/08/12 --- 2014/08/11
	ISO 9001:2008	China Quality Certification Centre, CNAS	00110Q23504R0S/3100	Scope: Design, Production and Service of Cable Accessories, Heat Shrinkable Tube Plastic and Protecting Cover of Joint of Contact of Electricity	2010/04/19 --- 2013/04/18
