thermal insulation decoration integrated board for EIFS system
Exterior insulation and finishing system (EIFS)panel or board is a general class of non-load bearing building cladding systems that provides exterior walls with an insulated, water-resistant, finished surface in an integrated composite material system.
Specification:
Test item |
Performance index |
Test result |
conclusion |
|
Thermal insulation decorative board for exterior wall |
Water absorption(v/v)% Under water for 24h |
≤500 |
83 |
qualified |
Impact strength/J |
≥10.0 ,≤3 damaged |
nothing damaged. |
|
|
Free-thaw resistance (30 loops) |
No seepage crack,chalking,hollowing or peeling |
No crack, chalking,hollowing or peeling |
qualified |
|
The tensile and bonding strength≥0.10Mpa. |
0.22 Mpa, damaged in PU |
|
||
Vapor permeability(m2.h) |
≥0.85 |
0.39(no requirements for ventilating structure) |
|
|
watertightness |
No seepage on the panel inner side |
No seepage on the panel inner side |
|
|
Thermal resistance(m2.k)/w |
qualified |
qualified |
Qualified |
|
Wind load resistance kpa |
No less than wind load design value of 5.74 |
qualified |
Qualified |
|
|
Weather resistance |
No chalking or peeling,no hollowing or peeling.the tensile and bonding strength≥0.10Mpa, damaged in the insulating layer. |
qualified |
qualified |
|
Cton has many automatic assembly lines such as the complete set of UV, spraying, drying and PU continuous board which enable to deliver product quickly responding to the client’s need.

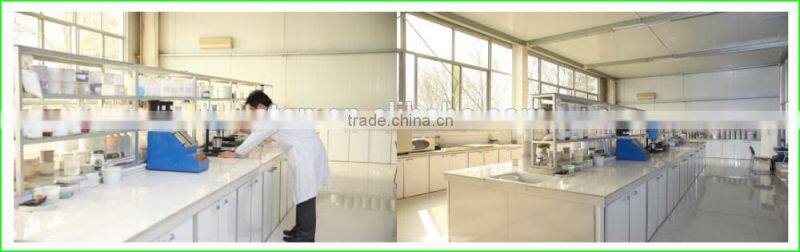

Besides, we factory has the complete testing and inspection equipment, such as the inspection equipment G84-II reflectivity measuring instrument, QXD scraper fineness test, GKL-II drought and crack tester, viscosity meter, YQ-Z48B white tester, JTX-II abrasion instrument. The company controls every physical and chemical performance for the raw materials entering the factory and the production process strictly. Also the company conducts the strict quality test for the covering rate, fineness, initial aridity and crack resistance, viscosity, whiteness, washability of the painting. RS232 precision electronic balance can make sure that the product weight test deviation is accurate to 0.0001mm.
(1) 14 years manufacture experience.
(2) Certified by ISO9001,ISO14001,AL,CNAS,CCCF.
(3) As a leading manufacturer,one-stop solution for all your question:design,R&D,production,installation.
(4) Prefab in factory,quality ensured.shorter construction time,reduce your labour cost.
(5) Your inquiry will be replied in 24 hours.
(6) OEM/ODM is ok.
(7)Specialized guidance in the following installation.
(8)Free sample is available for checking quality
