TFT LCD display 7" industrial touch screen panel pc linux
Product Name | industrial touch screen panel pc linux |
Model Number | LX070CY01 |
Size | 7 inch |
CTP Structure | Cover Glass+Sensor Glass |
Outline Size | 163.5x99.6x1.43MM |
Active Area | 156.48x88.32MM |
Resolution | 800X480 |
Driver IC | FT5316 |
Surface Hardness | 6H |
Interface | I2C |
Support Max Points | 10 points |
Operating Temperature | -20 to 70 C° |
Storage Temperature | -30 to 80 C° |
Transparency | >86% |
Power Supply | 2.8-3.3V |
Operating System | Linux,android,win CE |

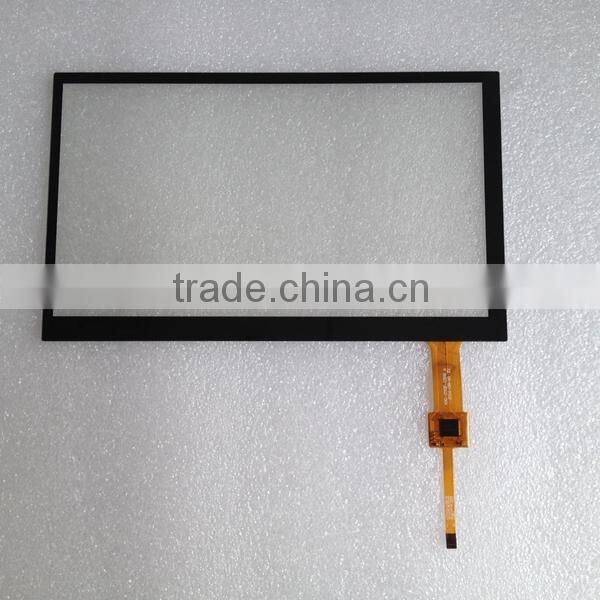

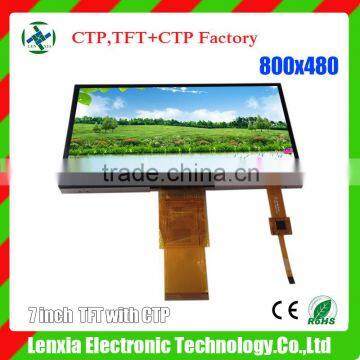

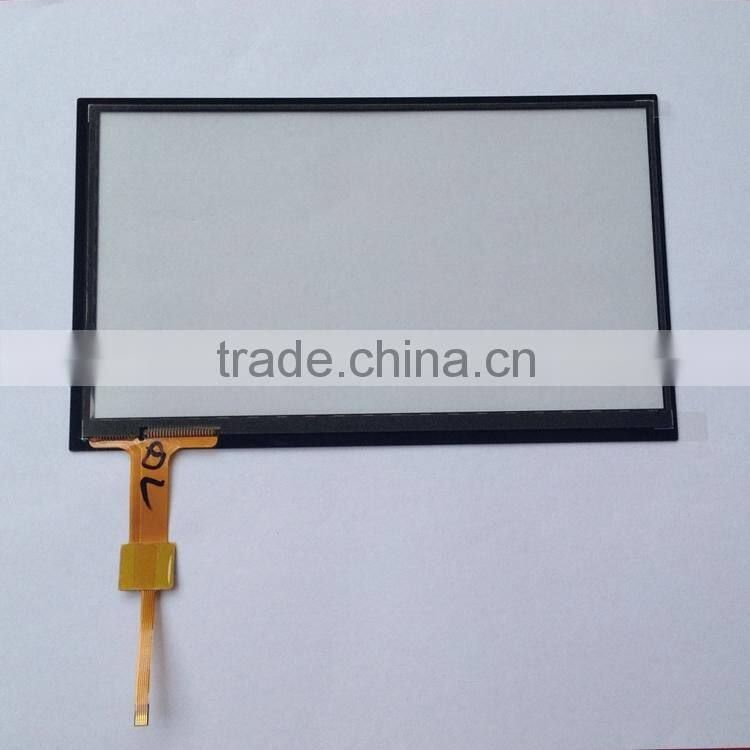

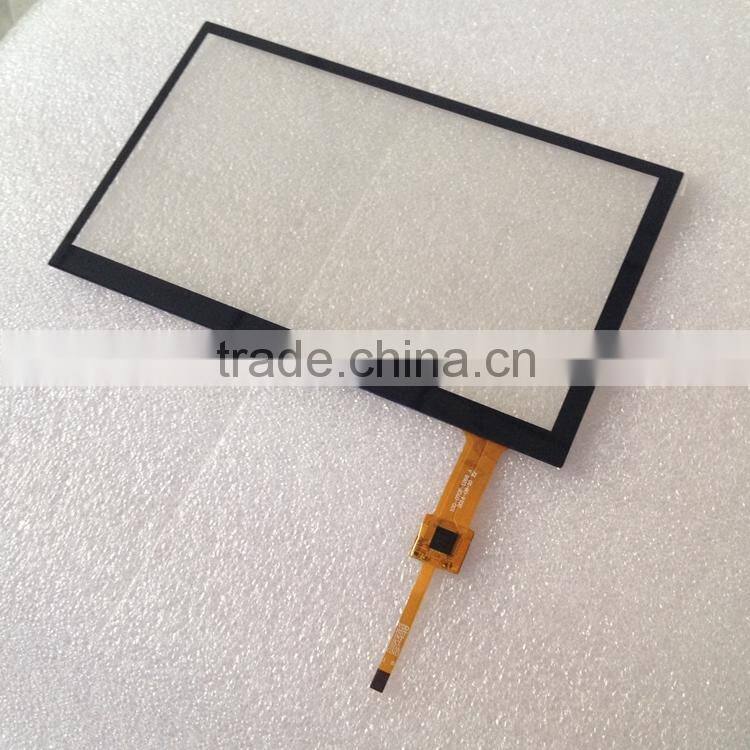

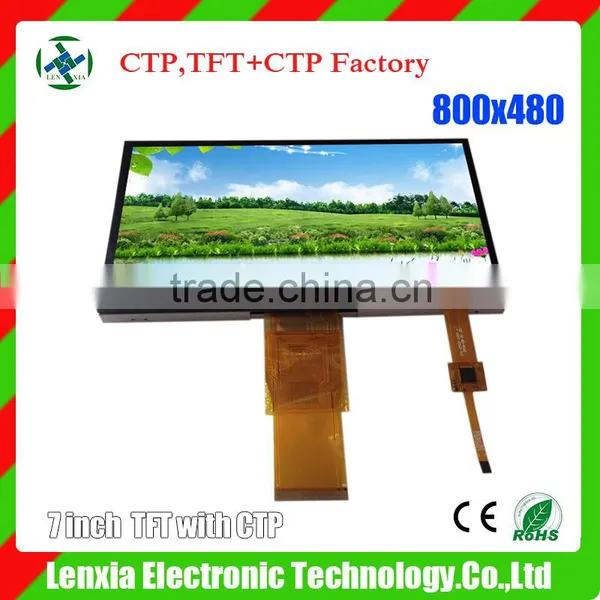

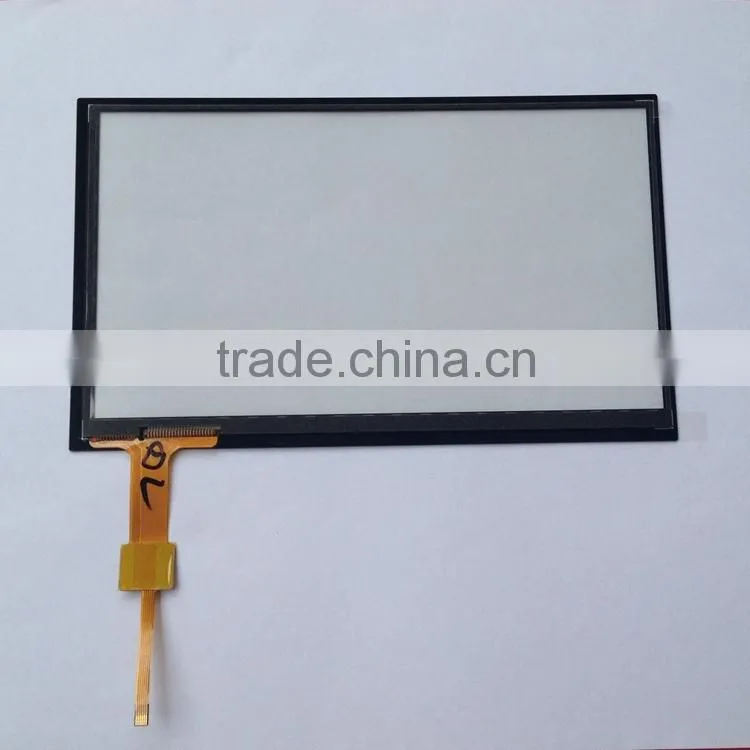

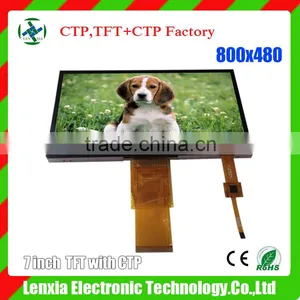

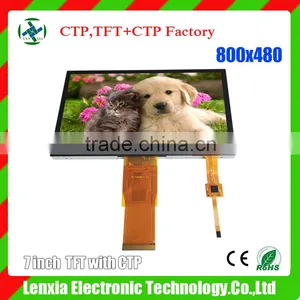

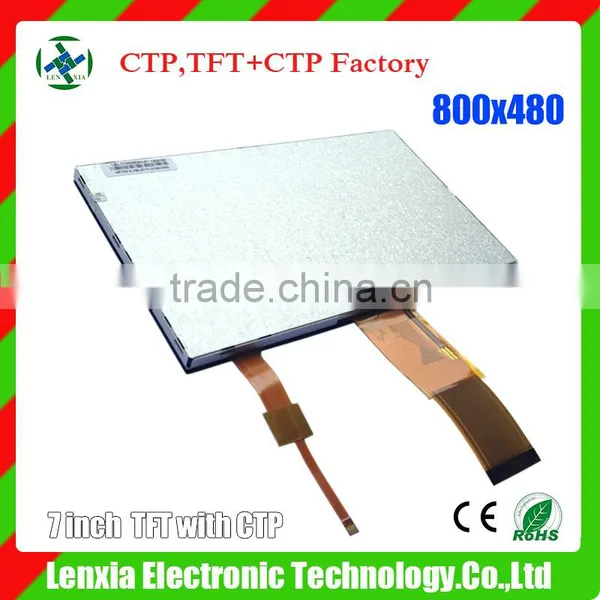

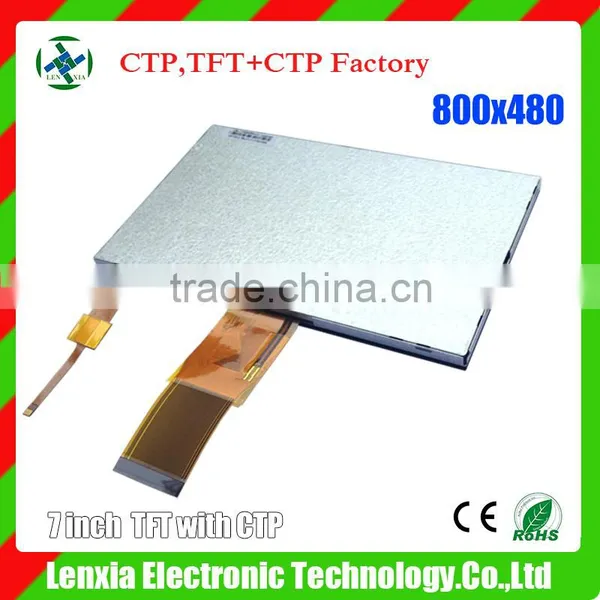

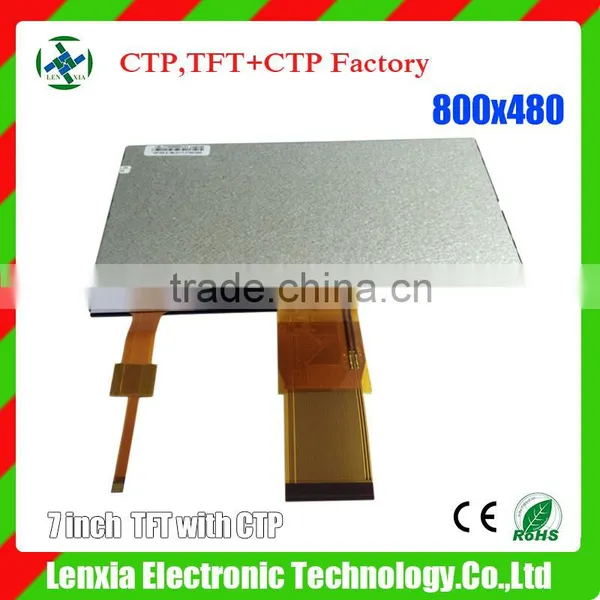

Product show:
Lenxia also supply the following standard products:
| Capacitive touch screen: | ||||||||
Panel size | Item NO | Active Area (mm) | Outline (mm) | Structure | Interface | Driver IC | No.of Touch | IC Package |
| 1.44'' | LX144CY01 | 27.1*26.1 | 40.4*40.4*2.0 | G+G | IIC | ZET6221 | 2 | COF |
| 2.0'' | LX020CY01 | 42.8*32.6 | 59*41.68*1.28 | G+G | IIC | GT9137 | 2 | COF |
| 3.5'' | LX035CY01 | 74.94*50.36 | 94.94*66.86*1.3 | G+G | IIC | MSG2133A | 2 | COF |
| LX035CJ03 | 74.24*49.76 | 85.44*56.44*1.475 | G+G | IIC | GT9137 | 2 | COF | |
| 4.3'' | LX043CY01 | 97.04*55.86 | 114*77*1.28 | G+G | IIC | MSG2138A | 3 | COF |
| 5'' | LX050CY01 | 109.8*66.6 | 127.0*85.8*1.43 | G+G | IIC | FT5316 | 5 | COF |
| 7'' | LX070CY01 | 156.48*88.32 | 164.5*99.6*1.43 | G+G | IIC | FT5316 | 5 | COF |
| Capacitive touch screen moudle ( With TFT Display ): | ||||||||
Panel size | Item NO | Active Area (mm) | Outline (mm) | Resolution | Brightness | Interface | CTP Driver IC | No.of Touch |
| 1.44'' | LX144MY01 | 25.5*26.5 | 74.9*40.4*4.63 | 128x128 | 400 | 8080 8 bit Parallel | ZET6221 | 2 |
| 2.0'' | LX020MY01 | 40.8*30.6 | 51.5*37.88*2.5 | 240x320 | 200 | 8 bit MCU Parallel | GT9137 | 2 |
| 3.5'' | LX035MY01 | 73.44*48.96 | 84.1 x 55.2 x 2.1 | 320X480 | 280 | RGB | MSG2133A | 2 |
| 4.3'' | LX043MY01 | 95.04*53.86 | 118*77*4.48 | 480X272 | 300 | RGB | MSG2138A | 3 |
| 5'' | LX050MY01 | 108*64.8 | 127.0*85.8*4.93 | 800X480 | 250 | RGB | FT5316 | 5 |
| 7'' | LX070MY01 | 154.08*86.42 | 164.9*100*6.93 | 800X480 | 360 | 24bit TTL with T-CON | FT5316 | 5 |
Lenxia Electronic Technology Co.,LTD is a manufacturer of capacitive touch panel and LCD/LCM display
module with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used
in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs.We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success.

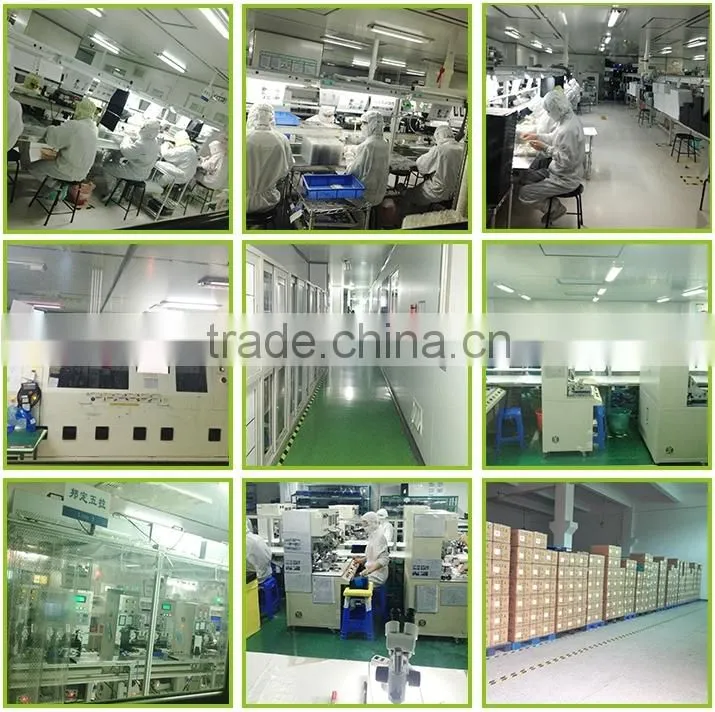

Factory show:

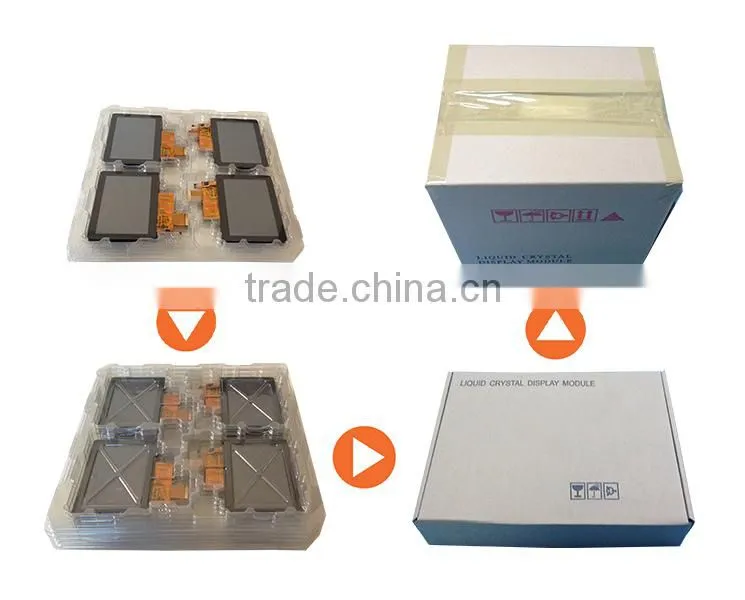

1).All of our products are International standard export package, pls see the below picture for your reference:
2).Shipping : FedEx / UPS /DHL/TNT/EMS .
Safe ,Fast, Good service; Estimated time of arrival : 2-5 days.
1.Standard size will be provided to test; Customized available.
2.Main Products: 1.44~15inch capacitive touch screen and TFT display module.
3.The Cover Glass: AG/AR/AF available ; Silk- printing; 0.7-2mm thickness; Corning glass available.
4.Multi touch, Support with water touch, glove touch; Optical bonding with LCM module.

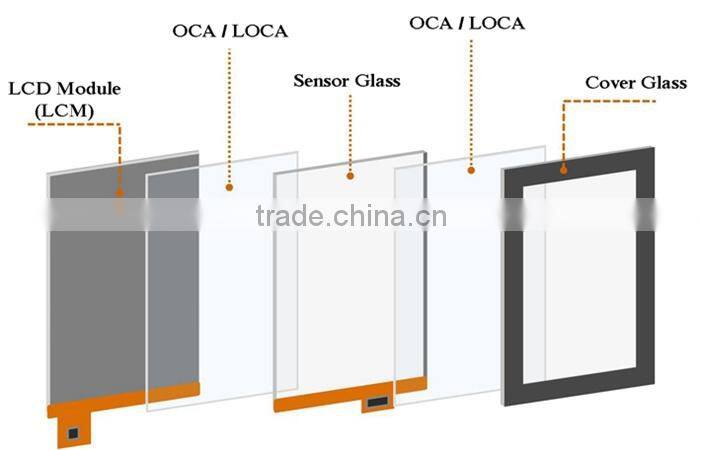

Bonding:
Q:How can I get some samples?
A:First confirm data according to the drawings , and then send you a confirmation test by courier.
Q.What is the MOQ?
A:It depends on different products. Normally 5k/years .
Q:How long is the warranty?
A:12 Months.
Q:What is the package or your products?
A:Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Q:Can you accept OEM and ODM?
A: Yes,we accept OEM and ODM service according to client’s requirements.
