Color 4.3 inch tft lcd module, 480x272 4.3inch touch screen TFT LCD module
Specification of TFT LCD module:
Product Name |
tft lcd module |
Model Number |
LX043MY01 |
Product Size |
4.3 inch |
Assy type |
LCD module +CTP |
Module Size |
118.0x77x4.48mm |
Active Area |
95.04x53.86mm |
Resolution |
480xRGBx272 |
Driver IC |
HX8257-A |
Interface |
RGB |
Contrast Ratio |
400:1 |
Luminance |
300 cd/m2 |
Operating Temperature |
-20 to 70 C° |
Storage Temperature |
-30 to 80 C° |
Backlight |
White LED |

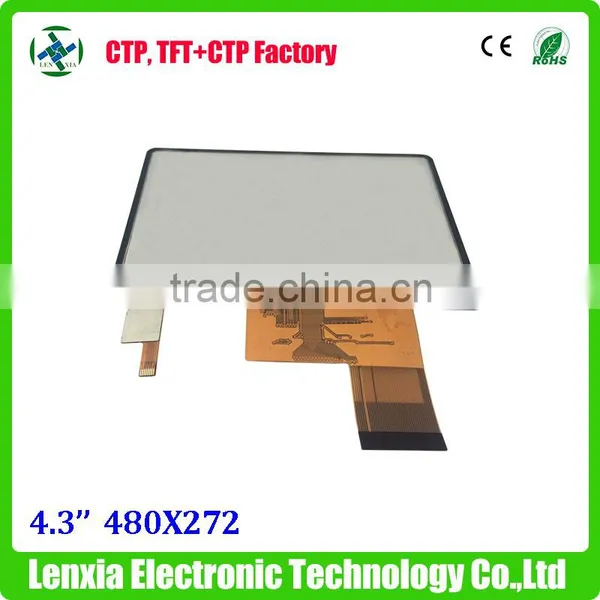

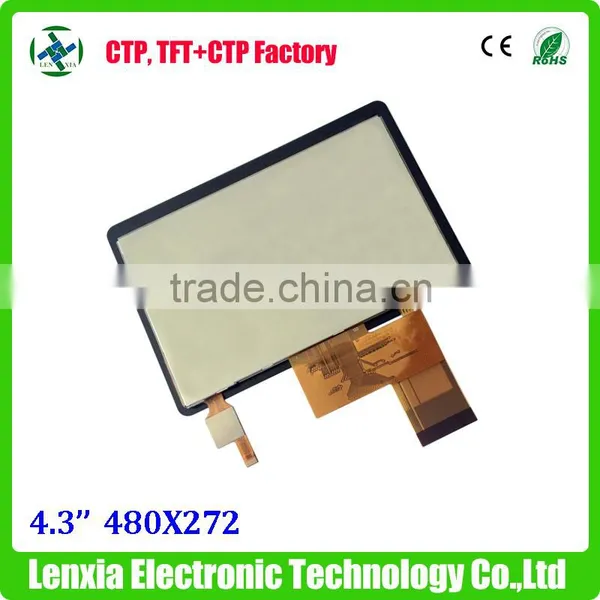

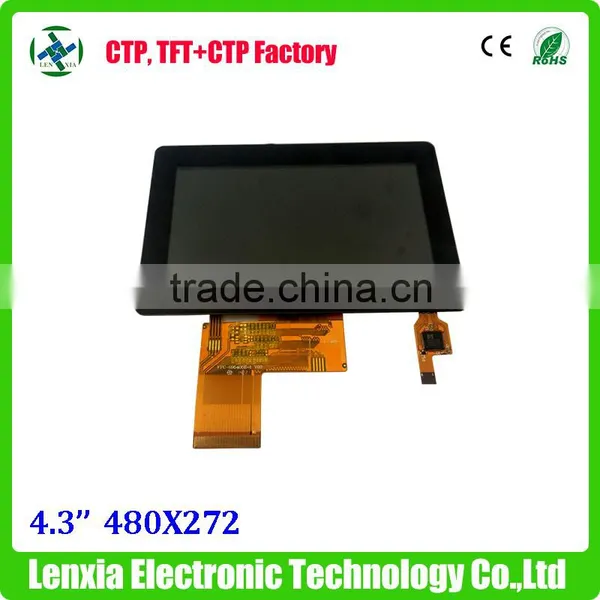

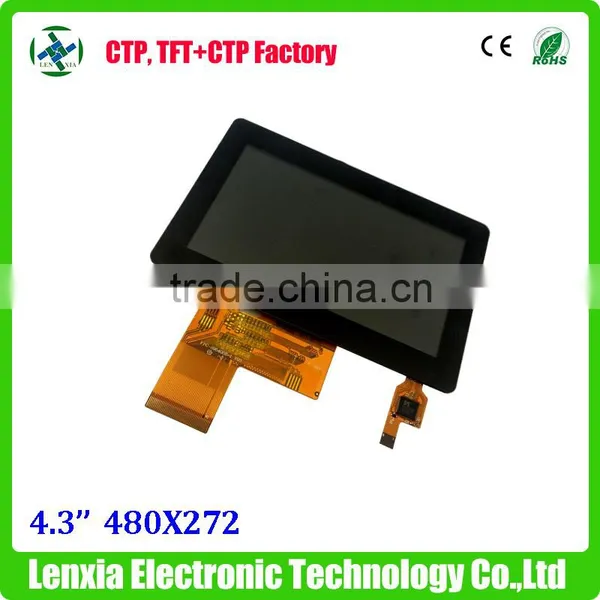

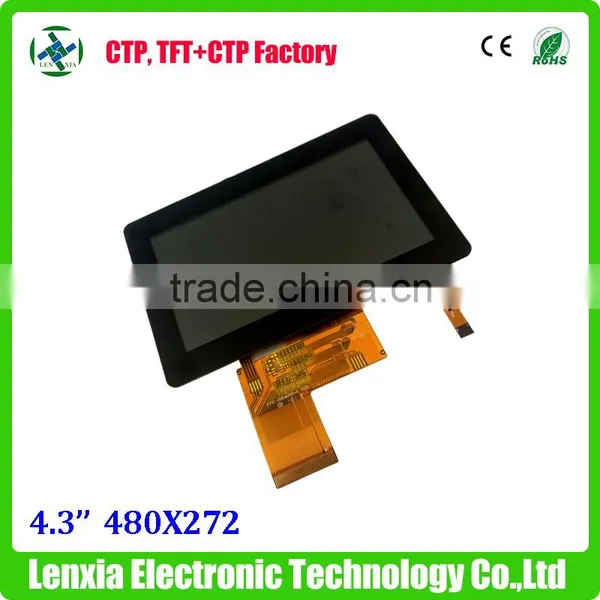

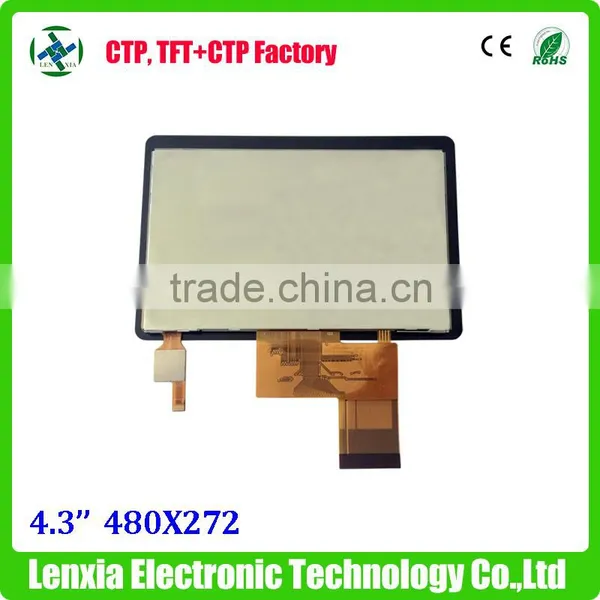

Photo of TFT LCD module:
tft lcd module
Our Services
| Products range | Capacitive Touch Panel ( CTP ), TFT LCD module ( LCD ), CTP bonding LCD Moudle, Solution Help . |
| Standard size | 1.44'', 1.77'', 2'', 2.8'', 3.2'', 3.5'', 4'', 4.3'', 5'', 7'', 10.1''; Customized available |
CTP Cover glass |
AG/AR/AF available. |
| Silk- printing, LOGO. | |
| 0.55--2.0 mm thickness. | |
| CTP Struction | G+G; G+F; G+F+F; P+G. |
Touch solution |
Multi-touch. ( up to 10 points Max.) |
| Support with water touch, with glove touch. | |
| Optical bonding with LCM module. | |
|
General Business Clauses :
| |
| MOQ | 1 pcs. |
| Lead time | Samples in stocks ( or 2-3 weeks ),2-4 weeks for mass production. |
| Trade Terms | FOB OR EXW. |
| Payment | 100% T T in advanc for samples. |
| 50% T T in advance , 50% before delivery for mass production. | |
| Warranty | 12 months. |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton. |
OCA/LOCA Bonding:
tft lcd module
Lenxia Electronic Technology Co.,LTD is a manufacturer of capacitive touch panel and LCD/LCM display
module with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used
in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs.We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success.

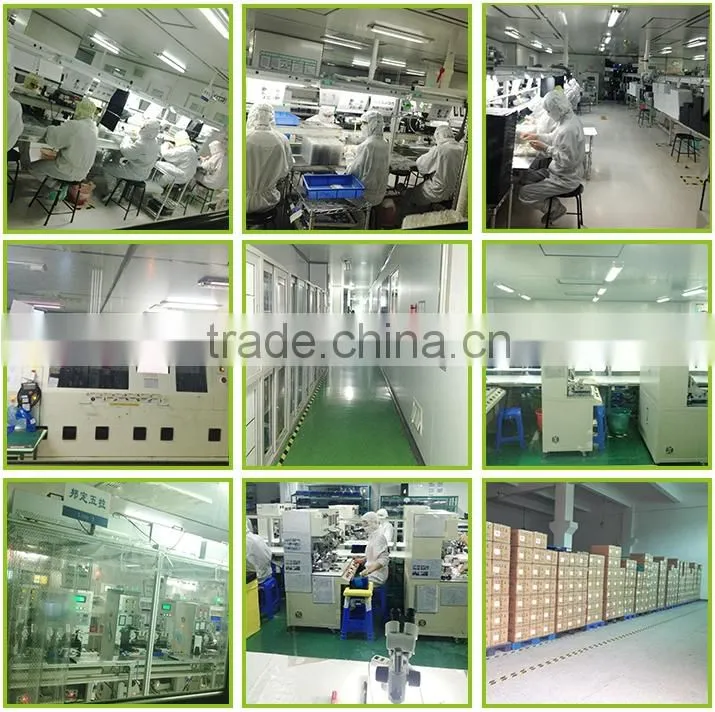

Workshop:
Certification:
tft lcd module
1).All of our products are International standard export package, pls see the below pictures for your reference:
2).Shipping : FedEx / UPS /DHL/TNT/EMS .
Safe ,Fast, Good service; Estimated time of arrival : 2-5 days.
tft lcd module
Q:How can I get some samples?
A:First confirm data according to the drawings , and then send you a confirmation test by courier.
Q.What is the MOQ?
A:It depends on different products. Normally 5k/years .
Q:How long is the warranty?
A:12 Months.
Q:What is the package or your products?
A:Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Q:Can you accept OEM and ODM?
A: Yes,we accept OEM and ODM service according to client’s requirements.
