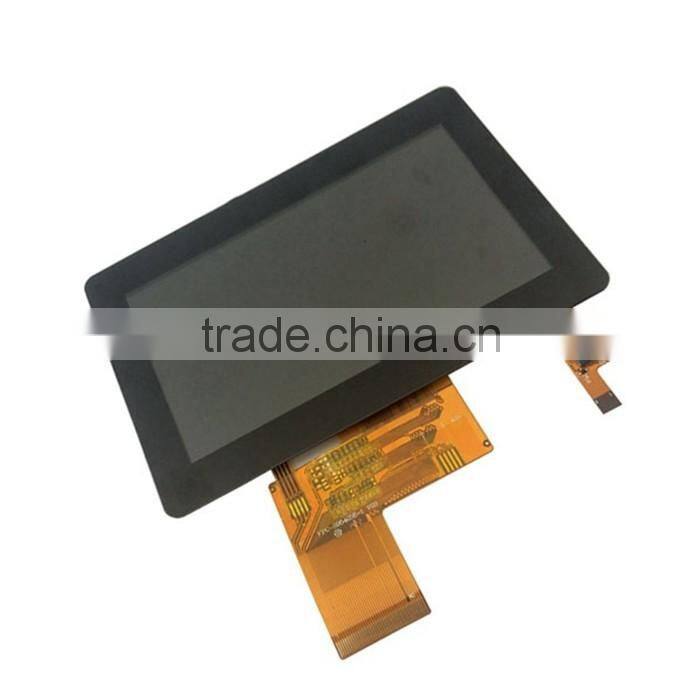

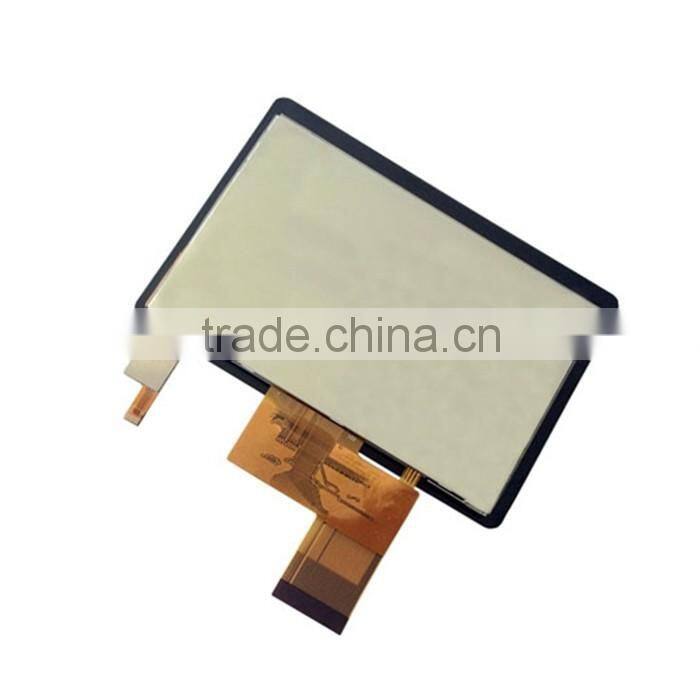

RGB interface 4.3 inch capacitive touch lcd with 480x272
Specification of 4.3 inch capacitive touch lcd :
| LCD Module | Product Name | 4.3 inch capacitive touch lcd |
| Model Number | LX043MY01 | |
| Product Size | 4.3 inch | |
| Assy type | LCD module (COG+FPC+BL)+CTP | |
| Module Size | 118.0x77x4.48mm |
|
| Active Area | 95.04x53.86mm |
|
| Resolution | 480xRGBx272 | |
| Interface | RGB | |
| Contrast Ratio | 400:1 | |
| Luminance | 300 cd/m2 | |
| Viewing Direction | 12 O’clock | |
| Display Mode | Normally White,Transmissive | |
| Backlight | 10 White LED | |
| CTP | CTP Interfcae | I2C |
| Touch Controller | MSG2138A | |
| Support Points | 3 | |
| Transparency | >86%min | |
| Surface Hardness | 6H. | |
| Structure | Cover glass+ sensor glass | |
| Operating System | Linux,android,win CE |
Touch screen module | |||||||
| Item NO |
Active Area (mm) |
Outline (mm) |
Resolution | Brightness | Interface |
With Capacitive/ Resistive touch |
Remark |
| LX035MY01 | 73.44*48.96 | 84.1 x 55.2 x 2.1 | 320X480 | 280 | RGB | Capacitive touch | Read More |
| LX043MY01 | 95.04*53.86 | 118*77*4.48 | 480X272 | 300 | RGB | Capacitive touch | Read More |
| LX050MY01 | 108*64.8 | 127.0*85.8*4.93 | 800X480 | 250 | RGB | Capacitive touch | Read More |
| LX070MY01 | 154.08*86.42 | 164.9*100*6.93 | 800X480 | 360 | RGB | Capacitive touch | Read More |
| Capacitive touch panel | |||||||
| Item NO |
Active Area (mm) |
Outline (mm) |
Structure | Interface |
Touch controller |
Touch controller |
Remark |
| LX035CY01 | 74.94*50.36 | 94.94*66.86*1.3 | G+G | IIC | 2 | MSG2133A | Read More |
| LX035CJ02 | 74.24*49.76 | 85.44*56.44*1.47 | G+G | IIC | 2 | FT6236 | Read More |
| LX043CY01 | 97.04*55.86 | 114*77*1.28 | G+G | IIC | 3 | MSG2138A | Read More |
| LX050CY01 | 109.8*66.6 | 127.0*85.8*1.43 | G+G | IIC | 5 | FT5316 | Read More |
| LX070CY01 | 156.48*88.32 | 164.5*99.6*1.43 | G+G | IIC | 5 | FT5316 | Read More |
*******************************************************************************************************************************************
What we can do ? ------- Manufacturer of Capacitive touch panel !
*******************************************************************************************************************************************
| Products range | Capacitive Touch Panel ( CTP ), TFT LCD module ( LCD ), CTP bonding LCD Moudle, Solution Help . |
| Standard size | 1.44'', 1.77'', 2'', 2.8'', 3.2'', 3.5'', 4'', 4.3'', 5'', 7'', 10.1'', 12'', 14'', 15'', Up to 55'' ; ( Customized available.) |
| CTP Cover glass | AG/AR/AF available. |
| Silk- printing, LOGO. | |
| 0.55--5.0 mm thickness. | |
| CTP structure | G+G; G+F; G+F+F; P+G. |
| Touch solution | Multi-touch. ( up to 10 points Max.) |
| Support with water touch, with glove touch. | |
| Optical bonding with LCM module. | |
| General Business Clauses : | |
| MOQ | 1 Piece. |
| Lead time | Samples in stocks ( or 2-3 weeks ); 2-4 weeks for mass production. |
| Trade Terms | FOB OR EXW. |
| Payment | 100% T T in advanc for samples. |
| 50% T T in advance , 50% before delivery for mass production. | |
| Warranty | 12 months. |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton. |
*******************************************************************************************************************************************
Optical Bonding:
*******************************************************************************************************************************************
Lenxia Electronic Technology Co.,LTD is a manufacturer of capacitive touch panel and LCD/LCM display
module with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used
in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs.We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success.
Workshop :
1).All of our products are International standard export package, pls see thebelow picture for your reference:
2).Shipping : FedEx / UPS /DHL/TNT/EMS .
Safe ,Fast, Good service; Estimated time of arrival : 2-5 days.
Q1: How can I get some samples?
A: First confirm data according to the drawings, then send you samples to test and check quality.
Q2: How about your delivery time?
A: Standard sample have in stock.
Custom sample needs 2-3 weeks.
Mass production time needs 4-6 weeks for order quantity more than.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pcs for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Is it OK to print my logo on products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12months warranty to our products.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
