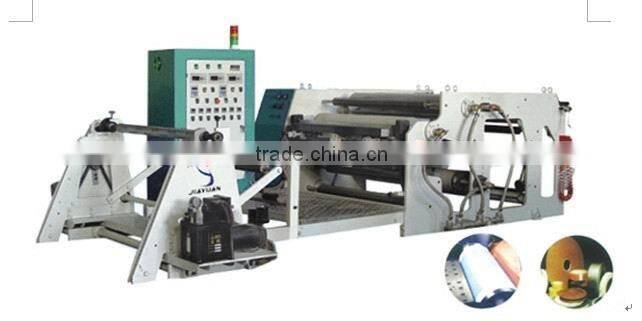

110 Hot Melt Coating Machine

)A range of applications
JYT-B hot-melt coating machine is mainly used in producing double-sided tape, cloth tape, double-sided foam tape, cleaning tape, kraft paper tape, Masking tape, foil tape, fiber tape, shoes, medical dressing adhesive tape and so on.

 Main technical parameters
1. Coating method: Scratch
2. Limited Coating Width: 1100mm
3. Coating weight: 18-200g /
4. Uniformity: 20g-50g / ≤ ± 0.003mm
5. Machine Speed: 50m/min
6. All stick surface length: 1200mm
7. Rewinding diameter: 1000mm
8. Unwinding diameter: 1000 mm
9. Unwinding device: 2 sets of
10. Winding devices: a set of
11. Melt rate: 130kg / h (EVA.3000 cps 165 )
12. Input hose length: 3m
13. Temperature: 230
14. Installed power: about 28kw
15. Power Supply: ~ 380V ± 15% 50Hz
16. The glue speed synchronization with the host track can also be adjusted independently
the main components description

(A) rack
1. Unwinding first frame using square steel, channel steel, iron welding is made.
2. Mainframe as a whole is made using 25mm steel plate supported by steel pipes.
3. Transmission using 1.5mm steel plate cover.
4. Winding installed in the host frame plate.
(B) Unwinding part of the
1. Using single-station center Unwinding.
2. First use of 100N · M Unwinding a set of magnetic brakes, and the second unwinding using 50N · M magnetic brake a set of
3. Let scroll using 3 "inflatable shaft, paper tube diameter 76mm.
4. First Unwinding with square steel, channel steel, iron welding is made with a set of auto-correction feature, the second Unwinding with rack installed on the host, manual correction.
(C) the coating compound and the guide rod part of the
1. Coating the first material: high temperature alloy steel
2. Coating roller: 215mm silicon rubber stick with two rotary joints.
3. Cooling roller: 215mm anti-sticking rollers, with two rotary joints.
4. Roll compound roller: 215mm silicon rubber, with two rotary joints.
5. Roller: 215mm Anilox Anti-Burn, with two rotary joints.
(D) winding part of the
1. Using single-station center winding.
2. Winding tension 100N · M using a set of magnetic powder clutch.
3. Closed reel with 3 "inflatable shaft, paper tube diameter 76mm
4. Winding length of the automatic control can also be manually controlled.
(E) melt plastic boxes
1. Shell used channel, square steel, 1.5mm steel plate welded
2. Melting tank using aluminum alloy casting molding, three-tier structure, heating, walls coated with anti-sticking coating.
3. Use of cast-in heater.
4. Plastic pump heat metering gear pump.
5. Equipped with an external precision filter.
6. Transmission gear motor plastic pump frequency control.
7. Temperature using PID control system, three independent control, respectively.
8. The maximum temperature of 210
9. Heating power is about 24kw
(Vi) the input hose
1. Material: PTFE tube (Import tube core)
2. Diameter: 16mm
3. Length: 3000mm
4. Pressure: 60kg / cm
5. Maximum temperature: 230
6. Heating power: about 700w
(7) transmission parts
1. Main motor: 4kw 1 Taiwan
2. Plastic pump motor: 2.2kw 1 Taiwan and Taiwan
3. Plastic boxes with Gear Motor Chain Couplings
4. Host use of timing belt, chain, gear hybrid transmission.
(8) Gas-controlled part of the
1. Coating Cylinder Head: 63mm 2 Zhi AIRTAC
2. Roll composite cylinder roller: 100mm 2 Zhi AIRTAC
3. Other pneumatic components: relief valve, pull valve, etc.
(9) Electrical parts
1. Host Frequency: 3.7 kw 1 Zhi-Kymmene
2. Plastic boxes Frequency: 2.2 kw 1 Zhi-Kymmene
3. Temperature Controller: Digital PID function of 11 Panasonic
4. Knob Switch: A number of only Schneider
5. Solid State Relay: 40A number of only
6. Heater (coating head): 400w operation of certa
