Features:
1) Red color fiberglass bulb: 57/68/79/93 degrees

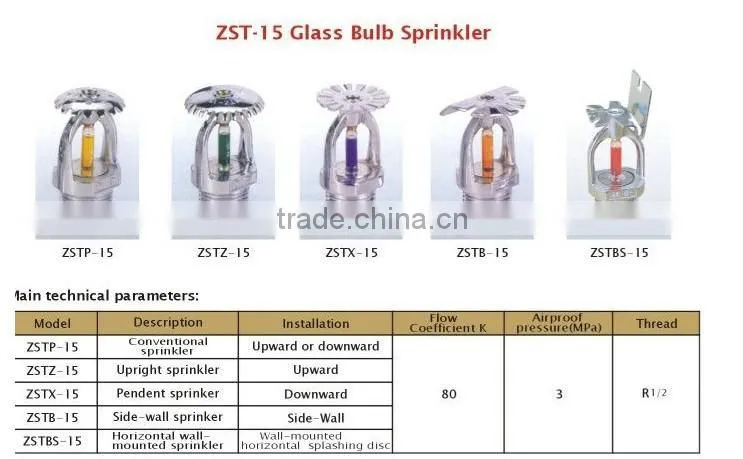

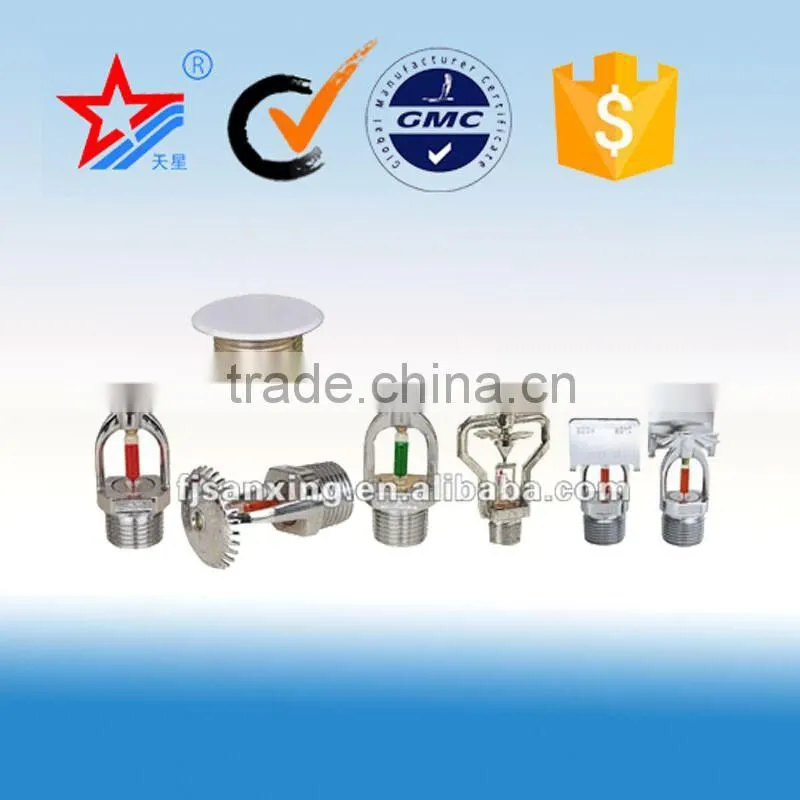

2) Models:
a) ZSTP-15/20: conventional type
b) ZSTZ-15/20: upright type
c) ZSTX-15/20: pendent type
d) ZSTB-15/20: sidewall upright type
e) ZSTB-15/20: sidewall horizontal type, sidewall pendent type
fire fighting sprinklers
.

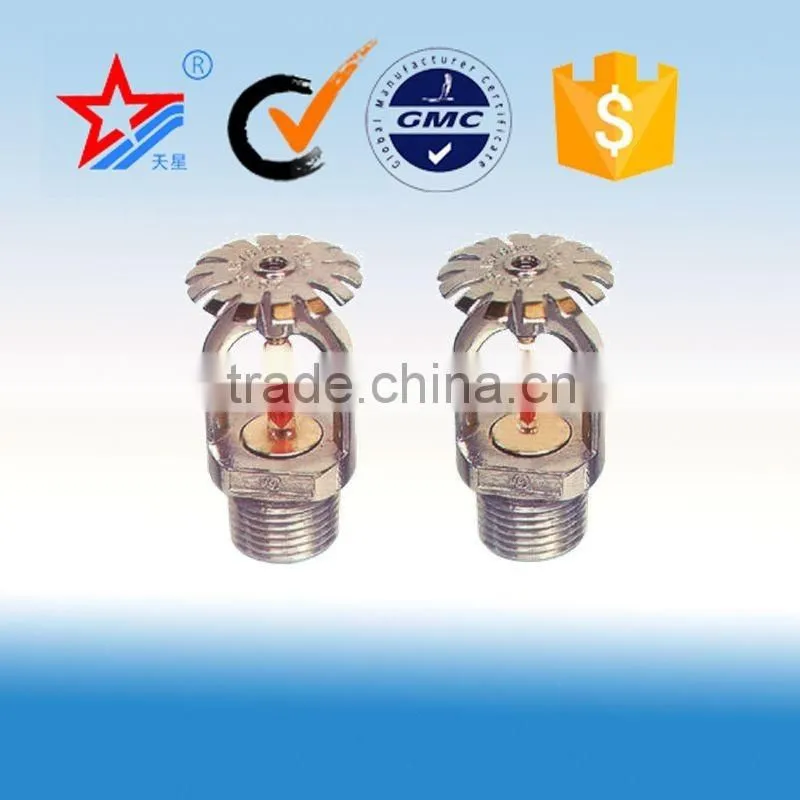

The sprinklers of the pendant installation,ZST-15/20 Fiire Sprinkler Feature:
Bulb : 5 mm/3 mm
Finishes: Chrome
Size: 5 mm/3 mm 1/2'', 3/4"
Nominal operating temperature: 68 Celsius degree
Nominal pressure: 12Bar(1.2MPa)
Airproof test pressure: 30bars(3.0Mpa)
Outlet: 11 ± 0,2mm
Factor K: 80,0
Height: 54 ± 0,8mm
Width: 27,5 ± 0,5 mm
Package:200pcs packing in a carton box
Brief introduction and application
Sprinkler is an important part of wet-type auto spraying system. It is usually installed inside the building and structures with light fire danger, medium fire danger and heavy fire danger, such as workshop, warehouse, hotel, shop, recreational place, hospital, cinema, office building and garage.
The sprinkler is composed of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.
1. Q: What is your product range?
A: We have manufactured the fire hydrants, fire hose, sprinkler system ,fire hose coupling,fire nozzle and other fire equipment since 1993.
2. Q: What is your MOQ?
A: Our MOQ is usually 2000 Meters/500Pieces.
3. Q: What is your delivery time?
A: The time of delivery is 15-30 days.
4. Q: What is the shipping port?
A: We will ship the goods via Xiamen port.
5. Q:What is your payment terms?
A: We usually accept 30% T/T in advance,70% in the period of shipment or L/C.
6. Q: How about the samples?
A:We can send you free samples, you just need pay the freight.
7. Q:How should I contact you?
A: Address:Chenggong Technological Industrial Zone,Nan'an City,Fujian,China.
Quanzhou Sanxing Fire-Fighting Equipment Co.,Ltd
Mobile:+86 18759950981
E-Mail:Sylvia09218(a)
Skype:Sylvia09218
