Specifications
Low Noise Type Pilot Operated Relief Valves S-BG-03/061.max flowaa100aa200L/min;
2.max pressure:25MPa;
3.weight:4.1-5.0kg
2008. is a manufactuter specializing in hydraulic valve and components.
and our products are of good quality and competetive price ,popular among
domestic market and world market. you're welcomed to visit and guide our
factory anytime.please feel free to contact us.
Tel:086-574-62566679
Fax:086-574-62777269
Website: yyguangli.en.china.cn
confact person:David ross Yang

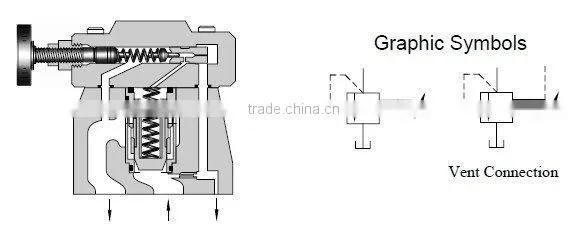

1. Product Name: Low Noise Type Pilot Operated Relief Valves
To protect the pumps and control valves from an excessive pressures, the valves are used to control the pressure in the hydraulic system to constant level. The remote control and unloading can be done by using the vent circuit.
2. Application: These are Pressure Control valves, which are widely used for engineering machinery, metallurgical, machine tool as well as other oil type machine.

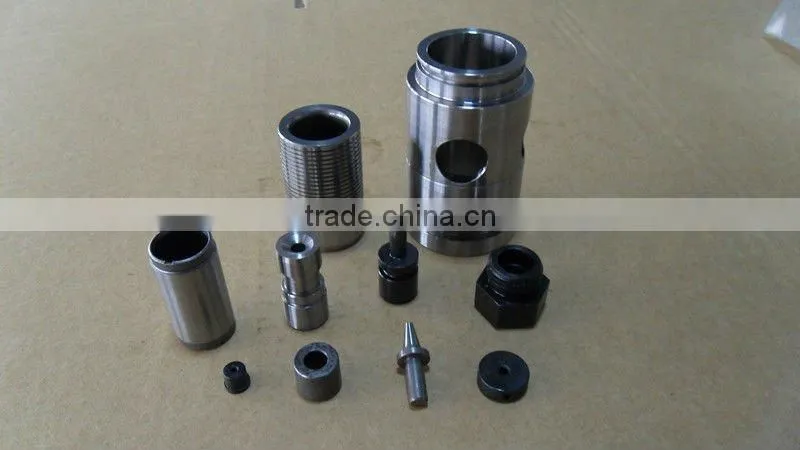

3. Material: Our spools and valve seats are made with 20CrMo, 42CrMo and 38Cr Mo Al. The valve bodies are made of HT300, QT500.

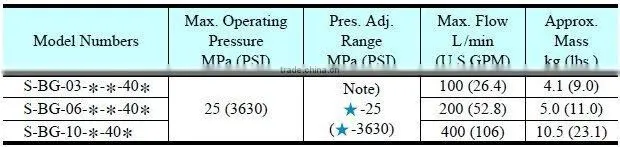

4. Specifications:

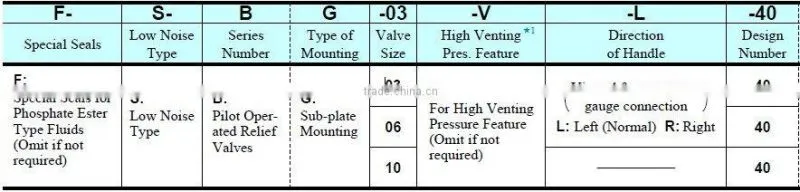

5. Model Number Designation:
