Specifications
Yuken Series Sequence Valves MHA-01 25MPa1.reliable and dependable;
2.long life expectancy;
3.good matching service.
1. Product:

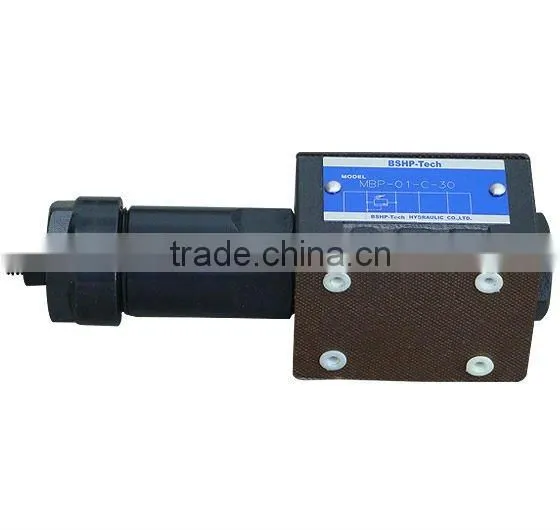

Yuken Series Sequence Modular Valves MHA-01-*-30 25MPa
2. Specifications:

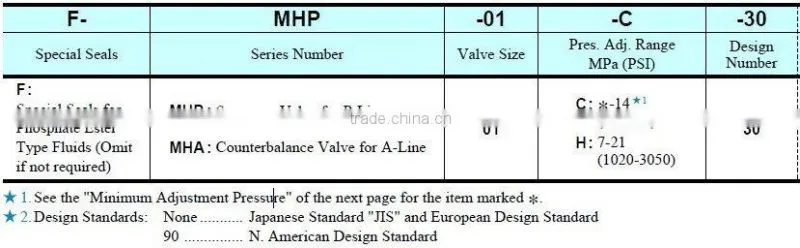

3. Model Number Designation:
4. Instructions:
The minimum adjustment pressure (MHP-01) equals the value obtained from the minimum adjustment pressure characteristics plus the tank line back pressure of the next page. This back pressure should include the value of the T-line pressure drop characteristics of the valves stacked to the base plate side of the modular valve.
To make pressure adjustment, loosen the lock nut and turn the pressure adjustment screw clockwise or anticlockwise. For an increase of pressure, turn the screw clockwise. Be sure to re-tighten the lock nut firmly after making adjustment to the pressure.
The minimum adjustment pressure (MHA-01) equals the value obtained from the minimum adjustment pressure characteristics plus the outlet-side back pressure of the valve on the next page. The outlet-side back pressure should include the values of the A-line and T-line pressure drop characteristics of the valves to be stacked due to the valve with internal drain.
Yuyao BSHP-Tech hydraulic technology CO.,LTD, which was founded in
2008. is a manufactuter specializing in hydraulic valve and components.
and our products are of good quality and competetive price ,popular among
domestic market and world market. you're welcomed to visit and guide our
factory anytime.please feel free to contact us.
Tel:086-574-62566679
Fax:086-574-62777269
Website: yyguangli.en.china.cn
confact person:Mia
