Timer Switch AHC15A

Timer Switch AHC15A photo-1
US$ 6.58 - 7.55 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
sinotimer
Model Number:
AHC15A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name sinotimer
Model Number AHC15A
Theory Electronic
Usage Timer Switch
Type Mini

Specifications

Programmable timer switch AHC15A,THC15A,DHC15A
Time Relay Switch
Daily or weekly 16 on/off
Guide rail DIN rail mounted,



DIN RAIL programmable timer switch



Programmable time switch features



1.DIN rail Installation;

2.Advanced pre-setting one week before;

3.Digital electronic timer switch with daily programs;

4.Repeat programs with 16 on/off setting and manual over-ride;

5.Lithium battery power reserve when electric supply cut off;

6.Auto time error correction +/- 30 sec, weekly.



Programmable time swtich Technical Data



Model

TM-615

Temp.range: -20°C+50°C

Power: 110v AC, 240v AC, 12v DC/AC, 24v DC/AC

Power consumption 7.5 VA (MAX)

Display: LCD

Switching contact: 1 changeover switch

Programs:16 on/off each day or week

Hysteresis 2 sec/day (25°C)

Mini interval: 1min

Capacity: 16(8) 250V AC

Black-out: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40Ma

Average error: 1s/24h, 25°C

Weight: 0.15kg



Timer Keyboards

 Timer Switch AHC15A



Pregramming steps:



Step

Programmable Timer



Key

Programming

1

Press Timer

Setting 1 ON time (display 1 on)

2

Press H+/M+

Setting hours and minutes

3

Press D+

Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR, TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key)

4

Press Timer

Setting 1 off time (display 1 off)

5

Press H+/M+

Setting hours and minutes turn off time

6

Press D+

If you want same set in every day, you need not press this key

7

Repeat step 2~6

Set 2~16 ON/OFF time

8

Press C/R

End

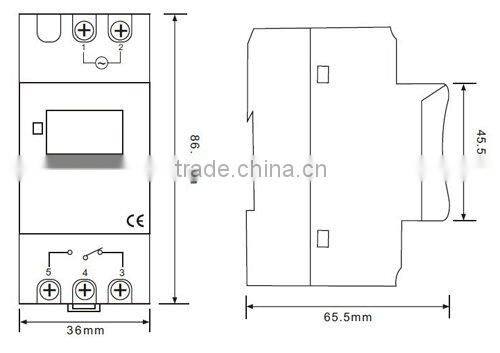

Size:



Timer Switch AHC15A
