Mechanical Sul181h Timer Switch
US$ 6.1 - 9.5
/ Unit
100 Units(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sinotimer | |
| Model Number | Sul181h | Max. Current | 16A | |
| Max. Voltage | 250VAC |
Product Description

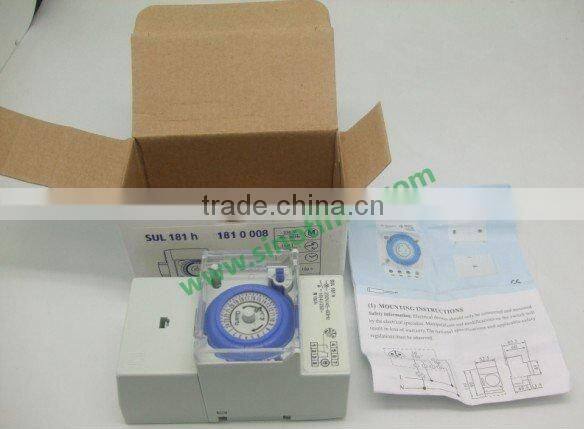

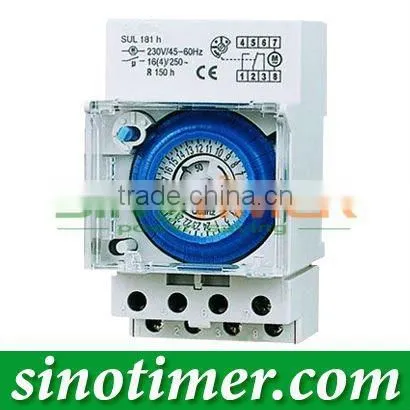

SUL-181h Mechanical Time Switch, 24 Hours timer switch
DIN Guide Rail Programmable Mechanical Timer
HEBEN Timer Switch
24 Hours,24h,Din rail mount
Model: SUL-181h, SUL-161h(without battery)

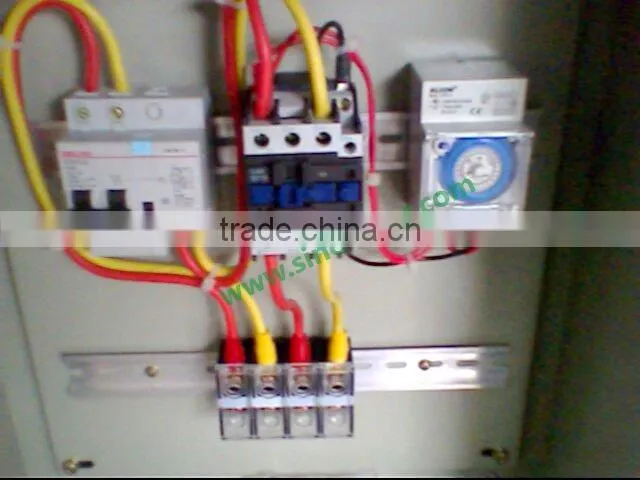

The Mechanical Timer is suit for water heater, Water dispenser, Street lamp, Staircase lamp, Advertising lamp box, Breed aquatics, Irrigation, office power auto control, anywhere need time control in civilian, home or industrial, etc. It can set 8 programs to control ON or OFF of electric appliance in 24 hours or set 48 programs in one week. It can be programmed to avoid the peak of power, and distribute power in time limit to save energy. This timer is a kind of module for DIN guide rail, easy to installation in illumination box, and its so compact size with pretty form.. Its time base component is adopt synch pulse motor and it is strong anti-jamming, small consume with performance stability.
DIN Guide Rail Programmable Mechanical Timer
Main Technological Parameter:
| Model | SUL-181h | SUL-161h |
| Operating Voltage | AC 24-250V 50-60Hz | AC 24-250V 50-60Hz |
| Contact Capasity | AC 220V 16A | AC 220V 16A |
| Contact Resistance | ≤50mΩ | ≤50mΩ |
| Inaulation Resistance | ≥100MΩ | ≥100MΩ |
| Operating Temperature | -40~+55 | -40~+55 |
| Full Timing Range | 24h | 24h |
| Stonage Battery | 150h | Without Battery |
| Minimum Setting Unit | 30Minuters | 30Minuters |
| Setup Times | 30m/time 48 Times | 30m/time 48 Times |
Weight: Approx. 95g

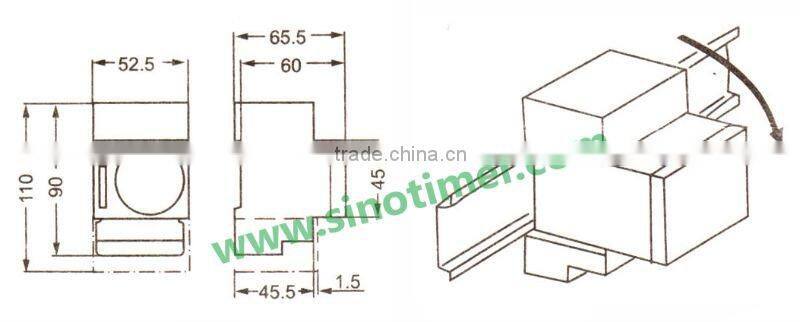

External dimension: 88×52.5×66mm
Quantity per CTN: 100pcs/CTN
Package size: 43.5×20×41cm
External dimension: 88×52.5×66mm
Quantity per CTN: 100pcs/CTN
Package size: 43.5×20×41cm
24 Hours,24h,Din rail mount
