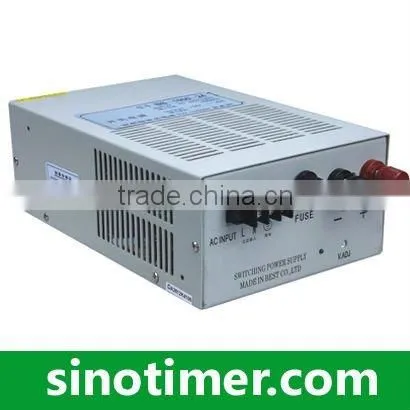

800W Switching Power Supply

800W Switching Power Supply thumbnail-1
800W Switching Power Supply photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
BS-800W
Contact Supplier Request Quote Chat Now
Yueqing Xinyang Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name X&Y
Model Number BS-800W
Output Power Other, >500W
Output Type Single
Input Voltage Other, 110v or 220v
Output Voltage 24v
Output Current 40A

Specifications

Single input 800W power supply
Mini size:250*160*90mm
Universal AC input: 176V~264V
100% full load burn-in test

800W Power supply



Specification

BS-800-24

BS-800-30

BS-800-36

BS-800-48

DC output

24V  33A

30V   26A

36V   22A

48V  17A

Wave and noise

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

83%

85%

85%

85%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

176-264VAC  47-63Hz

AC Inrush current

Cold-start current  45A/230V

OverLoad protection

105%-135% hiccup mode,auto-recovery

Over-Voltage protection

120%-140% rated output voltage

Setup,rise,hold up time

2000ms,50ms,20ms at full load and 230VAC

Withstand voltage

I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute

Isolation resistanc

I/P-O/P   IP/FG   OP-FG:500VDC/100M

Working temperature

-10ºC—+50ºC

Safety Standards

Design refer to GB4943,UL60950,EN60950

EMC Standards

Design refer to GB9254,EN55022 Class B

Weight

3.7Kg
