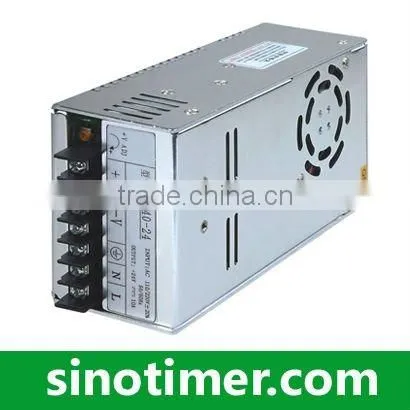

240W Switching Power Supply

240W Switching Power Supply thumbnail-1
240W Switching Power Supply photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
X&Y
Model Number:
S-240W
Contact Supplier Request Quote Chat Now
Yueqing Xinyang Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name X&Y
Model Number S-240W
Output Power 201 - 300W
Output Type Single
Input Voltage Other, 110v or 220v
Output Voltage 24v
Output Current 40A

Specifications

240W power supply
Approvals: CE
Size: 190*93*65mm
2 years warranty

240 power supply:



Specification

S-240-5

S-240-12

S-240-24

S-240-48

DC output

5V  40A

12V    18A

24V  10A

48V   5A

Wave and noise

75mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability

±1%

±1%

±1%

±1%

Load stability

±1%

±1%

±1%

±1%

Efficiency

78%

82%

84%

87%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

85-132VAC/170-264VAC  47-63Hz

AC Inrush current

Cold-start current  25A/115V  50A/230V

OverLoad protection

105%-150% hiccup mode,auto-recovery

Over-Voltage protection

115%-150% rated output voltage

Setup,rise,hold up time

200ms,50ms,20ms at full load and 230VAC

Withstand voltage

I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute

Isolation resistanc

I/P-O/P   IP/FG   OP-FG:500VDC/100MΩ

Working temperature

-10ºC—+50ºC

Safety Standards

Design refer to GB4943,UL60950,EN60950

EMC Standards

Design refer to GB9254,EN55022 Class B

Weight

1.2Kg
