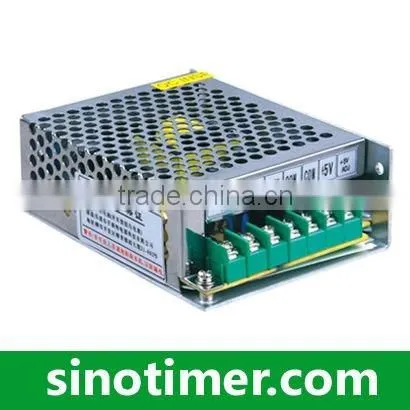

30W Dual Output Power Supply

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

X&Y

Model Number:

D-30W

Yueqing Xinyang Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name X&Y

Model Number D-30W

Output Power 1 - 50W

Output Type Dual

Input Voltage Other, Universal AC input: 90-264VAC

Output Voltage 12v

Specifications

30W Dual Output power supply
100%full load burn-in test
2 years warranty

30W Dual Output power supply

100% full load burn-in test
AC input: 220VAC±20%
Protections:Short circuit/Overload
Low cost,high reliability
Size: 110*78*35mm
1year warranty

Model	BD-30A		BD-30B
Specification	CH1	CH2	CH1	CH2
Specification	+5V 6A	-12V 2A	+5V 6A	-24V 1A
Wave and noise	70mVp-p	180mVp-p	75mVp-p	150mVp-p
Inlet stability	± 0.5%	± 1%	± 0.5%	± 0.5%
Load stability	± 0.5%	± 4%	± 0.5%	± 4%
Efficiency	73%		73%
Adjustable range for DC voltage	CH1: +10, -5%		CH1: +10, -5%
AC input voltage range	85-264VAC 47-63Hz 120-370VDC
AC input voltage range	Cold-start current 30 A/115V 60A/230V
OverLoad protection	105%-150% hiccup mode, auto-recovery
OverLoad protection	CH1.5.75V-6.75V
Setup, rise, hold up time	800ms50ms10ms/115VAC300ms, 50ms, 80ms/230VAC
Withstand voltage	I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working temperature	-10-+/-50
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 class B
Weight	0.52kg
