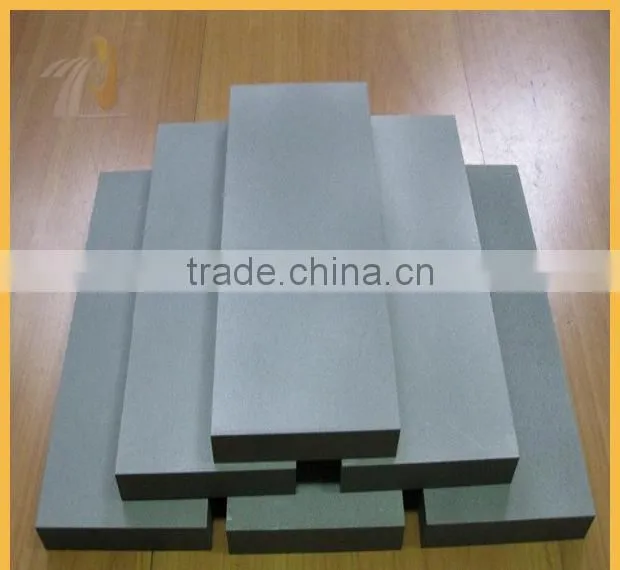

Help CenterASTM B551 Zr702 High Purity 99.95% Zirconium Sheet
Related Products
-
0.25 Dia ASTM B550 Zirconium WireUS$ 55 - 100MOQ: 10 Kilograms -
High Performance ASTM B550 Zirconium WireUS$ 50 - 100MOQ: 10 Kilograms
-
Manufacturer of Zr01(Zr-0) Zirconium WireUS$ 45 - 95MOQ: 10 Kilograms
-
Superior Dia 3mm ASTM B550 Zirconium WireUS$ 55 - 120MOQ: 10 Kilograms
-
ISO 9001 : 2008 ASTM B551-92 Zirconium SheetUS$ 55 - 110MOQ: 5 Kilograms
ASTM B551-92 Zirconium sheet/plate
1.1 Designation, condition and size of zirconium plate, foil and strip
Table1
Designation |
Description |
condition |
size(mm) |
||
Thickness |
Width |
Length |
|||
|
Zr01 Zr-1 Zr702
|
Foil |
Cold rolling R) Recrystallized (Y) Eliminate stress state(m)
|
0.05~0.13 |
50~200 |
≥500 |
Strip |
>0.13~0.5 |
50~300 |
≥300 |
||
Plate |
>0.3~10.0 |
50~600 |
≥500 |
||
1.2 Tolerance of thickness, width and length
Table 2 unit:mm
Thickness |
Thickness tolerance |
Width |
Width tolerance |
Length |
Lengthtolerance |
>0.05~0.07 |
±0.007 |
50~150 |
±2.0 |
100~1200 |
±5.0 |
>0.07~0.1 |
±0.010 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>0.1~0.13 |
±0.025 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>0.13~0.2 |
±0.04 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>0.2~0.4 |
±0.05 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>0.4~0.65 |
±0.08 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>0.65~1.0 |
±0.10 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>1.0~1.5 |
±0.13 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>1.5~1.8 |
±0.15 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>1.8~2.5 |
±0.18 |
50~200 |
±2.0 |
100~1200 |
±5.0 |
>2.5~3.0 |
±0.23 |
50~400 |
±3.0 |
100~1200 |
±5.0 |
>3.0.~3.5 |
±0.25 |
50~400 |
±3.0 |
100~1200 |
±5.0 |
>3.5~4.0 |
±0.30 |
50~400 |
±5.0 |
100~1200 |
±5.0 |
>4.0~5.0 |
±0.35 |
50~400 |
±5.0 |
100~1200 |
±5.0 |
>5.0~6.0 |
±0.40 |
50~400 |
±5.0 |
100~1200 |
±5.0 |
>6.0~8.0 |
±0.45 |
50~400 |
±5.0 |
100~1200 |
±5.0 |
>8.0~10.0 |
±0.50 |
50~400 |
±5.0 |
100~1200 |
±5.0 |
