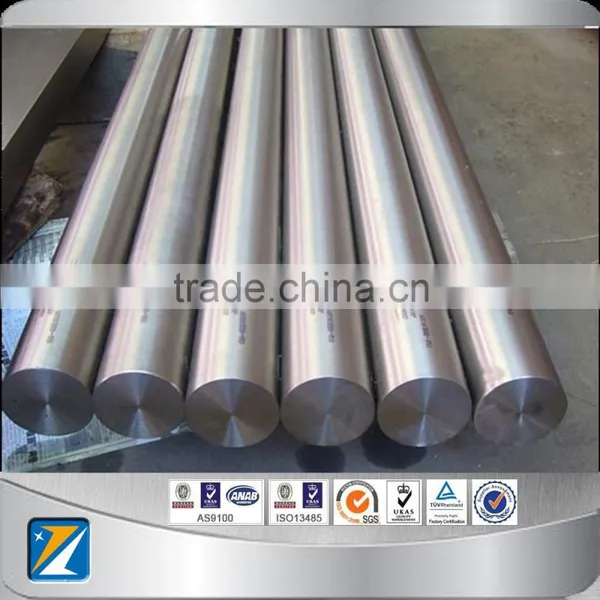

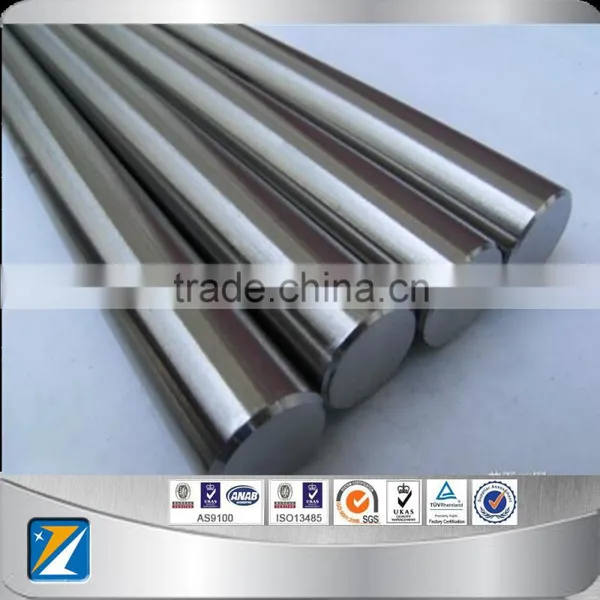

Tantalum Bar / Tantalum Rod (Ta Bar / Ta Rod)
Tantalum (Ta) is a dark blue-gray metal that is very heavy, ductile and hard and has high corrosion resistance. Tantalum is especially resistant to chemicals at temperatures below 150 °C and can only be dissolved with hydrofluouric acid. It has the fourth highest melting point of all metals and is able to form extremely thin and protective oxide layers for high-quality capacitors. Tantalum rod and bar are mainly used as high-temperature alloys containing tantalum, tantalum-based heat-resistant and corrosion-resistant alloy additives.
Applications:
- Used in laboratory equipment.
- Used as a substitute for platinum.
- Used in manufacturing super alloys and electron-beam melting.
Specifications of SAM Tantalum Bar / Rod:
Diameter: 1 mm ~ 100mm
Length :< 10 feet
Material: Pure tantalum: R05200, R05400;
Tantalum Niobium Rod / Bar: R05240 (Ta-40Nb);
Tantalum Tungsten Rod / Bar: R05252 (Ta-2.5W), R05255 (Ta-10W).
Standard: ASTM B 365-98 Purity:≥99.95%
Medical Grade Tantalum Rod / Tantalum Bar
Material Grade |
Tolerances |
Min 99.9% Tantalum |
Better than +/- 0.02 mm |
ASTM F560 / RO5400 compliant |
Better than +/- 0.001" |
General Product List
Catalog Number |
Chemical Formula |
Diameter |
Purity |
Temper |
TA007910 |
Ta |
1.0 mm |
99.90% |
As Rolled |
TA007915 |
Ta |
1.5 mm |
99.90% |
Annealed |
TA007917 |
Ta |
1.7 mm |
99.90% |
Annealed |
TA007920 |
Ta |
2.0 mm |
99.90% |
Annealed |
TA007926 |
Ta |
3.0 mm |
99.90% |
Annealed |
TA007930 |
Ta |
5.0 mm |
99.90% |
Annealed |
TA007935 |
Ta |
6.35 mm |
99.90% |
Annealed |
TA007940 |
Ta |
10.0 mm |
99.90% |
Annealed |
TA007942 |
Ta |
12.7 mm |
99.90% |
Annealed |
TA007945 |
Ta |
16 mm |
99.90% |
As drawn |
TA007948 |
Ta |
18 mm |
99.90% |
Annealed |
TA007950 |
Ta |
20.0 mm |
99.90% |
Annealed |
TA007955 |
Ta |
25 mm |
99.90% |
As Rolled |
TA007960 |
Ta |
30.0 mm |
99.90% |
Unannealed |
TA007961 |
Ta |
30 mm |
99.90% |
As Rolled |
TA007970 |
Ta |
40.0 mm |
99.90% |
Unannealed |
TA007972 |
Ta |
50 mm |
99.90% |
Annealed |
TA007975 |
Ta |
75 mm |
99.90% |
Annealed |
TA007995 |
Ta |
100 mm |
99.90% |
As Rolled |
Stanford Advanced Materials supplies different kinds of Tantalum Rod / Tantalum Bar and we accept custom configurations.
Other information for your reference Chemical Composition:
Element |
R05200 (%,Max) |
R05400 (%,Max) |
C |
0.01 |
0.01 |
O |
0.015 |
0.03 |
N |
0.01 |
0.01 |
H |
0.0015 |
0.0015 |
Fe |
0.01 |
0.01 |
Mo |
0.02 |
0.02 |
Nb |
0.1 |
0.1 |
Ni |
0.01 |
0.01 |
Si |
0.005 |
0.005 |
Ti |
0.01 |
0.01 |
W |
0.05 |
0.05 |
Tantalum and Tantalum Alloy
- R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both
- R05400, unalloyed tantalum, powder-metallurgy consolidation.
- R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace of vacuum-arc melt, or both.
- R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both.
- R05240, tantalum alloy, 60 % tantalum, 40 % niobium, electron-beam furnace or vacuum-arc melt.
