mobile pos terminal with data scanner superiority

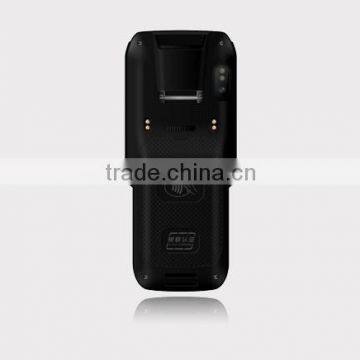

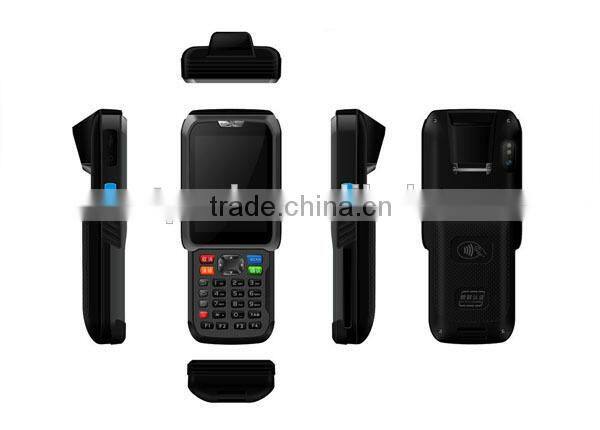

mobile pos terminal with data scanner picture
mobile pos terminal with data scanner introduction

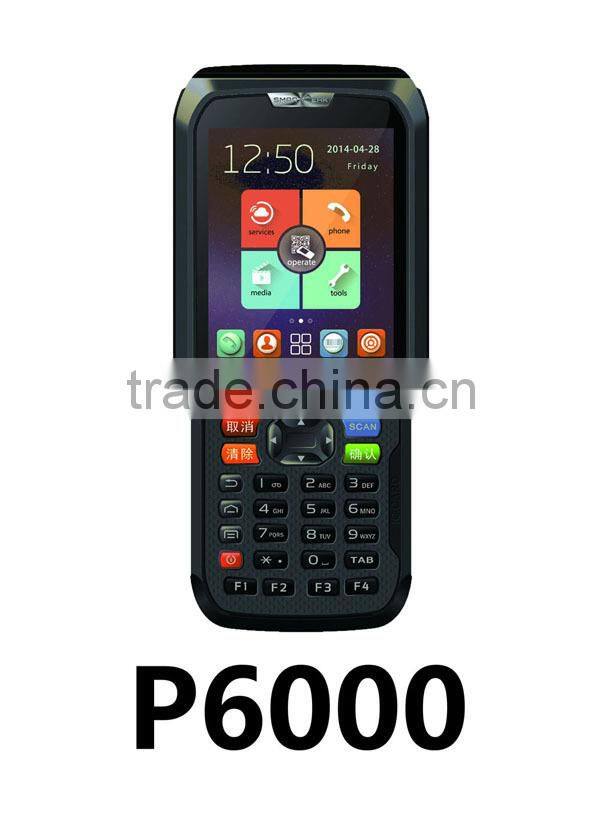

P6000 is an integrated financial POS terminal with data capture function, based on Android 4.3 OS. It supports magnetic strip card, IC card, contactless card, sound wave and other payment. Equipped with 1D/2D scanner and NFC reader and writer mould. It offers powerfull network transmission and wireless application function, voice call and data transmission whenever and wherever. P6000 is equipped with 4000mAh lithium battery which offers excellent power life and more than 8 hours working duration. Integrated with traditional POS and intelligent PDA. It provides forceful support for outdoor operation like logistics and express or new business expanding based on payment.
1. Powerfull performance and rich function
Intelligent: based on Android 4.3, smartpeak SP-UI. Quad-core: Adopts Qualcomm MSM8926 or 8612 quad-core1.2GHz cpu. Identification: high quality 1D/2D scan engine, support 13.56MHz RFID.
2. Multiple payment
Payment: magnetic strip card, IC card, contactless card, SAM card.
2D: support any 2D payment software. Sound wave: support alipay sound wave payment.
3. Multiple network transmission
WLAN: 802.11 b/g/n standard wireless LAN. Bluetooth: blue tooth 4.0+EDR; 4G: 3G (CDMA2000/WCDMA/GSM), 4G(TD-LTE).
4. Safe and reliable design
Safety: built-in pin pad insure the payment safety. Certification: ISO7816, PBOC, qPBOC and EMV.
5. Ergonomic design, comfortable to use
Ergonomic design: back, scan, navigation keys make it more convenient.
3.5 inch screen, 30 keys, totally meets the complex system operation requirements.
mobile pos terminal with data scanner specification
Physical Parameters | |
Dimensions |
182.4mm H * 75.6mm/68.4mm W * 41mm/27.9mm/33.4mm D |
Weight |
400g (battery included) |
Operating Temp |
-20°C ~ 60°C |
Storage Temp |
-40°C ~ 80°C |
Humidity |
10%~90% RH non-condensing |
Drop Test |
1.2-meter drop protection |
Roller Drop Test |
500 times |
IP grade |
IP65 |
ESD protection |
±8KV contact discharge; ±15KV air discharge |
System Parameters | |
CPU |
Qualcomm MSM8926 quad-core 1.2GHz |
OS |
Android 4.3 |
RAM/ROM |
ROM 4GB eMMC; RAM 1GB DDR2; Support external micro SD card, 32 GB at most |
Display |
3.5 inch capacitive, multi touch; 480*640, IPS display |
Keypad |
30 physical keys (include System key, Scan key, Custom key and POS key) |
Battery |
Lithium polymer battery, 4000mAh |
Functional Configuration | |
Bar Codes Scanning |
1D Motorola SE955 (other brand optional), 2D Motorola SE4500 |
Camera |
Rear camera 5M AF (support flashlight) |
Printer |
External bluetooth printer |
NFC |
Support ISO14443/ISO15693 standard 13.56MHz RFID tag recognition |
Navigation |
Built-in GPS, support AGPS |
Indicator Light |
System indicator light, POS indicator light |
Audios |
Built-in speaker, buzzer, microphone, 3.5mm stereo headphone jack, vibrator |
Sensors |
Gravity sensor; Ambient light sensor |
POS | |
Magnetic Strip Card |
Triple track MSR, bi-directional swiping, ISO7811,7812 |
IC Card |
1 Solt, support 1.8V/3V/5V, ISO7816, PBOC and EMV |
Contactless card |
13.56MHz, ISO/IEC 14443 Type A/B, qPBOC |
SAM Card |
1 SAM Solt, ISO7816 |
Cipher Keyboard |
Built-in keypad |
Network Parameters | |
Network Type |
TD-LTE/TD-SCDMA/WCDMA/GSM/CDMA2000/CDMA |
Network Spectrum |
TD-LTE Band38/40; TD-SCDMA/HSPA Band34/39; WCDMA/HSPA 2100MHz; GSM/GPRS/EDGE 850/900/1800/1900MHz; CDMA2000/CDMA 1X 800 MHz |
WLAN |
802.11 a/b/g/n Built-in Antenna |
Voice/Data Service |
Support |
WPAN |
Bluetooth V4.0 + EDR |
External Interface | |
USB Interface |
Micro USB2.0, support USB OTG |
Charger Jack |
Micro USB |
Communication |
USB |
Development Environment | |
System Environment |
Android4.3/SP-UI |
Development Environment |
SP-SDK |
Management Software |
SP-PC management suite/MDM |
mobile pos terminal with data scanner accessories
1. Support google play.
2. Perfect ODM/OEM service.
3. 12 month warranty.
4. SDK support.
