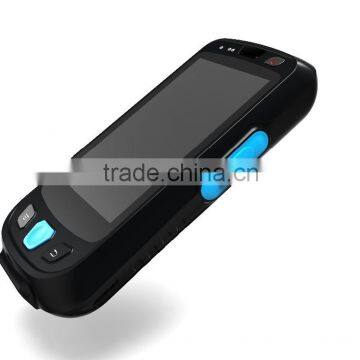

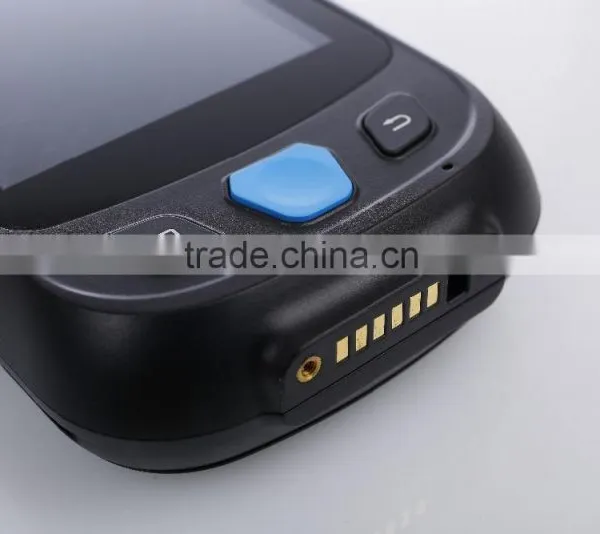

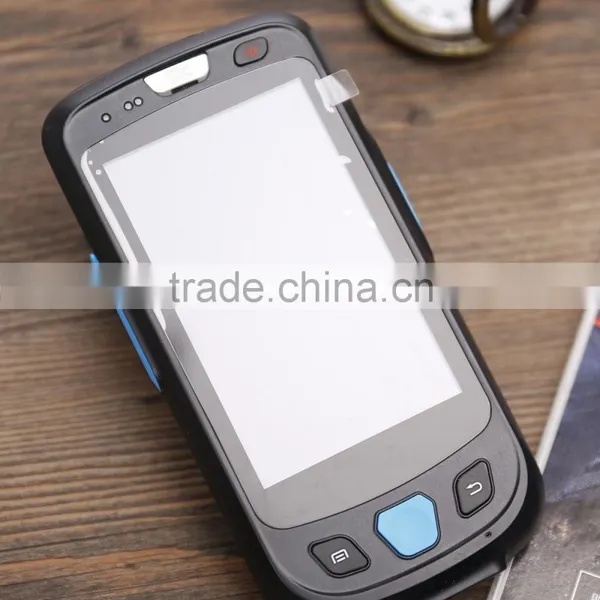

Help CenterAndroid OS PDA for Tracking/logistic/warehouse Management
Related Products
-
Cheap 1d Barcode Scanner Sim Card C6000US$ 0.01 - 500MOQ: 1 Piece -
Rugged Usb Wifi Barcode Scanner Android C6000US$ 0.01 - 500MOQ: 1 Piece
-
Mini Wireless Laser Barcode Scanner With Memory C6000US$ 0.01 - 500MOQ: 1 Piece
-
Android Wifi Mobile Pda Barcode Laser Scanner C3000US$ 0.01 - 400MOQ: 1 Piece
-
Cheapest Portable 2d Bluetooth Barcode Scanner C3000US$ 0.01 - 400MOQ: 1 Piece
Physical parameters
| Dimension | 182.4mm*75.6mm/68.4mm*41mm/27.9mm/33.4mm |
| Weight | TBD |
| Opreating Temp | -20°C ~ 60°C |
| Storage Temp | -40°C ~ 80°C |
| Relative Humidity | 10%-90%(no condensation) |
| Crash-proof | passed 1.2-meter falling test |
| Tumble Test | IP65 |
| Industrial-grade | tumbles 500 times |
| Anti-static | ±8KV contact discharge;±15KV air discharge |
| CPU | Qualcomm quad-core 1.2GHz |
| Operating system | Android4.3 |
| Memory | ROM 4GB eMMC;RAM 1GB DDR2; support 32 GB external memory card at most |
| Touch Screen | 3.5“ VGA,IPS WVGA |
| Keypad | 30 physical keys, w/Android Home key,scan key,custom key,POS pin number key and comand key |

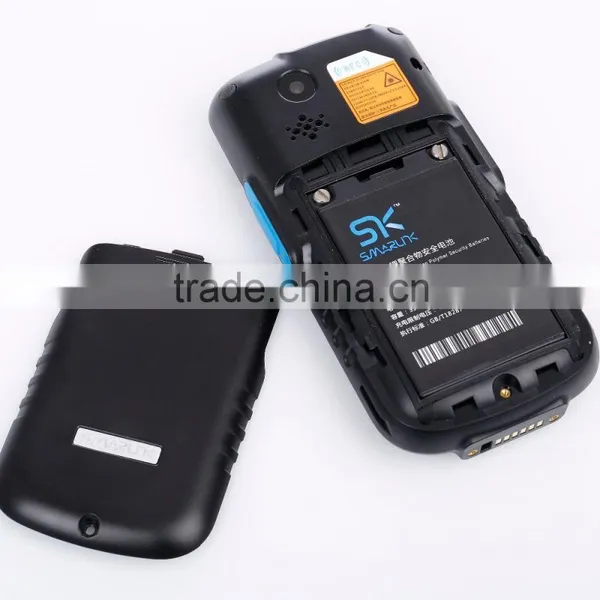

| Battery | 4000mAh |

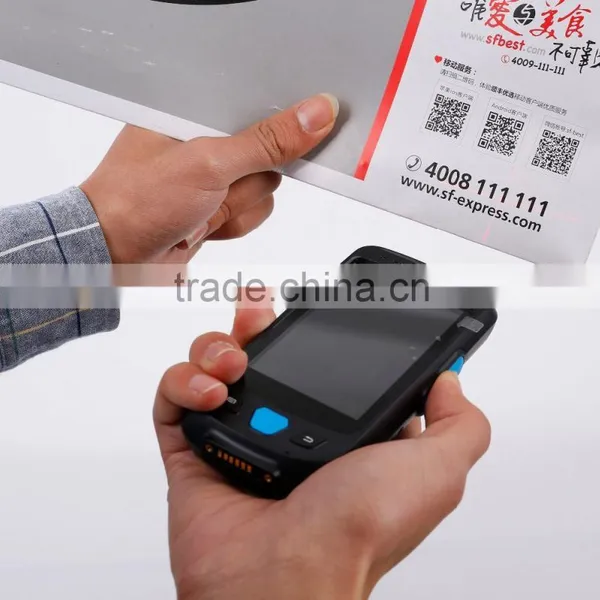

| Bar Codes Scanning | 1D Motorola SE955(other brand avalibale),2D /Motorola SE4500 |
| Camera | 5M |
| Printer | W/bluetooth printer |
| NFC | support ISO14443/ISO15693 13.56MHz RFID tag identification |
| Navigation | GPS/AGPS |
| Indicator Light | system indicator light, POS indicator light |
| Audio system | built-in speaker, microphone, stereo headphone jack, vibrator |
| Sensor |
gravity sensor
ambient light sensor
|
| Magnetic Strip Card Reader | support track 1/2/3,bi-directional swiping,support ISO7811,7812 |
| IC Card Reader | 1 SD for user,support 1.8V/3V/5V card,support ISO7816,PBOC & EMV |
| Non-contact Card Reader | 13.56MHz,ISO/IEC 14443 Type A/B,support qPBOC |
| SAM Card Reader | 1 PSAM SD,support ISO7816 |
| Pin Pad | password keyword inside |
| Network Type | TD-LTE/TD-SCDMA/WCDMA/CDMA2000/GSM |
| Network Spectrum | TD-LTE Band38/40;TD-SCDMA Band34/39;WCDMA UTMS 2100MHz; GSM/GPRS/EDGE 850/900/1800/1900MHz;CDMA2000 1xEV-DO 800 MHz |
| Voice/Data Service | Support China mobile4G,3G,2G,China UnicomTD-LTE 4G,3G,2G, China Telecom TD-LTE 4G,3G,2G |
| WLAN | 802.11 a/b/g/n inner antenna |
| WPAN | Bluetooth V4.0 + EDR |
| USB Interface | Micro-USB2.0,OTG |
| Charge Jack | Micro-USB |
| Communication Interface | USB |
| System Environment | Android4.3/SP-UI |
| Development Environment | SP-SDK |
| Management Sofeware | SP-PC management suite/MDM |

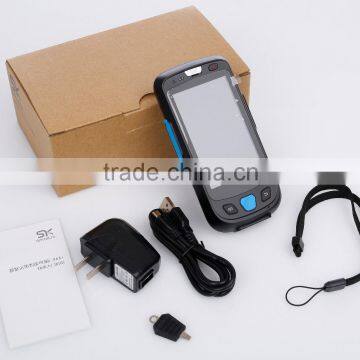

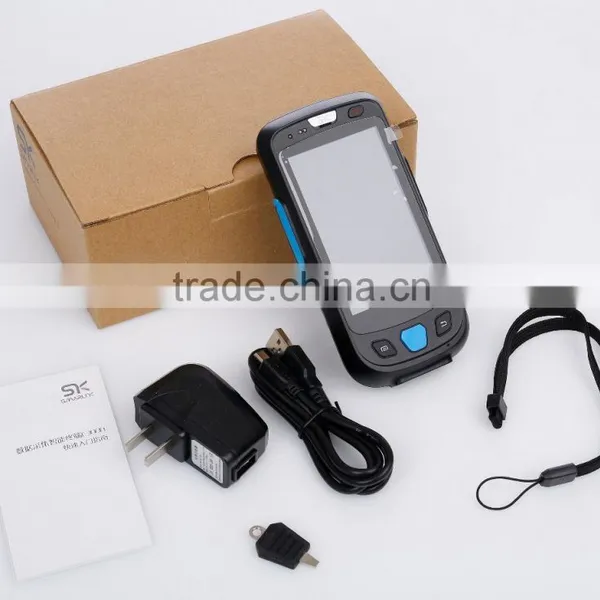

| Packaging Details: | Android handheld terminal with bar code scanner NFC C3000 Package 1* 3300mAh battery 1* USB cable 1* Earphone 1* Power adaptor 1* User Manual 1* Screwdriver |
|---|---|
| Delivery Detail: | 3-5 working days |
1.Perfect ODM/OEM service.
2.12 month warranty.
Warranty and AMC
1 year (12 months upon receipt) with extended AMC on paid service basis, extended AMC will be payable, TBD, case by case by negotiation
Advance Replacement
2% extra of contractual quantity will be provided on FOC basis in local stock of each individual market. In the event of a hardware failure,smartpeakwill provide advance replacement service to Customer in accordance with Warranty, AMC or Support Service clauses to ensure Customers’ services, usability and availability. Local agent will collect faulty items and return to China via shipper for refurbishment, substitution, repairing and updating, etc. All after-sale services will be free of charge within warranty period and will be payable thereafter.
Return to Factory Repair
All claims filed for hardware units that fail (under warranty, not under a maintenance contract) will be repaired or replaced (with refurbished equipment) at the sole discretion of smartpeak. For those customers located outside P.R. China, it should be noted that smartpeak‘srepair center(s) are in China and additional time (shipment days) should be factored into the overall repair time for transit to and from China.
Dead on Arrival (DOA)
For hardware that is considered Dead On Arrival (DOA) within the first thirty (30) days from the shipment date of Product fromsmartpeakmanufacturing facilities, smartpeakwill provide an expedited replacement of the affected field replaceable unit (FRU). A new unit will be made available for shipment from a designated manufacturing facility within three (3) business days of acceptance.
Non-Contracted/Out of Warranty
Additional requirements for units that or not currently under a maintenance contract or no longer under warranty:smartpeakwill confirm the hardware failure and provide a quote to the customer for the repair or replacement of the hardware. The customer is required to provide a P.O. for the repair or replacement costs associated with the hardware failure. Once the P.O. is received, via fax or email,smartpeakwill process the case and send further instructions to the customer or shipment details.
3.SDK support.
1Q:Are you manufacturer?
A:Yes.Our company headquarters is located in SHANGHAI of China, factory in SHANGHAI
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don’t hesitate to contact us.We will be more than happy to serve you.
