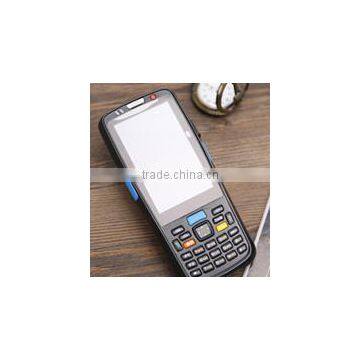

Help CenterAndroid Symbol Barcode Scanner Pda With Memory WiFi BT NFC
Related Products
-
Data Collector 1D/QR Barcode Scanner/barcode Reader /handheld TerminalUS$ 1 - 400MOQ: 1 Set -
Small Portable Barcode qr Code Pda ScannerUS$ 0.01 - 500MOQ: 1 Piece
-
Rfid Pda Bluetooth Data Collector Mobile Handheld ComputersUS$ 0.01 - 500MOQ: 1 Piece
-
Mobile Handheld Barcode Scanner WifiUS$ 0.01 - 500MOQ: 1 Piece
-
Rugged Android Phone Smart Mobile TerminalUS$ 0.01 - 500MOQ: 1 Piece
Physical parameters | |
Dimensions | 164mm*72mm*32mm(at most) |
Weight | 275g(battery included) |
Opreating Temp. | -20°C~60° |
Storage Temp. | -40°C~80° |
Relative Humidity | 95%(no condensation) |
Crash-proof | 4 corners and 6 surfaces can undertake 20 times' 1.2-meter level drop test |
Tumble Test | tumbles 500 times within DIA 1M |
Industrial-grade | IP65 |
Anti-static | ±8KV contact discharge;±12KV air discharge |
System Parameters | |
CPU | Qualcomm MSM8625Q quad-core 1.2GHz |
Operating system | Android4.1 |
Memory | 4GBeMMC/1GBDDR2/support 32 GB external memory card at most |
Touch Screen | 3.7 inches IPS & WVGA(480*800) support 5-point capacitive touch screen KangNing Gorilla Glass |
Keypad | 28 numeral keys/functional keyboard super abrasion IML overprint keyboard inside the membrane |
Battery | lithium polymer battery,3.7V,3300mah/150mah |
Functional Configuration | |
Bar Codes Scanning | one dimensional bar codes scanning/MotorolaSE955(optional) two dimensional bar codes scanning/MotorolaSE4500(optional) |
Camera | 5M auto focusing |
NFC | support ISO14443/ISO15693 standard 13.56MHz RFID identification |
Navigation | GPS/A-GPS Beidou second generation navigation module |
Indicator Light | charging indicator light scanning indicator light |
Audio system | built-in speaker, microphone |
Sensor | triaxial gravity sensor |
Internet Parameters | |
Network Type | WCDMA/CDMA/GSM |
Network Spectrum | GSM/EDGE:850/1900/900/1800 WCDMA:2100/900 CDMA:800/1900 |
WLAN | 2.4GHz/5GHz dual band WiFi,support IEEE802.11a/b/g/n WEP,WPA,WPA-PSK,WPA-v2.0 safety standards |
Voice/Data Service | support China Mobile, China Telecom and China Unicom in mainland China |
WPAN | BluetoothV4.0+EDR |
External Interface | |
USB Interface | Micro-USB2.0/OTG |
Charge Jack | support 2A quick charge (base required) |
Power Supply Jack | support 5V/500ma external power supply |
Communication Interface | RS232 |
Development Environment | |
System Environment | Android4.1/SP-UI |
Development Environment | SP-SDK |
Management Sofeware | SP-PC management suite/MDM |
| Packaging Details: | Android handheld AIDC terminal with bar code scanner NFC C5000 Package 1* 3300mAh battery 1* USB cable 1* Earphone 1* Power adaptor 1* User Manual 1* Screwdriver |
|---|---|
| Delivery Detail: | 3-5 working days |
1.Perfect ODM/OEM service.
2.12 month warranty.
3.SDK support.
Warranty and AMC
1 year (12 months upon receipt) with extended AMC on paid service basis, extended AMC will be payable, TBD, case by case by negotiation
Advance Replacement
2% extra of contractual quantity will be provided on FOC basis in local stock of each individual market. In the event of a hardware failure,smartpeakwill provide advance replacement service to Customer in accordance with Warranty, AMC or Support Service clauses to ensure Customers’ services, usability and availability. Local agent will collect faulty items and return to China via shipper for refurbishment, substitution, repairing and updating, etc. All after-sale services will be free of charge within warranty period and will be payable thereafter.
Return to Factory Repair
All claims filed for hardware units that fail (under warranty, not under a maintenance contract) will be repaired or replaced (with refurbished equipment) at the sole discretion of smartpeak. For those customers located outside P.R. China, it should be noted that smartpeak‘srepair center(s) are in China and additional time (shipment days) should be factored into the overall repair time for transit to and from China.
Dead on Arrival (DOA)
For hardware that is considered Dead On Arrival (DOA) within the first thirty (30) days from the shipment date of Product fromsmartpeakmanufacturing facilities, smartpeakwill provide an expedited replacement of the affected field replaceable unit (FRU). A new unit will be made available for shipment from a designated manufacturing facility within three (3) business days of acceptance.
Non-Contracted/Out of Warranty
Additional requirements for units that or not currently under a maintenance contract or no longer under warranty:smartpeakwill confirm the hardware failure and provide a quote to the customer for the repair or replacement of the hardware. The customer is required to provide a P.O. for the repair or replacement costs associated with the hardware failure. Once the P.O. is received, via fax or email,smartpeakwill process the case and send further instructions to the customer or shipment details.
3.SDK support.
1.Q:Are you manufacturer?

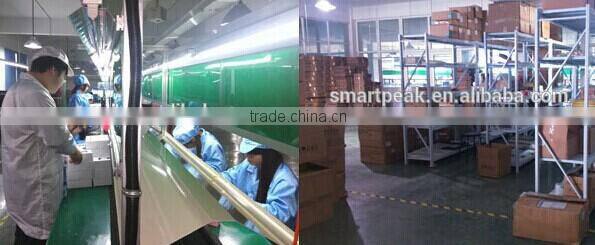

A:Yes.Our company headquarters is located in SHANGHAI of China, factory in SHANGHAI
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don’t hesitate to contact us.We will be more than happy to serve you.
