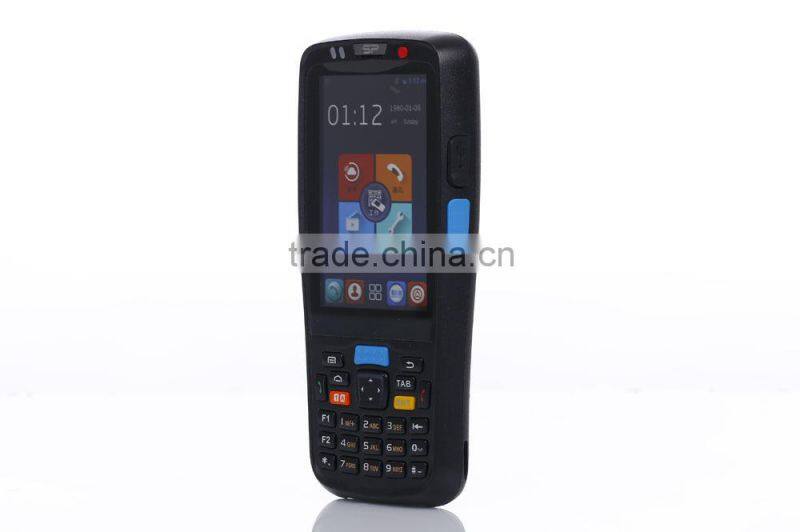

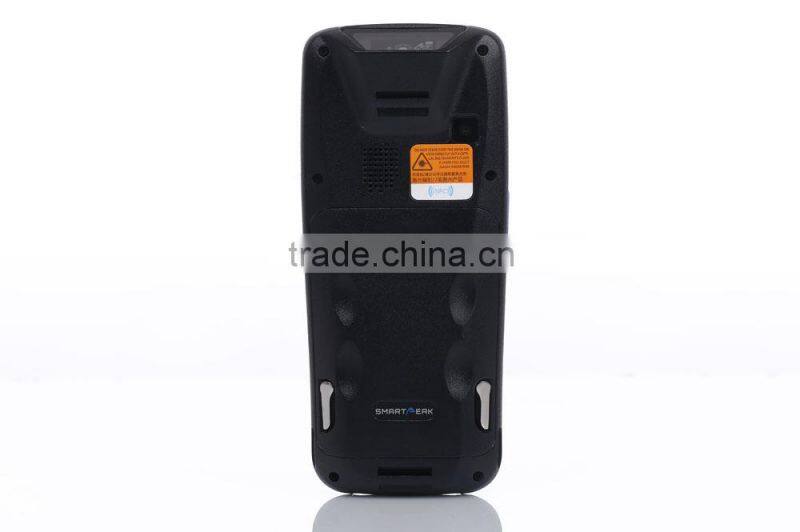

All in One Card Reader Mobile Handheld Pda Barcode Scanner

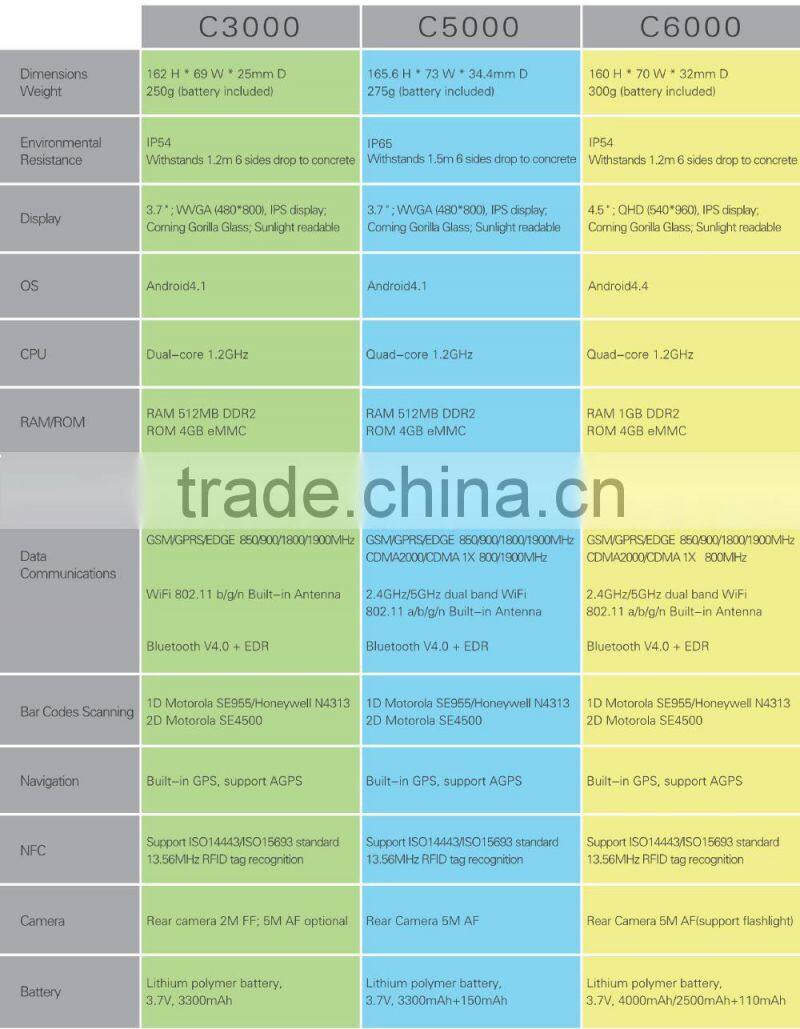

Physical parameters

Dimensions

165.6mm H * 73mm W * 34.4mm D

Weight

275g (battery included)

Operating Temp

-20°C~60°

Storage Temp

-40°C~80°

Humidity

95% RH non-condensing

Drop Test

1.2-meter drop protection

Roller Drop Test

500 times

Industrial grade

IP65

ESD protection

±8KV contact discharge; ±12KV air discharge

System Parameters

CPU

Qualcomm quad-core 1.2GHz

OS

Android 4.1

RAM/ROM

ROM 4GB eMMC; RAM 512MB DDR2; Support external micro SD card, 32 GB at most

Display

3.7 inches capacitive, multi touch; 480*800, ultra wide Angle IPS display,Corning Gorilla Glass (Compatible with resistive screen)

Keypad

28 physical keys (include Power key, Scan key, Custom key, Navigation key, Number keys, Function keys ); Super abrasion IML overprint keyboard inside the membrane

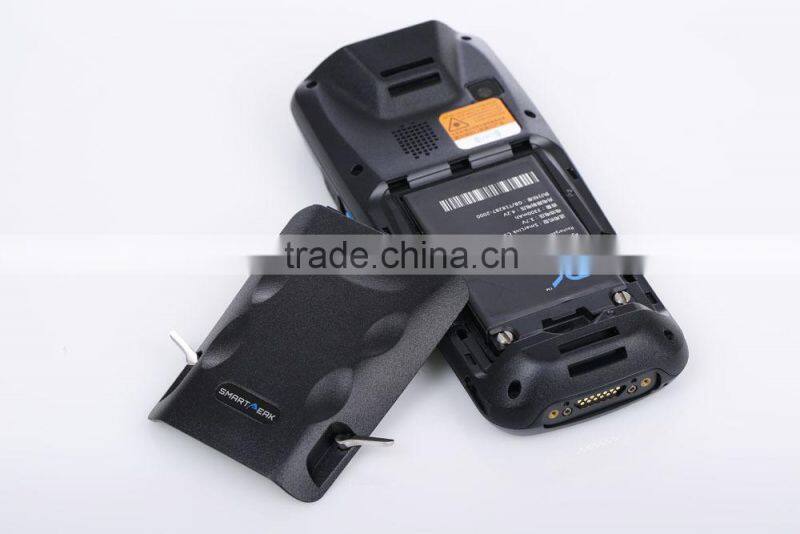

Battery

Lithium polymer battery, 3.7V, 3300mAh+150mAh

Functional Configuration

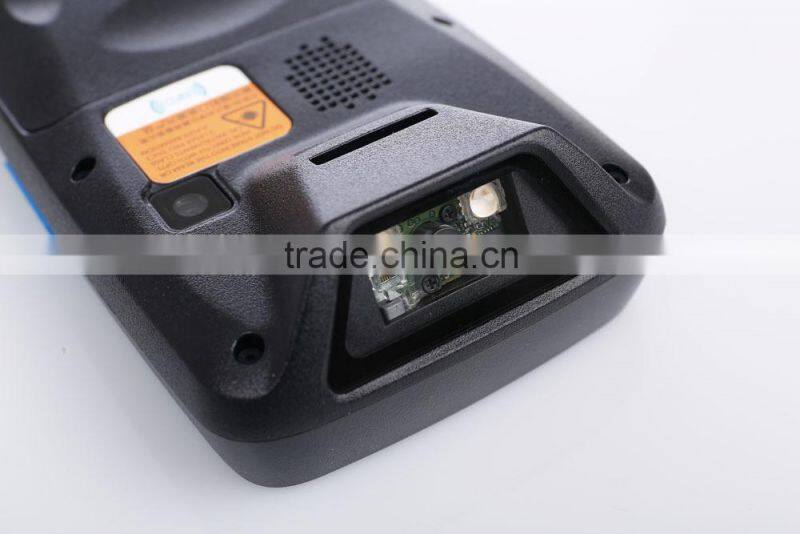

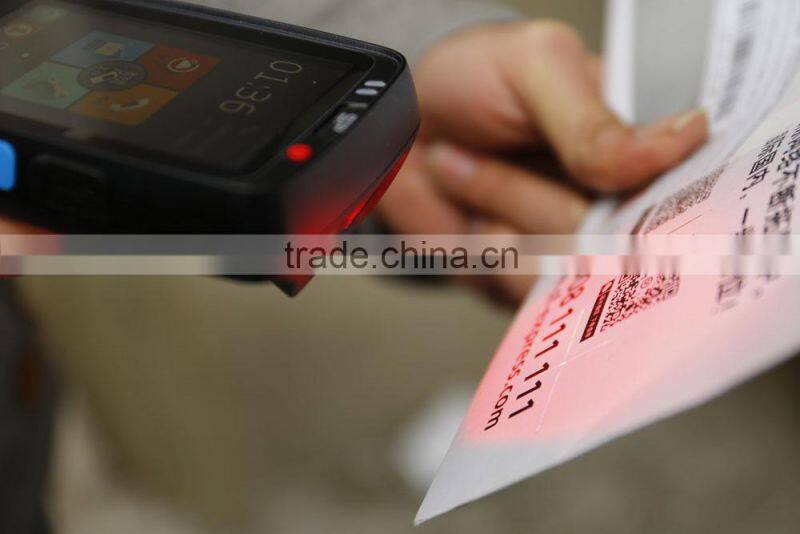

Barcode scanning

1D Motorola SE955 (other brand optional), 2D Motorola SE4500

Camera

Rear Camera 5M AF

NFC

Support ISO14443/ISO15693 standard 13.56MHz RFID tag recognition

Navigation

Built-in GPS, support AGPS; BDS second generation optional

Indicator Light

System indicator light; Scanning indicator light

Audios

Built-in speaker, receiver, microphone, vibrator

Sensors

Gravity sensor

Network Parameters

Network Type

WCDMA/GSM/CDMA2000/CDMA 1X

Network Spectrum

WCDMA/HSPA  2100/900MHz; GSM/GPRS/EDGE  850/900/1800/1900MHz; CDMA2000/CDMA 1X  800/1900MHz

WLAN

2.4GHz/5GHz dual band WiFi; 802.11 b/g/n Built-in Antenna

Voice/Data Service

Support

WPAN

BluetoothV4.0+EDR

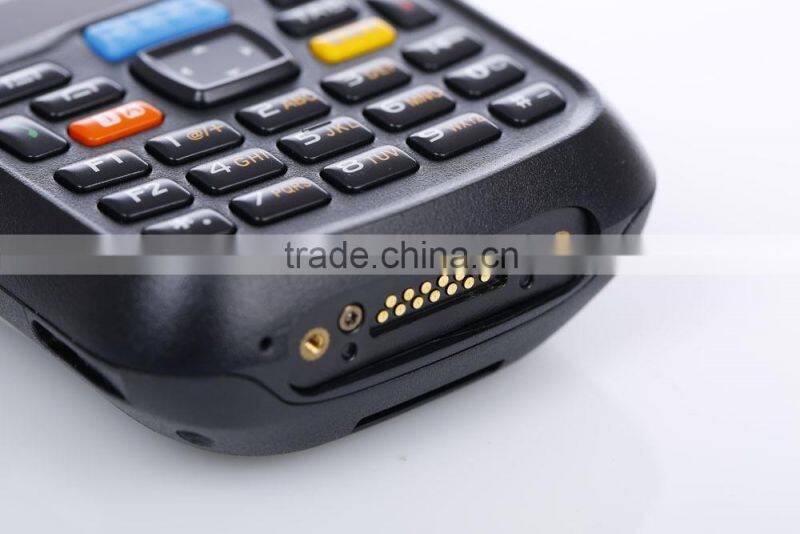

External Interface

USB Interface

Micro USB2.0, support USB OTG

Charger Jack

Micro USB2.0, 1A quick charger, optional 2A quick base

Power Supply Jack

Support 5V/500mA external power supply

Communication

RS232

Development Environment

System Environment

Android4.1/SP-UI

Development Environment

SP-SDK

Management Software

SP-PC management suite/MDM
