1. Powerful and first-class configurations
Qual-core: adopts Qualcomm quad-core 1.2GHz processor.
1G: adopts Hynix 1GB DDR2 memory.
6000 times: key connectors passed 6000 times’ plug testing.
2. Firm and reliable, humanization design
1.2M: passed 1.2-meters’ falling test, strong anti-crash ability.
IP65: unique machine and kernel seal design, IP65.
30°: the angle of scanning engine is 30° dip angle, special design makes operation much easier.
Anti-wear: best anti-wear keys, Corning Gorilla Glass screen.
3. World model & variety wireless connections
It supports 3 operators, 4 network types, 8 network bands.
Wifi: double band & industrial Wifi module, can prevent data replace effectively.
Bluetooth: V4.0+ EDR, lower power consumption, better performance.
4. Rich functions
2 navigation: supports GPS & BDS.

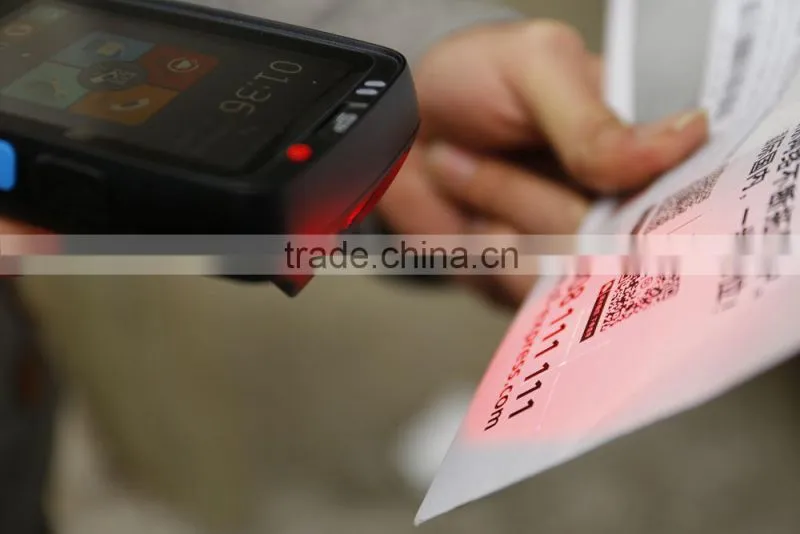

Barcode scanning: excellent barcode scanning engine.
RFID: NXP NFC chip supports 13.56MHz RFID identification.
5. Double batteries
3300mAh: adopts lithium battery with high performance, supports working whole day.
Double batteries: 150mAh secondary battery provides continuous power supply for main battery replacement.

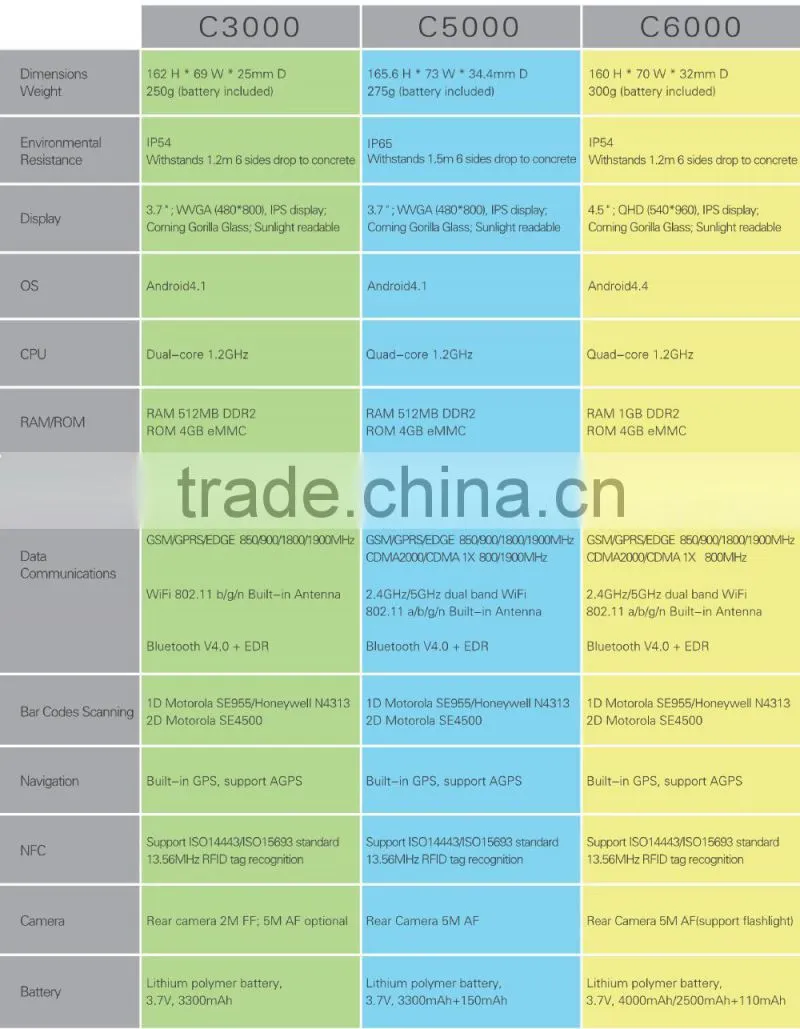

Physical parameters | |
Dimensions |
165.6mm H * 73mm W * 34.4mm D |
Weight |
275g (battery included) |
Operating Temp |
-20°C~60° |
Storage Temp |
-40°C~80° |
Humidity |
95% RH non-condensing |
Drop Test |
1.2-meter drop protection |
Roller Drop Test |
500 times |
Industrial grade |
IP65 |
ESD protection |
±8KV contact discharge; ±12KV air discharge |
System Parameters | |
CPU |
Qualcomm quad-core 1.2GHz |
OS |
Android 4.1 |
RAM/ROM |
ROM 4GB eMMC; RAM 512MB DDR2; Support external micro SD card, 32 GB at most |
Display |
3.7 inches capacitive, multi touch; 480*800, ultra wide Angle IPS display,Corning Gorilla Glass (Compatible with resistive screen) |

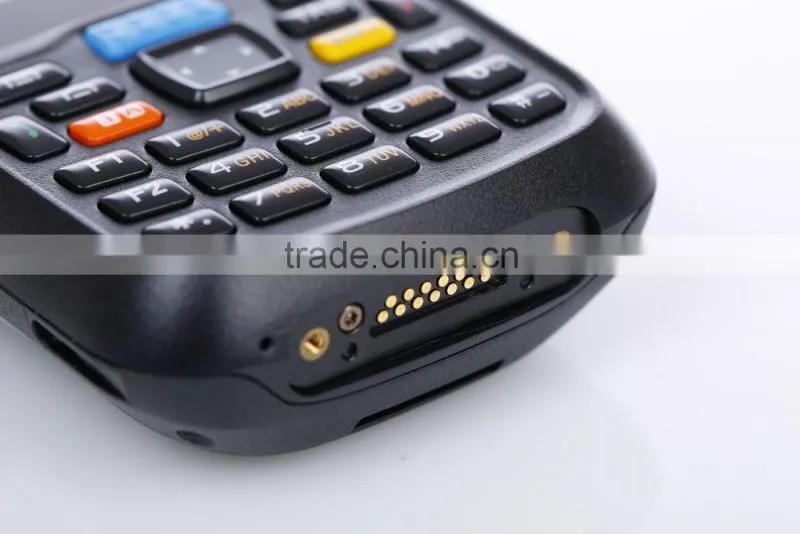

Keypad |
28 physical keys (include Power key, Scan key, Custom key, Navigation key, Number keys, Function keys ); Super abrasion IML overprint keyboard inside the membrane |
Battery |
Lithium polymer battery, 3.7V, 3300mAh+150mAh |
Functional Configuration | |

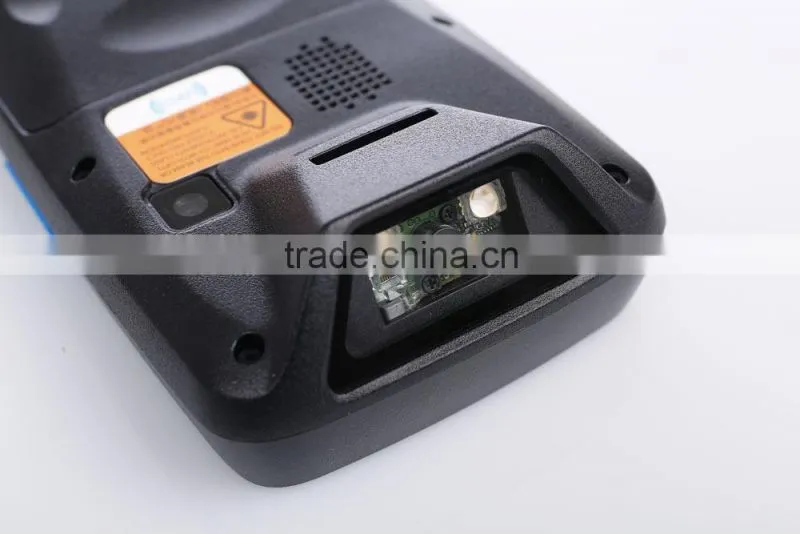

Barcode scanning |
1D Motorola SE955 (other brand optional), 2D Motorola SE4500 |
Camera |
Rear Camera 5M AF |
NFC |
Support ISO14443/ISO15693 standard 13.56MHz RFID tag recognition |
Navigation |
Built-in GPS, support AGPS; BDS second generation optional |
Indicator Light |
System indicator light; Scanning indicator light |
Audios |
Built-in speaker, receiver, microphone, vibrator |
Sensors |
Gravity sensor |
Network Parameters | |
Network Type |
WCDMA/GSM/CDMA2000/CDMA 1X |
Network Spectrum |
WCDMA/HSPA 2100/900MHz; GSM/GPRS/EDGE 850/900/1800/1900MHz; CDMA2000/CDMA 1X 800/1900MHz |
WLAN |
2.4GHz/5GHz dual band WiFi; 802.11 b/g/n Built-in Antenna |
Voice/Data Service |
Support |
WPAN |
BluetoothV4.0+EDR |
External Interface | |
USB Interface |
Micro USB2.0, support USB OTG |
Charger Jack |
Micro USB2.0, 1A quick charger, optional 2A quick base |
Power Supply Jack |
Support 5V/500mA external power supply |
Communication |
RS232 |
Development Environment | |
System Environment |
Android4.1/SP-UI |
Development Environment |
SP-SDK |
Management Software |
SP-PC management suite/MDM |
1. Support google play.
2. Provide ODM/OEM service.
3. 12 month warranty.
4. SDK support.
