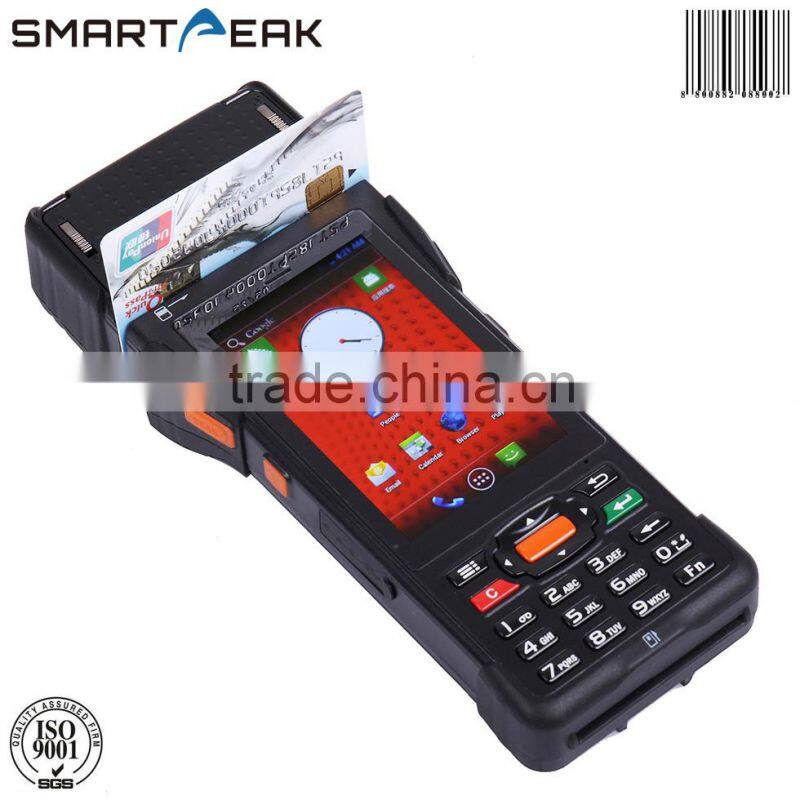

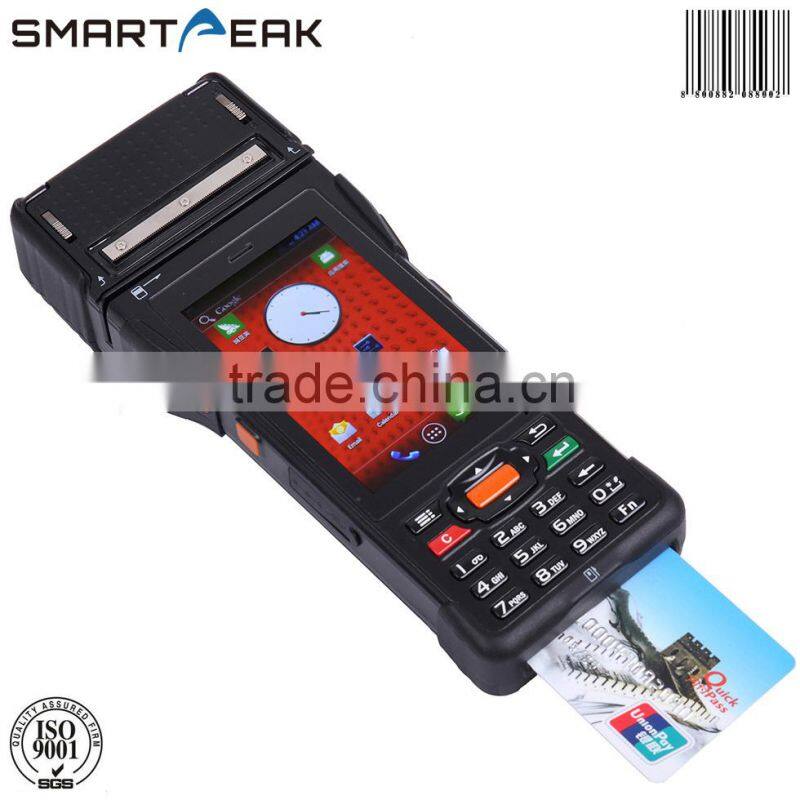

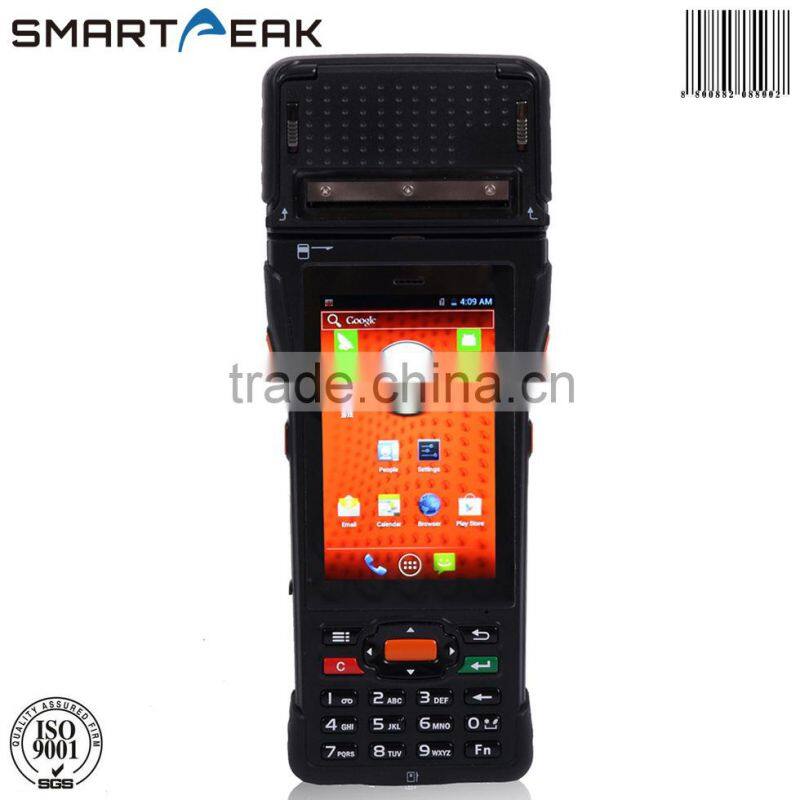

Android Handheld Pos Payment Terminal With Fingerprint

Physical Parameters

Dimensions

226mm H * 89mm/73mm W * 54mm/31mm D

Weight

620g (battery included)

Operating Temp

-20°C ~ 60°C

Storage Temp

-40°C ~ 80°C

Humidity

10%~90% RH non-condensing

Drop Test

1.2-meter drop protection

Roller Drop Test

500 times

IP grade

IP54

ESD protection

±8KV contact discharge; ±15KV air discharge

System Parameters

CPU

Qualcomm quad-core 1.2GHz

OS

Android 4.1

RAM/ROM

ROM 4GB eMMC; RAM 1GB DDR2; Support external micro SD card, 32 GB at most

Display

4.0 inch capacitive, multi touch; 480*800, IPS display

Keypad

25 physical keys (include Android System key, Power key, Scan key, SOS/Custom key, POS Cipher key and Command key)

Battery

Lithium polymer battery, 3000mAh

Functional Configuration

Bar Codes Scanning

1D MINDEO UE966 (other brand optional), 2D Motorola SE4500

Camera

Rear camera 5M AF (support flashlight)

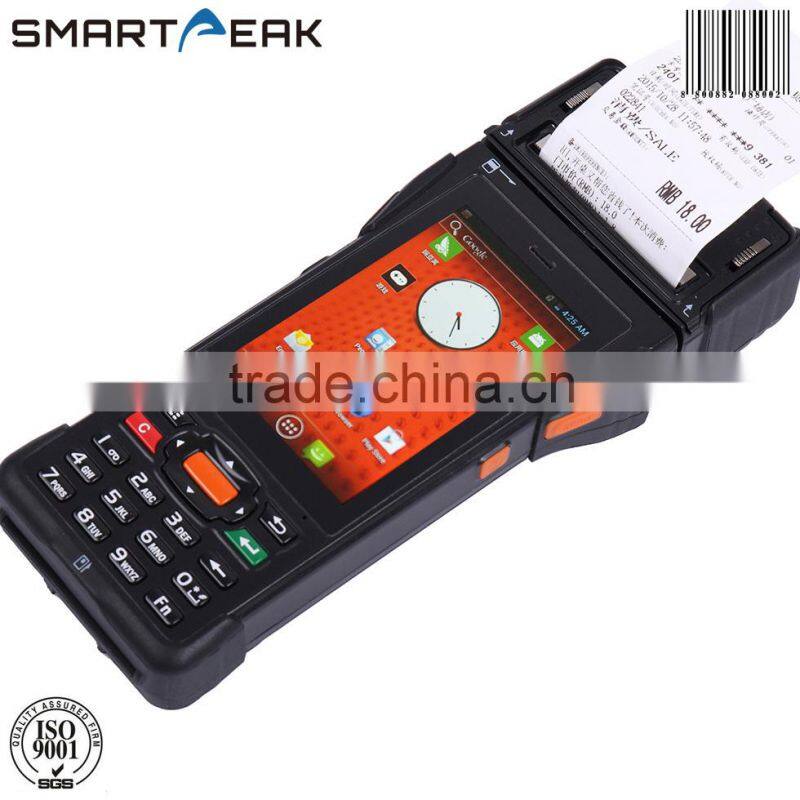

Printer

Built-in 2 inches thermal printer

Navigation

Built-in GPS, support AGPS

Indicator Light

System indicator light, POS indicator light

Audios

Built-in speaker, receiver, microphone, vibrator & headphone jack

Sensors

Gravity sensor; Ambient light sensor; Proximity sensor

E-compass optional; Fingerprint sensor optional

POS

Magnetic Strip Card

Triple track MSR, bi-directional swiping, ISO7811, 7812

IC Card

1 Solt, Support 1.8V/3V/5V, ISO7816, PBOC and EMV

Contactless card

Optional, 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC

SAM Card

1 SAM Solt, ISO7816

Cipher Keyboard

Built-in keypad

Network Parameters

Network Type

WCDMA/GSM/CDMA2000/CDMA 1X

Network Spectrum

WCDMA/HSPA  2100/900MHz; GSM/GPRS/EDGE  850/900/1800/1900MHz; CDMA2000/CDMA 1X  800/1900MHz

WLAN

802.11 a/b/g/n Built-in Antenna

Voice/Data Service

Support

WPAN

Bluetooth V4.0 + EDR

External Interface

USB Interface

Mini_USB2.0, support USB OTG

Charger Jack

DC JACK

Communication

USB

Development Environment

System Environment

Android 4.1/SP-UI

Development Environment

SP-SDK

Management Software

SP-PC management suite/MDM
