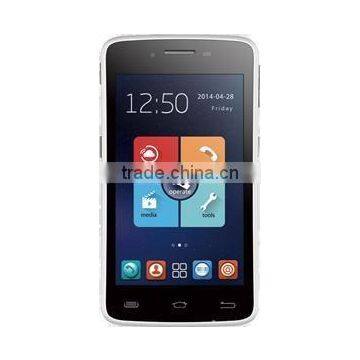

android mobile data collection terminal for hospital

ME2

1. Powerful and first-class configurations

Dual-core: adopts Qualcomm 8625 dual-core 1.2GHz processor.6000 times: key connectors passed 6000 times’ plug testing.

2. Large screen, ergonomic design

5.0 inches: 5.0 inches with Hi-Res.Ergonomic design: antibacterial shell and handhold structure.

3. Commercial level protection, longer product life

It supports dual-band wifi, equipped with 5G wifi commonly used in medical system. 2D scan engine with high performance, scan faster.

4. Double batteries & long battery life

Double batteries: special design provides continuous power supply for battery replacement.

Long battery life: supports continuous work for at least 8 hours.

Physical parameters

Dimensions

150mm H * 80mm W * 12mm D

Weight

260g (battery included)

Operating Temp

-20°C~60°

Storage Temp

-40°C~80°

Humidity

10%-90% RH non-condensing

Drop Test

1.0-meter drop protection

IP grade

IP54

ESD protection

±8KV contact discharge; ±15KV air discharge

System Parameters

CPU

Qualcomm MSM8625 dual-core 1.2GHz

OS

Android 4.1

RAM/ROM

ROM 4GB eMMC; RAM 512MB DDR2; Support external micro SD card, 32 GB at most

Display

5.0 inch capacitive, multi touch; 480*800, IPS display

Keypad

3 touch keys (Android System key), 4 physical keys (include Power key, Scan key, Volume key)

Battery

Lithium polymer battery, 3.7V, 3000mAh+110mAh

Functional Configuration

Bar Codes Scanning

2D Motorola SE4500

Camera

Rear Camera 5M AF (support flashlight)

Indicator Light

System indicator light; Scanning indicator light

Audios

Built-in speaker, microphone, 3.55mm stereo headphone jack, vibrator

Sensors

Gravity sensor

Network Parameters

WLAN

802.11 b/g/n Built-in Antenna

WPAN

BluetoothV4.0+EDR

External Interface

USB Interface

Micro USB2.0, support USB OTG

Charger Jack

Micro USB2.0, 1A quick charger

Power Supply Jack

Pogo Pin, 5V--500mA

Communication

USB, RS232

Development Environment

System Environment

Android 4.1/SP-UI

Development Environment

SP-SDK

Management Software

SP-PC management suite/MDM
