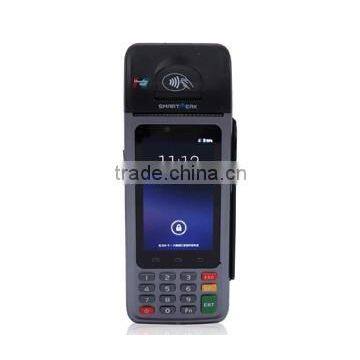

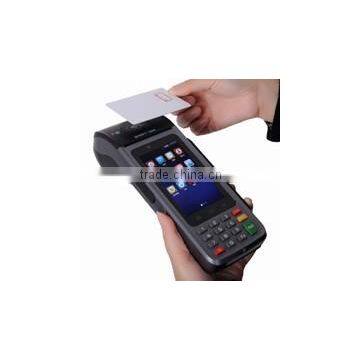

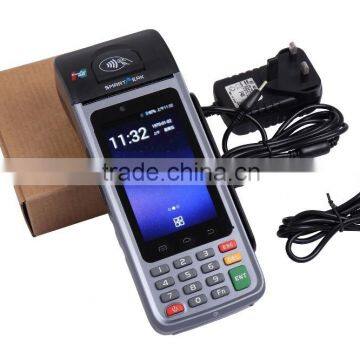

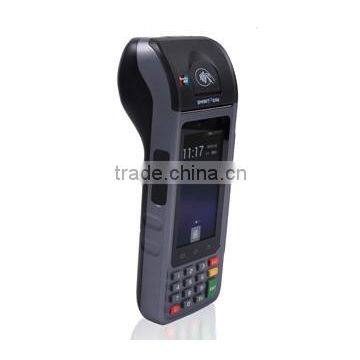

Help CenterRugged Android POS Terminal With Magnetic Card Reader Bulit in Printer 58 mm
Related Products
-
Outdoor Rugged Android Handheld Pos Device With Barcode Scanner and Fingerprint Reader P9000US$ 500 - 800MOQ: 10 Pieces -
Retail Pos Receipt Printer Terminal With Sim CardUS$ 0.01 - 400MOQ: 1 Piece
-
Android Handheld EFT-Pos Terminal With Barcode Scanner and Fingerprint P9000US$ 500 - 800MOQ: 10 Pieces
-
Android Handheld Eft POS With Barcode Scanner and 2" Printer Fingerprint Reader P9000US$ 500 - 800MOQ: 10 Pieces
-
Handheld Android Pos Terminal for Loyalty and Membership P9000US$ 500 - 800MOQ: 10 Pieces
Packaging & Delivery
| Packaging Details: | smartpeak Industrial pda standard package. 10 Sets/Carton; Carton Dimensions:54*28*34mm Net Weight :8KG Gross weight:11.54KG |
| Delivery Detail: | Samples 3-7 working days, bulk order as the case may be. |
android POS terminal with magnetic card reader /RFID 13.56MHZ bulit in printer P9000
| Hardware specitification | |
| operating system | Anriod 4.1 |
| CPU | Qualcomm,quad-core |
| IP | IP54 |
| ROM | 4 GB; |
| communication system | WCDMA/GSM/EVDO;supports data transmission, calling and texting. |
| GPS | support A-GPS GPSONE |
| TF CARD | support 32GB at most |
| USB | MINI USB 2.0 high-speed transmission,USB OTG. Attachments supports: USB, camera accessory. |
| BlueTooth | BT 3.0 |
| WIFI | support CTA |
| keyboard | start up & shut down;menu,return key,SOS,scan button,navigation key,Fn. |
| code keyboard(EPP) | NO.(0~9),cancel,delete,confirm |
| LCD | 4.0 inches,WVGA(800X480) |
| touch screen | compatible with resistive screen |
| backlight adjustment | PWM control, support multistage adjustment |
| RTC | system time(timing by GPS or wireless networking) |
| phonetic matrix | MP3,AAC,WAV,AMR,MIDI |
| video | play files: support common formats,such as mp4,3gp and so on video decode: MPEG4,H.263,H.264 audio decode: MP3, AMR-WB/+, AAC, AAC+™, EAAC+coded format:MEPG4,H.263,H.264 |
| main camera | 5 million pixel;photo format:JPEG;video resolution no less than 720P,flash supports LED lighting; support 720p playback, record 15fps, play30fps |
| RFID | support 14443 A/B protocol;quick pass; |
| fingerprint collection | FPC1011F1,collection area:14mm X 10.64 mm |
| high-speed mute thermal printer print speed:18line/s paper width:58mm paper diameter:30mm |
|
| magnetic card reader | 1 / 2 / 3track allow bi-directional swiping, ISO7812 standard |
| IC card reader | support EMV standard |
| contactless card reader | maximum card read distance longer than 2cm Mastercard Paypass Visa payWave support ISO / IEC 14443 Type A & Type B Mifare® Felica |
| second generation id card module | support |
| bar code scanning | one-dimensional domestic scan head |
| acceleration | support |
| light economizer | support |
| proximity sensor | support |
| compass | support |
| Attachment | |
| battery | 7.4V,no less than 2500MAH |
| AC adapter | INPUT:100 ~ 240 V;OUTPUT:9.5V,1A |
| USB cable | data transmission,do not support charging |
| jack | |
| data | professional connector,support USB and external audio equipment |
| cassette | support 1T card,1SIM card,1PSAM card |
| earphone | support,the same jack with USB |
Standard neutral packing1 PCS each box,10 boxes with one carton box. or as per required for rugged android handheld terminal
Shipping by DHL ,Fedex or TNT.
1.Perfect ODM/OEM service.
OEM/ODM
1: Industrial Android Tablet PC;
2: IP65 7" TFT Touch Screen ;
3: RFID HF/UHF Reader;(Optional)
4: QR Code Scanner; (Optional)
5: Fingerprint Reader 508DPI; (Optional)--Large /Small Fingerprint Module(Default is small fingerprint)
2.12 month warranty.
Warranty and AMC
1 year (12 months upon receipt) with extended AMC on paid service basis, extended AMC will be payable, TBD, case by case by negotiation
Advance Replacement
2% extra of contractual quantity will be provided on FOC basis in local stock of each individual market. In the event of a hardware failure,smartpeakwill provide advance replacement service to Customer in accordance with Warranty, AMC or Support Service clauses to ensure Customers’ services, usability and availability. Local agent will collect faulty items and return to China via shipper for refurbishment, substitution, repairing and updating, etc. All after-sale services will be free of charge within warranty period and will be payable thereafter.
Return to Factory Repair
All claims filed for hardware units that fail (under warranty, not under a maintenance contract) will be repaired or replaced (with refurbished equipment) at the sole discretion of smartpeak. For those customers located outside P.R. China, it should be noted that smartpeak‘srepair center(s) are in China and additional time (shipment days) should be factored into the overall repair time for transit to and from China.
Dead on Arrival (DOA)
For hardware that is considered Dead On Arrival (DOA) within the first thirty (30) days from the shipment date of Product fromsmartpeakmanufacturing facilities, smartpeakwill provide an expedited replacement of the affected field replaceable unit (FRU). A new unit will be made available for shipment from a designated manufacturing facility within three (3) business days of acceptance.
Non-Contracted/Out of Warranty
Additional requirements for units that or not currently under a maintenance contract or no longer under warranty:smartpeakwill confirm the hardware failure and provide a quote to the customer for the repair or replacement of the hardware. The customer is required to provide a P.O. for the repair or replacement costs associated with the hardware failure. Once the P.O. is received, via fax or email,smartpeakwill process the case and send further instructions to the customer or shipment details.
3.Free SDK support.
1.Q:Are you manufacturer?
A:Yes.Our company headquarters is located in SHANGHAI of China, factory in SHANGHAI
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don’t hesitate to contact us.We will be more than happy to serve you.
Contact me
Mob : +86-13951854045
skype :crystal623976
Mail : liulei @smartpeak.cn
Add : Room 1602,No.333 Yishan Road,Xuhui District,Shanghai,200030,China
Smartpeak Your smart choice
Send Inquiry to This Supplier
