65w 220v CDR series compact structure fantech fans

65w 220v CDR series compact structure fantech fans

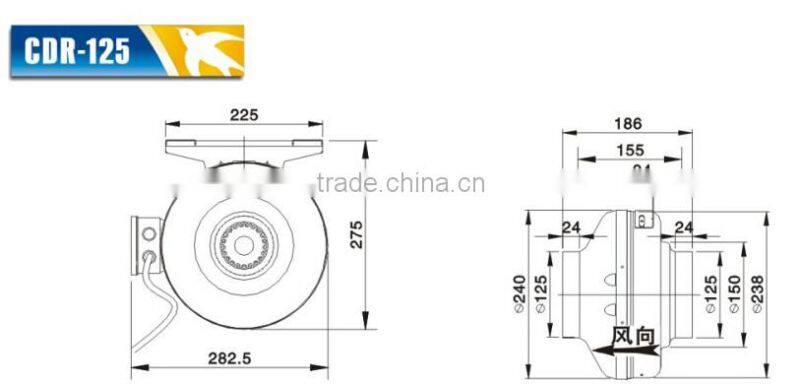

Drawing

Specification

Model Description

1.CDR-External Rotor Coaxial Duct Fans

2.Motor pole number:2—Two poles

3.D—Three-phase motor,E—Single-phase motor

4.The fan then pipe OD:125-two connected pipe diameter of 125mm

5.Type code:A-low noise, C-high flow high pressure

Feature

1,The product have passed the national secondary energy certification;first-class energy conservation.

2,Shell of circular: Adopt high quality 1.0 mm deep drawing steel plate, the surface after spray treatment have fire proof corrosion resistance; Some peers adopt 0.6mm tensile plates, the surface after electroplating treatment.

3,The main: Adopt export-oriented high-performance external rotor motor, data through the computer repeatedly optimization, speed is higher 200-400 rpm than the average, wind naturally would not have said, and use the silent ball bearing , continuous life up to 80,000 hours.

4,Impeller:Use the imported 1.0 mm galvanized sheet, high temperature corrosion resistance superior.

5,Junction boxes: enhanced with a new high-temperature flame-retardant PP injection molding, Beautiful appearance, first-class high temperature resistant,fire prevention, corrosion resistance, it’s safe and reliable

6,Installation feet: The widening type installation feet, better stable performance.

Application

1.Coaxial pipe centrifugal fan is indispensable for modern residential ventilation products, its beautiful shape, can effectively adjust air, remove moisture, dust, odor, make indoor air clean, fresh, has gradually replaced the traditional axial flow fan for exhaust, it makes up for the lack of axial flow fan static pressure phenomenon.

2.Widely used in family, apartments, villas, rooms, shopping malls, hotels, restaurants, movie theaters, dance halls, railway stations and other places.

3.The fan can be also used for all kinds of welding fume, can effectively eliminate the welding when the poisonous and harmful gases, smoke, etc., improve the working environment.

4.CDR Series External Rotor Coaxial Duct Fan is a radial fan. The equipment hascompact structure, high capacity and easy installation. CDR fan can resist high pressure and fit long pipeline operation while operating at low noise.

5.CDR series motor has moisture resistance and can be installed in moist environment. These fans should fit IP44 grade when being installed in the pipeline system. They cannot be used for conveying abrasive powder, soot and similar materials. Its shell is made of prefabricated galvanized steel.

6.CDR series motor is suitable for long-distance transmission of hotels, clubs, supermarkets, storerooms and restrooms, and places which have noise requirement.

7.Operating Environment: Elevation: below 4000m, air humidity: less than 90ºC and ambient temperature: -25ºC~+60ºC for general products, products used in unconventional environment also can be customized.

About our company

 Overview

    Taizhou Hangda Electromechanical Co.,Ltd is located in a beautiful and rich coastal town Wenling Town in Zhejiang Province.Founded in 1985, and experenced 20-plus years ups and downs, the company has been developed as a high-tech enterprise integrating the R&D,manufacturing and sales of motors and fans

    The company attaches great importance to scientific management and technological innovation, and has a team of highly qualified technical staff,meanwhile, it also carry out technical cooperation with University of Shanghai for Technology and Dalian University Of technology, and some other institutions of higher education.

    The products of our company have passed the European CE authentication and the Chinese CCC authentication.The good quality of our products  has won the customer's trusting all over the word. We will make geat efforts ceaselessly, take the customer as the guidance, regard quality as life, innovates strives for the development, wholeheartedly provides the high quality product and the good service for the customer.

 Main Marks:

product certification: CCC,CE

Equipment

Sales network

News

• • Fan industry development status

  • Published:2012-07-30

• • Fans to choose the method

  • Published:2012-07-30

• • The role of the axial fan and centrifugal fan in m...

  • Published:2012-07-30

• • Now a fan products should be how classification

  • Published:2012-07-23

• • the relation between Dc motor speed and power

  • Published:2012-07-23

• • Industrial brushless dc motor

  • Published:2012-07-23

Advantage of the external rotor

Structure: The new outer rotor fan’s impeller is mounted directly on a rotating outer rotor’s excircle , impeller rotates together with the external rotor motor, motor’s main shaft is stationary.

Stability: impeller and external rotor are fasten to the outer rotor’s excircle by soldering or press fitting to form a whole. No secondary assembly errors, greater reliability and stability, less vibration.

Performance: more energy efficient, the national energy efficient products.

Noise: impellers after aerodynamic design again to ensure that the premise of wind capacity, lower noise, high efficiency, energy saving effect is more obvious.

Cooling: The motor is mounted in the middle of the fan impeller, better thermal performance, The motor itself has reached the maximum cooling effect and longer life.

Shape and weight: whole elegant appearance, elaborate design, the fan’s axial length is much shorter, compact structure, saving installation space, the installation more convenient and flexible. Due to optimize the product structure design, small size, lighter weight.
