Home > Electrical & Electronics > Electric Motor > DC Motor > Vertical 500w Kids Bike Motor

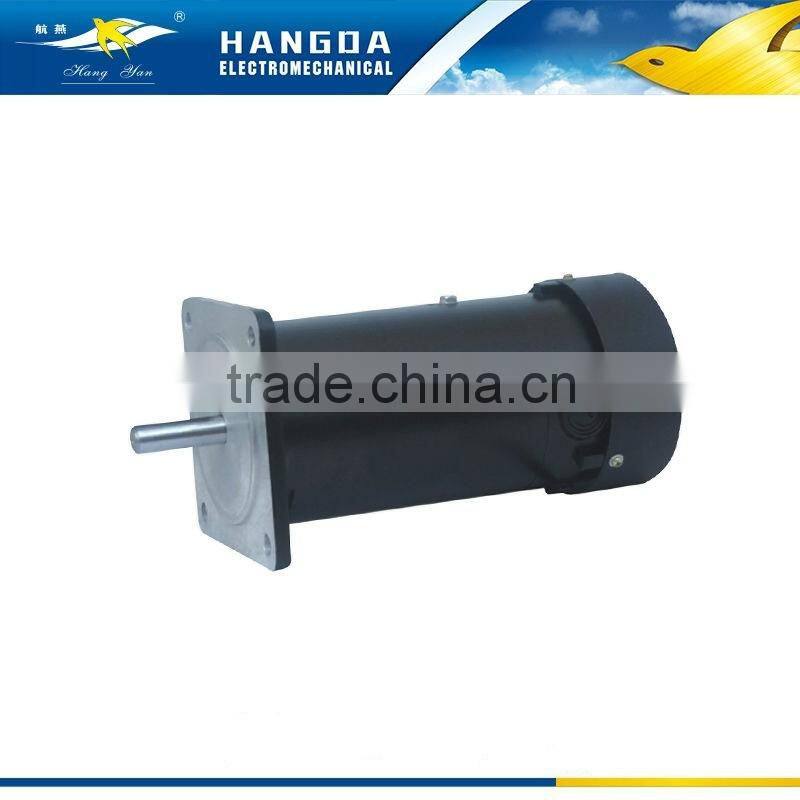

Vertical 500w Kids Bike Motor

Name: Vertical 500w Kids Bike Motor
Brand: hangyan
SKU: 134861477
Availability: InStock

Vertical 500w Kids Bike Motor thumbnail-1

Vertical 500w Kids Bike Motor thumbnail-2

Vertical 500w Kids Bike Motor thumbnail-3

Vertical 500w Kids Bike Motor thumbnail-4

US$ 30 - 80 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

hangyan

Model Number:

113ZYT110-150-1750

Contact Supplier Request Quote Chat Now

Taizhou Hangda Electromechanical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

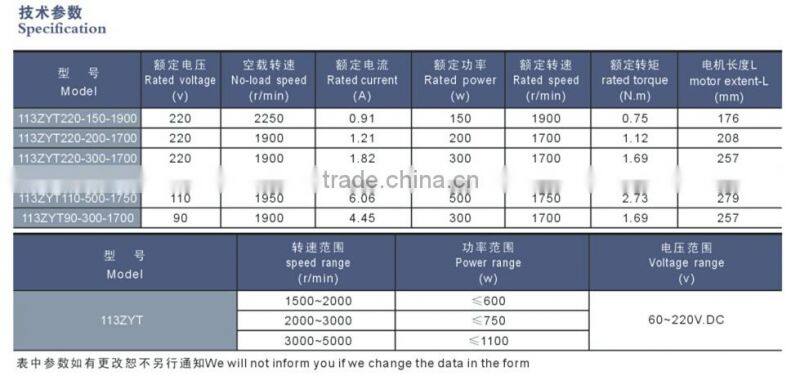

Place of Origin Zhejiang, China

Brand Name hangyan

Model Number 113ZYT110-150-1750

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance

Certification CCC, CE

Type Other, dc motor

Torque 2.73Nm

Construction Permanent Magnet

Commutation Brush

Protect Feature Totally Enclosed

Speed(RPM) 1750rpm

Continuous Current(A) 6.06A

Output Power 500w

Voltage(V) 110v

Efficiency IE 2

Shape description

Brief description:

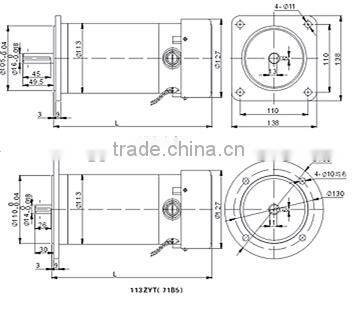

fuselage outside diameter: 82mm, 100mm, 113mm, 123mm, 150mm

If the customer provide parameters,our company can customize products.(voltage:12-250v, power;40-3000 speed:800-6000r/min)

Model Description

113	ZYT	110	-	500	-	1750
1.	2.	3.		4.		5.

1.Body OD:113-fuselage outside diameter of 113mm

2.ZYT:ferrite permanent magnet DC motor

3.Voltage: 110V.DC input

4.Power:500-rated output power of 500W

5.Speed:1750-Rated speed 1750rpm

Overview
These permanent magnet DC motors are widely used for wires, cables, light industry, spinning, papermaking, chemical industry, printing and dyeing, metallurgy, rubber, wiredrawing, extrusion machinery, medical equipment, food processing, printing and packaging and other industries, and can achieve stepless speed regulation by constant torque by being equipped with the speed regulator.

Operating Environment: Elevation: below 4,000m, air humidity: less than 90ºC and ambient temperature: -25ºC~+60ºC for general products, products used in unconventional environment also can be customized.

Because of different customer demands and operating environments, Taizhou Hangda Electromechanical Co., Ltd. can customize permanent magnet DC motor with voltage of 12V-240V and rotating speed of 1,500-5,000 revolutions for customers under the condition of without speed reducer. Besides, our company can customize products when the customer has requirement on batch speed reducer or high temperature and other specific environments.

About our company

The product has passed the European CE authentication and the Chinese CCC authentication.The good quality of our products has won the customer’s trusting all over the world.

Wholeheartedly provides the high quality product and the good service for the customer.
