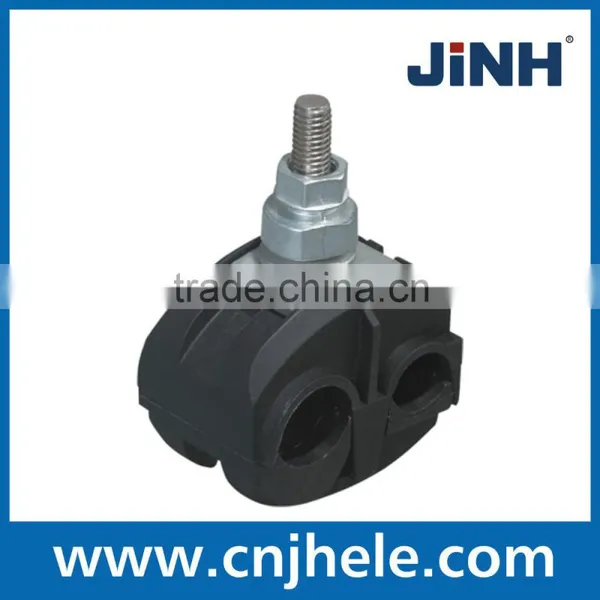

INSULATION PIERCING CONNECTORS/POWER CONNECTOR

INSULATION PIERCING CONNECTORS(cable connector ,cable clamp)

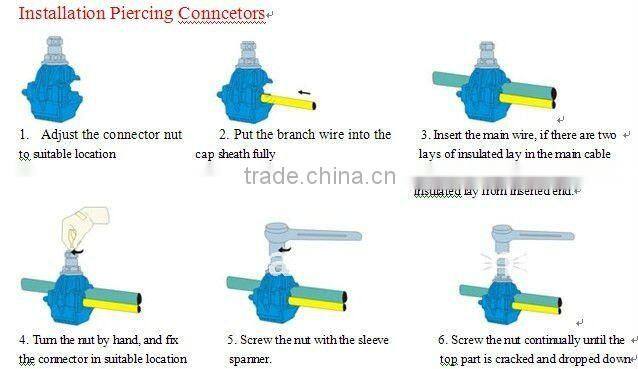

Installation:

1.Adjust the connector nut tu suitable location;

2.Put the branch wire into the cap sheath fully;

3.Insert the main wire,if there are two lays of insulatedlay in the main cable should strip a certain length of the first insulated lay from inserted end;

4.Turn the nut by hand,and  fix the connector in suitable location;

5.screw the nut with sleeve spanner;

6.Screw the nut continually until the top part is cracked and dropped down
