Apply to the construction distribution system, cable connection low voltage aerial insulating cable connection, low volt3 cable conncction, street lamp distribution system etc.
Main line: insulated Cur or Alu. Tap line: insulated Cu or Alu.
Insulating body is made of high strength, Climatic and mechanically resistant matcrial.
Tight bolt is proccssed by corrosion resistance trcated and equipped with tight torque nut so that it can be installed simply, safoly and fast, The stable piercing pressure can assure the cable connection up to a pcrfect effection.
Watertight connector: withstanding 6kV flash over in water.
Sealed waterproof cap of tap line can prevent water come into tap connection conductor.Waterproof soft cap is for option It can be seperated on right side or left side when it is necessary.
| Type | Applicable Conductor Range | Bolt Number | |
| Main Line Section | Branch Line Section | ||

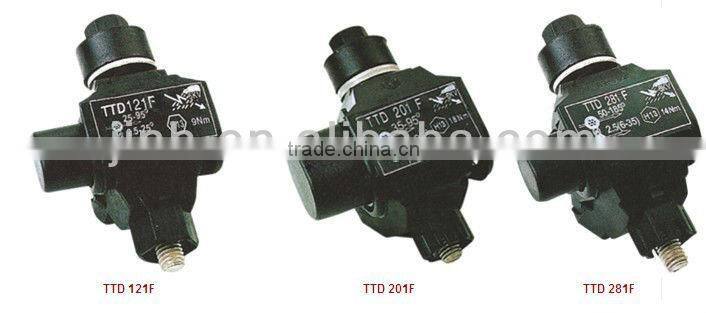

| TTD-121F | 25-95mm² | 2.5-25mm² | 1 |
| TTD-151F | 25-95mm² | 2.5(6-35)mm² | 1 |
| TTD-201F | 35-95mm² | 25-95mm² | 1 |
| TTD-281F | 50-185mm² | 2.5(6-35)mm² | 1 |

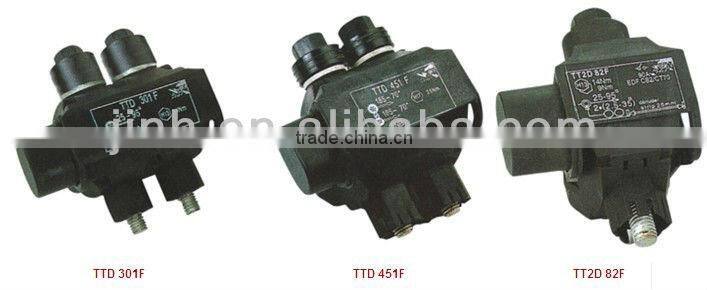

| TTD-301F | 25-95mm² | 25-95mm² | 1 |
| TTD-451F | 195-70mm² | 195-70mm² | 2 |
| TT2D82F | 25-95mm² | 2*(2.5-35)mm² | 1 |
