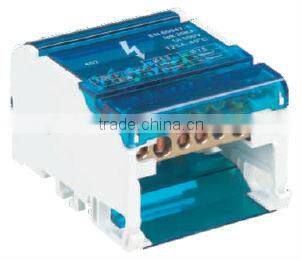

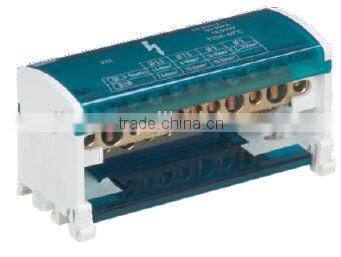

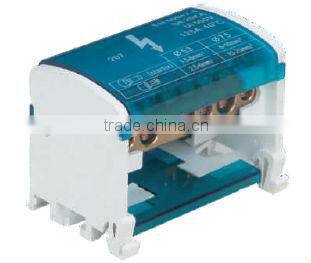

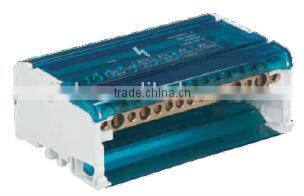

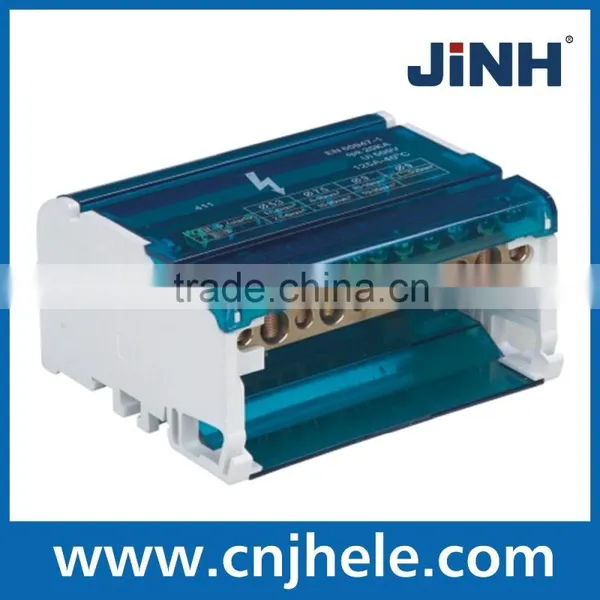

Connection terminal Box(2*7plastic box)
CONNECTION WITH OR WITHOUT FERRULES
SUPPLIED WITH INSULATED BACK PLATE AND TRANSPARENT PROTECTIVE FRONT COVER. SELF-EXTINGUISHING.
960 MOUNTING METHODS
FIX ON DIN-RAIL
ON PLATE WITH 2 SCREWS
WHEN INSTALLING UNDER A FRONT PLATE, A BLANKING PLATE CAN BE CLIPPED ONTO THE FRONT PLATE INSULATION PROTECTIONON EACH BAR
EACH BAR CAN BE LABELLED USING CAB 3TM
CONFORM TO SIANDARD EN60947-1
ICC:20KA PEAK
| Item No. | Bus Bar Spec. | No. Of Bus Bar | Conductors with starfix temules X-section(mm²) |
Cond. wout ferr. X-section(mm²) |
Dimensions(L*W*H)(mm) |
| JH8207 | 5* Φ 5.3mm 2* Φ 7.5mm |
2 | 1.5 to 6 6 to 16 |
2.5 to 6 10 to 25 |
65*42*50 |
| JH8211 | 7* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm |
2 | 1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
100*42*50 |
| JH8215 | 11* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm |
2 | 1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
135*42*50 |
| JH8407 | 5* Φ 5.3mm 2* Φ 7.5mm |
4 | 1.5 to 6 6 to 16 |
2.5 to 6 10 to 25 |
65*85*50 |
| JH8411 | 7* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm |
4 | 1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
100*85*50 |
| JH8415 | 11* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm |
4 | 1.5 to 6 6 to 16 10 to 16 |
2.5 to 6 10 to 25 10 to 35 |
135*85*50 |
