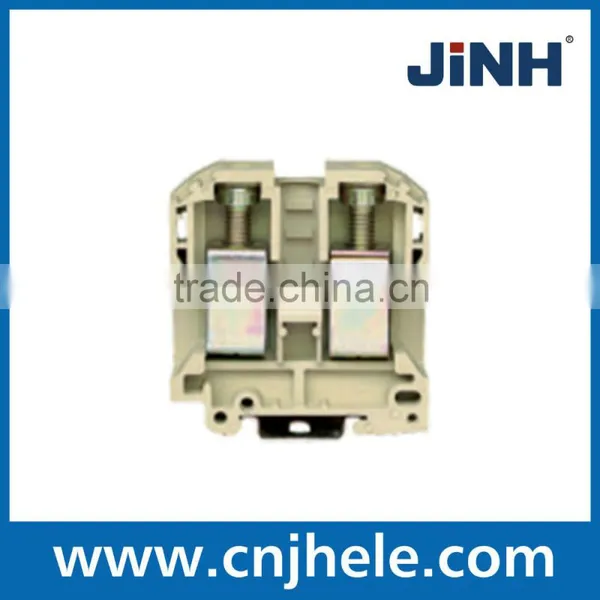

SAK series terminal blocks
SAK/JXB 70/EN
Technical data
Dimensions
Length: 75mm Width: 22mm Height: 87mm
Rating data
Voltage: 800 V Current: 192 A
Conductor cross-section, max. 70 mm2
Additional technical data
Colour of insulating material: beige Flammability class UL 94: V-2
Insulating material: PA 66 No. of clamping points per level: 2
Number of levels: 1 Operating temperature range: -50 °C-100 °C
Type of connection: Screw connection Type of mounting: Snap-on
Approvals
CE, ISO9001, CQC
Accessories
AP70 End and intermediate plate, 1.5 mm, beige, direct mounting
JHEW35 End clamp, for assembly on TH35/7.5 DIN rail
TH35/7.5 DIN rail, aluminum, Length: 1m, Width: 35mm, Height: 7.5 mm
SAK-B1 Marking stand, width: 10mm, thickness: 9.5mm
- Other colors are available
