CASTING FILM MACHINE MANUFACTURE FOR PE
Main Parameters
Web width |
≤ 2100mm |
thickness of film |
0.01-0.5mm |
Material |
LDPE,LLDPE,HDPE,MDPE |
Rolling diameter |
≤φ500(max) |
Capacity |
180-250kg/h |
Running speed |
30m-80m/min |
Size |
22000*3000*2900mm |
Machine Configurations
|
Extruder part |
Screw,Barrel,Hopper,Gearbox, |
Die Head Unit |
The width can be adjustment |
Forming unit |
embossing Roll , silicone roll ,cooling roll,tower roll |
Tower Unit |
Pull roll,rubber roll,Tower roll, Extend roll |
Unwunding Unit |
Automic |
Electric control unit |
Touch Screen ,PLC Control Terminal |
After Service:
² Equipment is subject two one-year warranty period within we are responsible for repair or replacement for any damages not caused by misuse or vandalism .
² Within the warranty period ,we are responsible to provide solutions promptly for any equipment failures to help users recover production in a short time .
² We only charge for the costs in case of equipment repair within three years after the expiration of the warranty period
Design and configuration:
² we will offer our design base on customers’ request finished products, Customers’ should provide their request finished product sample firstly .Any reasonable and profitable suggestions or indications are appreciated
² Guarantee with the reliable quality and good after sold service.One year warranty , all life long service
Technical Support :
We provide :
² Free consulting service to help users with project feasibility studies
² Information of product service for customers
² Equipment designs,installation drawings and production-related information according to actual situation of customers.
² Trade marks,technical performance indicators ,requirements ,suppliers and price reference of raw materials used in production .
² Production process,secretes in extrusion molding and special process parameters of products.
² QC indicators,QC points and quality testing procedures and methods of production .
² Operating technicians upon request.
Others:
² Our company has a production base with output of 5,000 tons of film products annual. You are welcome to visit the field, sampling, proofing, purchasing or business negotiations.
² The device pictures above are just for reference, welcome to visit our plant-site or inquire, thank you.
² The final price depends on your specific needs and configuration to the products, we provide a variety

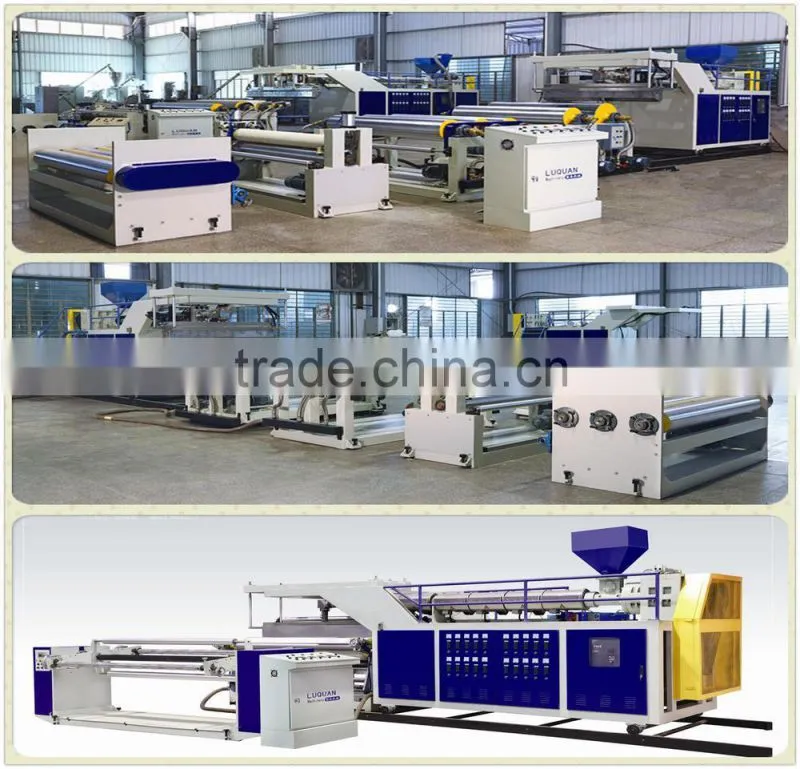

Our product
