Specifications
1. Cast Film Machine2.stable performance
3.strong and durable
4.easy for operating
5.Large production capacity
Second Hand Cast Film Machine
Main Parameters
Web width |
≤ 2100mm |
thickness of film |
0.01-0.5mm |
Material |
LDPE,LLDPE,HDPE,MDPE |
Rolling diameter |
≤φ500(max) |
Capacity |
180-250kg/h |
Running speed |
30m-80m/min |
Size |
22000*3000*2900mm |
Machine Configurations
Extruder part |
Screw,Barrel,Hopper,Gearbox, |
Die Head Unit |
The width can be adjustment |
Forming unit |
embossing Roll , silicone roll ,cooling roll,tower roll |
Tower Unit |
Pull roll,rubber roll,Tower roll, Extend roll |
Unwunding Unit |
Automic |
Electric control unit |
Touch Screen ,PLC Control Terminal |
Design and configuration:
we will offer our design base on customers’ request finished products, Customers’ should provide their request finished product sample firstly .Any reasonable and profitable suggestions or indications are appreciated
Guarantee with the reliable quality and good after sold service.One year warranty , all life long service
Others
1,Our company has a production base with output of 5,000 tons of film products annual. You are welcome to visit the field, sampling, proofing, purchasing or business negotiations.
2,The device pictures above are just for reference, welcome to visit our plant-site or inquire, thank you.
3,The final price depends on your specific needs and configuration to the products, we provide a variety

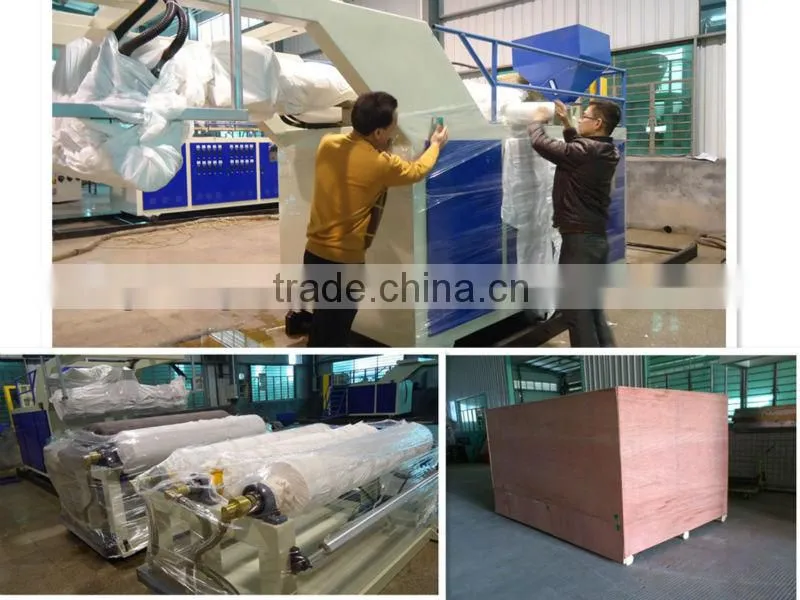

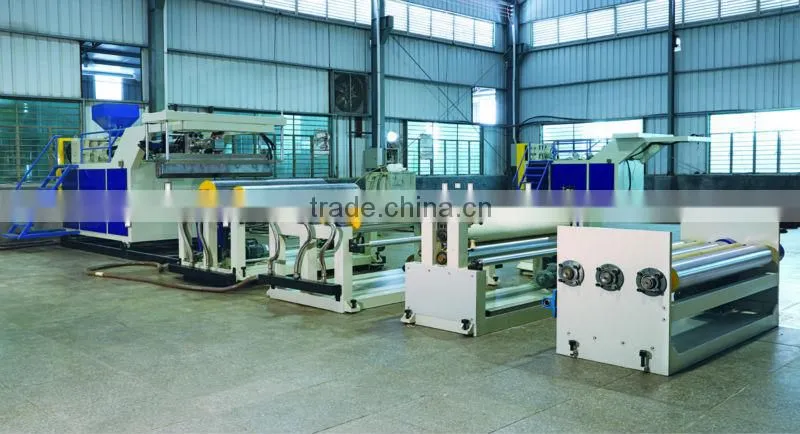

Product Show
Factory Show
Second Hand Cast Film Machine
