Overview:

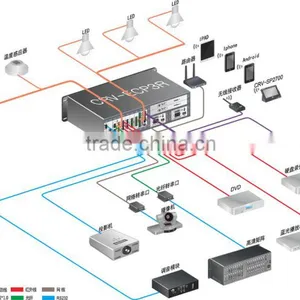

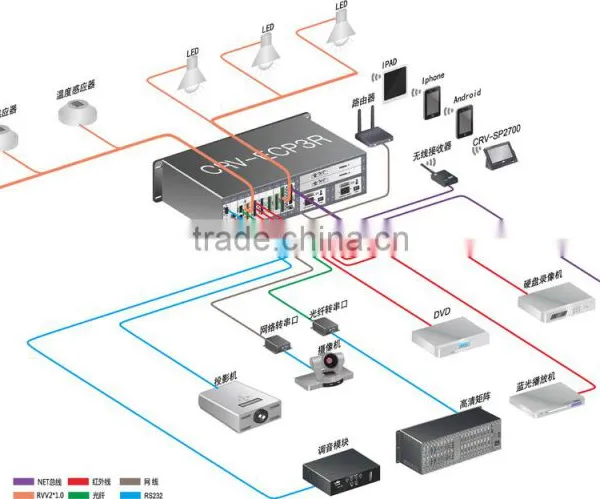

E-CP3 is based on the iOS platform handheld terminal (ipad / iphone)'s network in the control hosts, she support network cascading, to achieve intelligent control network-based, and is comprehensively compatible with the traditional in the control programming control way, owns luxurious bright the appearance of the, her available, is bound to be a new generation of intelligent control host representatives, leading in the control areas of development trend.
Feature:
(1).Using high-grade brushed aluminum panels, high-grade soft silicone buttons, OLED highlighting display;
(2)With a variety of slots, free combine according to the needs of the project;
(3)Support dual-core card, dual power, with the anti-paralysis hot backup function;
(4)Support 3-different touch screen, support IOS system touch screen, support;
(5)Android system touch screen,supports CRV touch screen radio system.
Parameter :
Processor |
|
Storage |
|
|
CPU
|
32-bit ARM microprocessor |
Standard Memory |
8M SDRAM, 8M Flash |
Processor |
210 MIPS, up to 533MIPS |
Extended Memory |
Eexpandable to 32M
|
COM Port |
8 DB9/M port,bidirectional transmission RS232, RS485 and RS422 signals |
||
IR port |
8 5.08mm Phoenix plug port |
||
Input I / O ports |
8 terminal with protection circuit, supports digital input signal 0-5V |
||
CRV-NET Port |
3 terminal module, supports CRV-NET control bus |
||
Weak relay ports |
8 terminals, normally open relay independently rated 1A/5V digital input signal
|
||
Power Line Carrier ports |
1 DB9 / F port, power line carrier communication status can be monitored. Power line carrier without any interface to control
|
||
Package |
Metal chassis, rack-mountable. |
||
Power Specifications |
Wide voltage universal power(110V - 240V) |
||
Software |
Control System Builder,English and Chinese interface |
||
Size |
485L X 236W X 68H(mm),1.5U |
||
Weight |
2.5kg |
||
