Professional modualr HD-multi viewer CBN with VGA,HDMI input cards

Professional modualr HD-multi viewer CBN with VGA,HDMI input cards

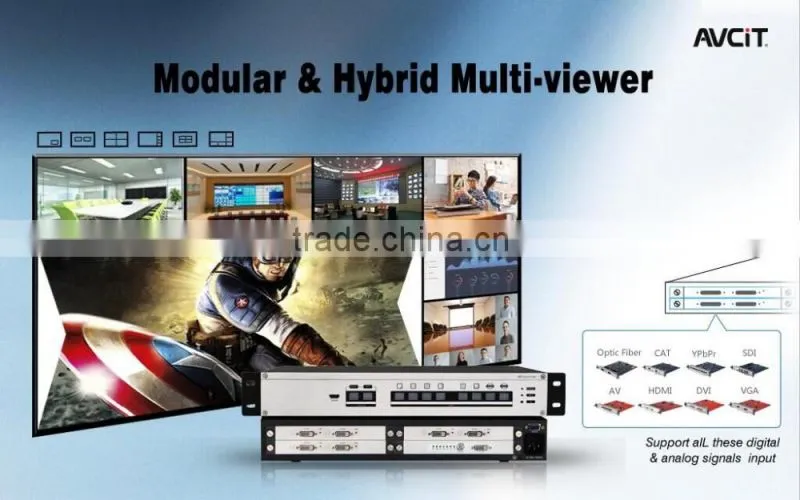

HD-Combiner is the latest master piece of AVCIT, using a dedicated image processing chip, embedded card structure, a two-way card,embedded proprietary operating system, you can achieve multiple HD SD input, output synthesized a high-definition screen , supports a variety of display modes, and can be adjusted according to the needs of users, and can be widely applied in the fields of video conferencing, intelligent traffic management centers,military surveillance systems, call centers and so on.

(1)Use of high-speed FPGA hardware architecture, advanced image processing algorithms, image lag and motion refused to appear jagged, or smoke trailing frame phenomenon, mosaic and so on, to ensure that the output screen high definition.
(2)The maximum analog input ADC sampling frequency of 205Mhz, support UXGA @ 75Hz / WUXGA60Hz.

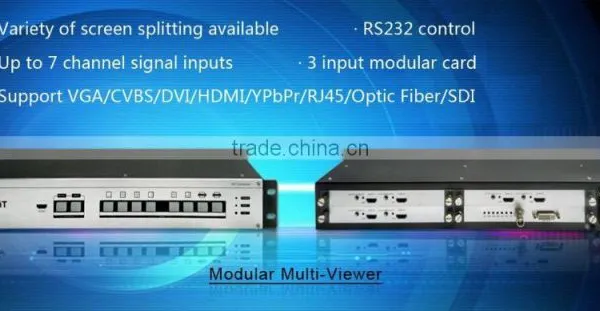

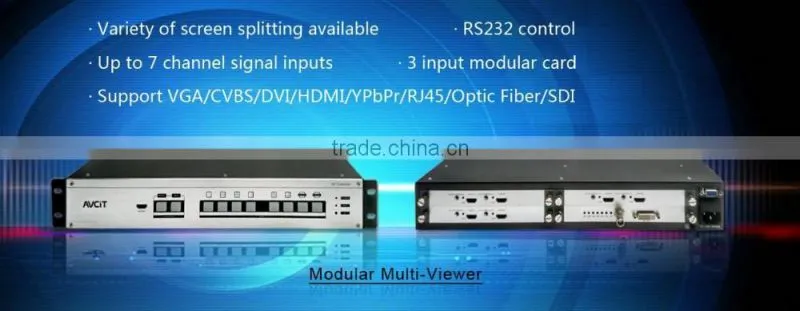

(3)Maximum support seven input, two-way (including a way to monitor the output) output (DVI-I interface, compatible VGA). Supports a variety of display modes: single screen, two split-screen, three-screen, quad, five screens, six split screen.
(4) By supporting software editing, can easily be adjusted a variety of display modes, as well as a variety of shapes of the screen, such as round, oval, pentagon and so on.

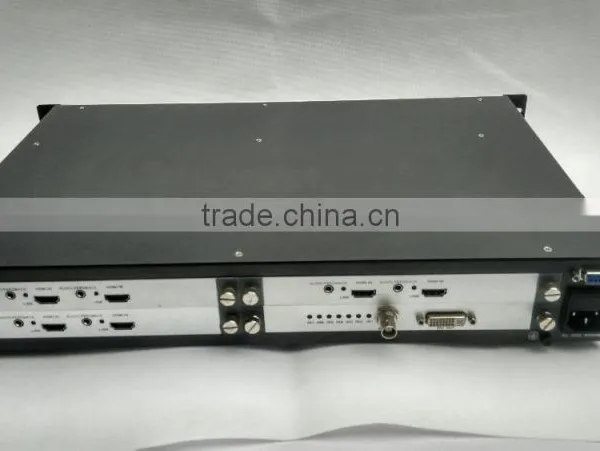

(5) Board structure: maximum support 3 input board an output boards, supports VGA CVBS DVI HDMI color network port fiber SDI input, to display full-screen or multi-window mode output.
(6)HDMI inputs are compatible HDMI1.4 (part), supporting HDCP.
(7)CVBS input adaptive de-interlacing, PAL, NTSC standard automatic identification.
(8)SDI input support 3G / HD / SD-SDI, the rate of 19Mbps ~ 2.97Gbps.
(9)YPbPr Input Built-adaptive 3D / TNR Noise Reduction, De-interlacing to 1080i, integrated automatic contrast control and image edges smoothed.
(10) RJ45 input, support for HDMI 1.3a, maximum support 150 meters transmission distance.
(11)Optical input, single-core optical fiber, maximum support 25km transmission distance.
(12) Support RS232 control, front panel controls, supporting McNair control (CREATIVE) in the control system can be implemented into the control via IPAD Android Tablet PC and RF touch, more humanization, The interface according to the principles of simple,clear,freindly and intelligentialize.
