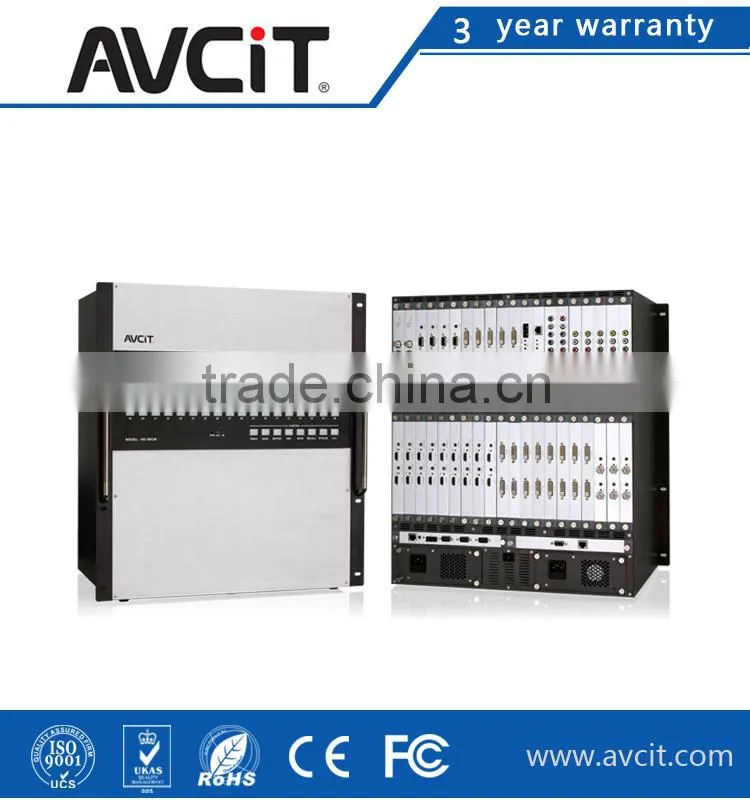

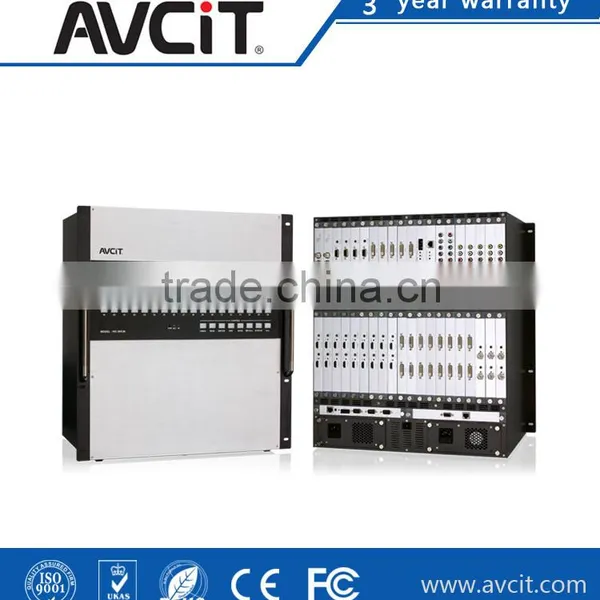

Compatible with HDCP HD 36X36 video switchers support 3D 1080P
Description
HDMI 36x 36 matrix is support 36 input and 36 output, this matrix supports HDMI 1.4, HDCP, and DVI 1.0 protocol. Support for 12-bit color depth all HDTV resolutions including 1080p/60, and PC resolution up to 1920 * 1200. Automatically equalized, and the HDMI cable to the long distance to be compensated, to reduce the required number of additional input signal processing apparatus supports the input of up to 35 meters long term. This matrix can be excellent HDMI video and multi-channel digital audio signals transmitted by HDMI cable to the display device.
Feature
1.Plug-in structure, Max NO. Of input and output channesl:36 , the number of input channels and output channels can be free
to choose;
2. Support HDMI input audio loop out, HDMI output audio separation of functions;
3. Long wire drive capability.
4. Connection prompt function;
5. HDCP-compliant;: such as blue DVD,GAME BOX etc.
6. Audio access functions; VIDEO signal input board, VGA signal input board with audio interface. Can switch video by cooperating with audio output seperation function
7. The EDID support computing capabilities; Automatic calculation of intersection and collection. For EDID information from
arbitrary output monitor's. When one input signal to a plurality of different sub-Resolution of the display device, can automatically obtain the best resolution of the current switching state and the trigger signal source to change the resolution (automatic mode);
8. The EDID support switching function; read back EDID from any output display device and switch to another output display
device.
9. The center control function. After extended the central control, it has programmable central control function,support 3way
programmable RS232 port,3way infrared emission mouth, and can be controlled by iphone, ipad,android.
10 . Power off memory and scene memory functions.can save and use 18 kind of switch state.
11. Expand the control of network:after extended, can use remote network control the switch of matrix except by iphone ,ipad.

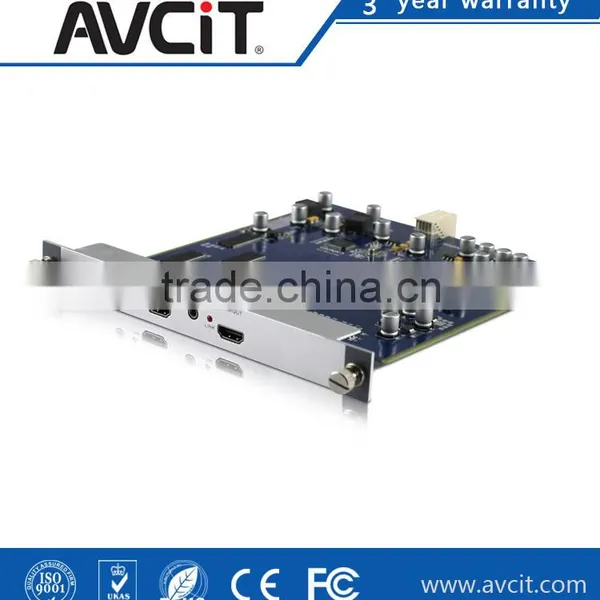

12 . Input and output boards; 2 way of each board when less than 36 ways. 4 ways of each board when more than 36.
13 . Support full HD; compatible with HDTV resolution including 1080p/60 and PC up to 1920*1200
14 . Luxury crystal buttons with LED indicator.
15 . Support HDMI1.4, HDCP and 3.25Gbps rate.
16 . With one-way RS-232 communication port;
17 . Built-in international universal power supply
Customer Service
Supply the continual, high efficiency and speed service to our customers. Establish high quality service brand and perfect service
network.
In order to supply the timely and satisfied service to our customers and to improve the after-sales service, we make promise as following:
We guarantee that we supply the updated and high quality equipment to our customers. Our products can meet your demand fully.
Delivery time: after order confirmation 5-7 working days. If larger order, the delivery time will be longer.
Our products are lifelong maintenance, 1 year guarantee period. The guarantee period begins after it’s used.

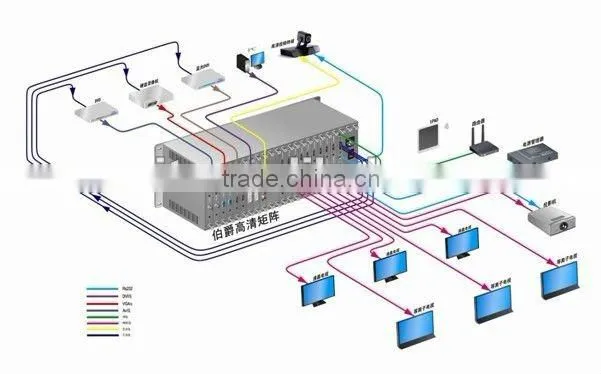

Diagram
