Input Node IP-based Distributed Controlling and Switching System Home AV Solution SPLM-IIM Programmable Central Controller

Input Node IP-based Distributed Controlling and Switching System Home AV Solution SPLM-IIM Programmable Central Controller photo-1
Input Node IP-based Distributed Controlling and Switching System Home AV Solution SPLM-IIM Programmable Central Controller photo-2
Input Node IP-based Distributed Controlling and Switching System Home AV Solution SPLM-IIM Programmable Central Controller photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Avcit
Model Number:
DTB-IN+SPLM-II
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Avcit
Model Number DTB-IN+SPLM-II

Input node DTBIN, IP-based Distributed Controlling and Switching System, Home AV solution, SPLM-IIM Programmable Central Controller

Overview



Input node DTBIN

Input node is for collecting signals and preprocessed data, encoding it into IP streaming, that are to be transmitted over Ethernet. every input node is independent, responsible for collecting and controlling of 1 signal devices. It access to network switch via twisted pair cable.

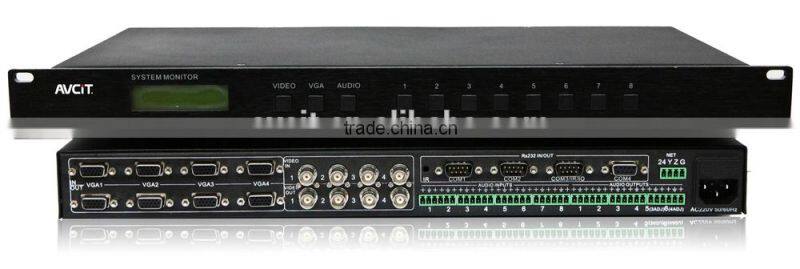

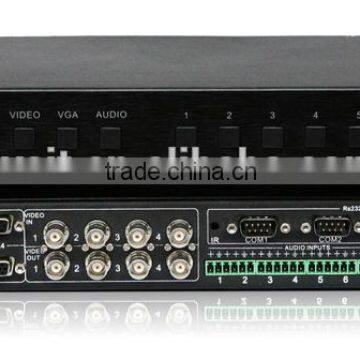

SPLM-II



SPLMII is an central controller with 8*8 matrix switcher functions, VGA 4*4 , composite video 4*4/5*3/6*2/7*1, and audio 8*4 matrix switching system (with audio volume adjustment function), are highly integrated.

It is with 8channel IR port, 4I/O inputs, three programmable serial ports, 32bit embedded microprocessor, support complex logic computing. 3 programmable outputs serial ports, one serial port is for program downloading, one AVCIT net port, widely used in small and medium sized multifunctional meeting rooms, video conferencing systems, medium and large institutions, intelligent home and other occasions.



Features



 Input node DTBIN

l Transmitting all Audio, video, and RS232 signals simply by twisted pair cable.

l Distributed structure, no physical central controller required, every output node is independent, greatly reducing the risk of system operation, and maintenance costs.

l Each output node is with one video signal (HDMI,VGA or SDI) input, bi-directional RS232 port, 3 I/O and 1 IR port

l Output resolution supports 800*600 to 1920*1080 60Hz

l Bidirectional RS232 serial port, realtime device status can be collected for testing, responding and implementing the realtime instructions from data center

l Each output node comes with 3 I/O port, all are with 5V voltage output, available to control high current devices by relays. they also access to variety of sensors, collect data and transmit to data center;

l Deploy high performance logical and coding chips, ensure well running of system, and high-fidelity of audio and video signals;

l Streaming data from network switch will be decoded into high quality HDMI,VGA or SDI video signals;



SPLM-II



1. 32-bit embedded processor, frequency up to 533MHZ;



2. Highly integrated co-processor chip, with fine layout, enable the system running to be stably and efficient;



3. 8 MB of memory and 16 MB flash memory;



4. Programmable control platform, interactive control structure;



5. VGA 4*4 matrix switcher functions, VGA 15HDF interface



6. Optional 4*4/5*3/6*2/7*1 composite video matrix switcher functions, BNC interface;



7. Audio 8*4 matrix switching, 3-bit phoenix interface;



Parameter



Application

Exhibition hall

Command center for government/military

Club, ballroom

Smart house

Smart campus

Number of video channel 1 channel

Video specificationHDMI, DVI, VGA, SDI

The maximum levelsT.M.D.S 3.3V

Output levelT.M.D.S 2.9V
