With IR + RS232 over CAT 2G IP-based video wall controller

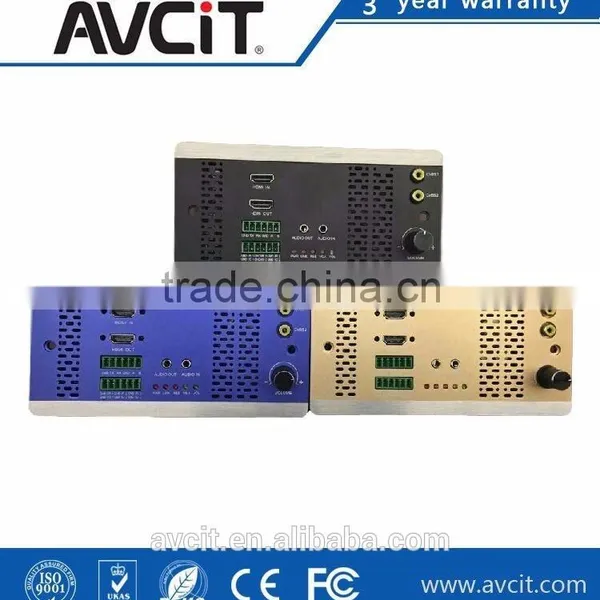

DTB-HDMI-II  is upgrading of first generation of AVCIT's IP based system, it is for collecting signals and preprocessed data, encoding it into IP streaming, that are to be transmitted over Ethernet. The greatest upgrading is as follows:

the input node and output node is simply integrated in just one, Live video preview feature, users can preview all videos, simply drag any video to any displays, get a experience of "what you see is what you get“

More compact, with a looking of a standard wall plate, easy for in stallation.

Application:

1. HD matrix switch-transmit, HDMI+IR+RS232
2. Central controller
3. Video conference
4. Edge blender
5. Video wall controller
6. Multi-viewer

Feature

• Scalable, Simply add one transmitter per source or one receiver for each new display
• Max 16 windows overlapping on each physical displays
• Bi-directional transmission of video, make sure status of all touch panels to be synchronous
• No server required, input node can also be output node, each node has independent IP, no conflict
• Permission management feature, Administrator can preset permission for unlimited sub-user;
• Support IOS / win7 / Android and other operating systems
• Live video preview feature, users can preview all videos, simply drag any video to any displays, get a experience of "what you see is what you get“
• Auto-switching among multiple Data Center, hot-backup feature.
• Bi-directional IR/RS232, Live status of volume,dimming and etc. will be dislayed on touch panels, even the operation is from physical button
• Video Wall Controller feature, video can be zoomed in/out and overlapped anywhere at any sizes
• Timing power on/off feature
• Auto backup and recovery feature.
• Independent audio transmission and outputing;
• 2 composite video output for live monitoring
• Simply finger touch control
• cabling by twisted pair only"
• RJ45 interface comes with POE function
• Each input and output node is with 1 video signal(HDMI, VGA or SDI),1 RS232, 3 I/O ports and 3 IR ports
• Input resolution supports 800*600 to 1920*1080 60Hz
• Optional feature of Video Wall Controller, Edge blender,available by IP based system
• Transmitting distance <100m, over CAT5e/6

1. Why work with us?

    1). Rich experience of working with foreign customers.

    2). All product we providing are the best quality, comply with CE, FCC and RoHS

    3). Rapid and timely service, 24 hours available.

    4). 3 year guarantee for all our product.

    5). World-leading tech, strong technical support team.

    6). A company with CE/RoHS

2. How to order?

It is very easy to order if you can determine which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
